Doosan DNM750II Vertical machining center
| Manufacturer | Doosan |
|---|---|
| Model | DNM750II |
| Year | 2024 |
| Location | United Kingdom
|
This Doosan DNM750II vertical machining center, manufactured in 2024, is a robust and versatile machine designed for precision machining tasks. It features a FANUC i Series control system, providing advanced CNC capabilities for efficient and accurate operation. The machine's dimensions are 4953 mm in length, 2986 mm in width, and 3170 mm in height, with a substantial net weight of 13,500 kg, indicating a stable and rigid construction suitable for heavy-duty machining.
The machining center is equipped with a spindle motor delivering 18.5 kW of power and a maximum spindle speed of 12,000 rpm, allowing for a wide range of cutting applications. The machine's rapid feed rates are 30 m/min in the X and Y axes and 24 m/min in the Z axis, facilitating quick and precise movements. The table measures 1630 mm by 760 mm and can support a maximum workpiece weight of 1500 kg, accommodating large and heavy parts.
Tool management is efficient with a 30-tool automatic tool changer (ATC) featuring BT40 tool holders. The maximum tool diameter is 125 mm when an adjacent pocket is empty, with a maximum tool length of 300 mm and a maximum tool weight of 8 kg. Tool change time is approximately 3.7 seconds from chip to chip, minimizing downtime during operations.

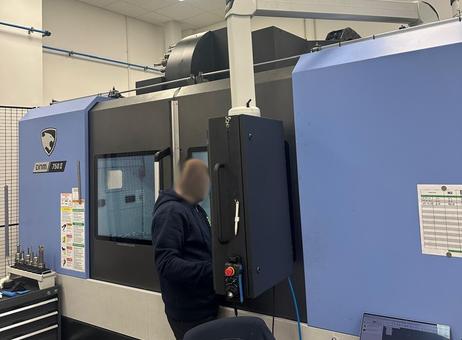

The machine's travel distances are 1630 mm along the X-axis, 762 mm along the Y-axis, and 650 mm along the Z-axis, with a minimum to maximum spindle height clearance ranging from 150 mm to 800 mm. The control panel is mounted on an arm and includes an emergency stop button for safety. The machine is housed indoors within a clean workshop environment, ensuring good maintenance conditions.

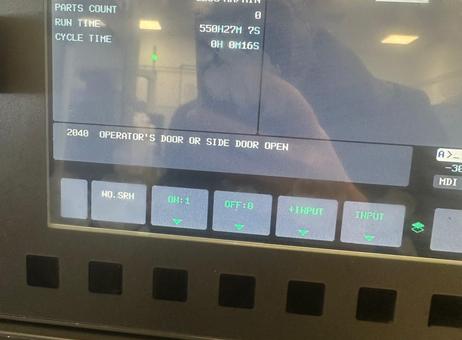

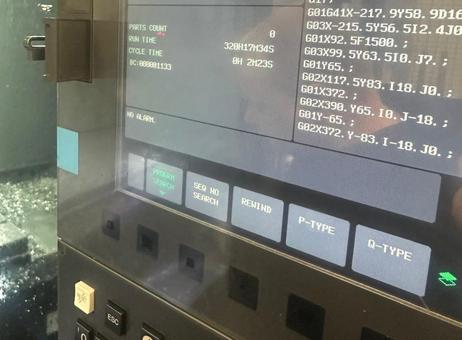

Electrical specifications observed include a rated capacity of 37.50 kVA, full load current of 52.17 A, and interruption and short circuit capacities of 5 kA and 10 kA respectively. The machine's control interface displays operational parameters such as run times and cycle times, indicating active monitoring capabilities. Overall, this Doosan DNM750II vertical machining center is well-suited for demanding machining applications requiring precision, power, and flexibility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Control
FANUC i Series
Machine Dimensions
4953 x 2986 x 3170mm
Machine Weight
13500kg
Maximum Tool Diameter
125mm (Empty Adjacent Pocket)
Maximum Tool Length
300mm
Maximum Tool Weight
8kg
Maximum workpiece weight
1500kg
Min - Max Height under Spindle
150 ~ 800mm
Rapid Feedrates
XYZ: 30 x 30 x 24m/minute
Spindle Motor Power
18.5kW
Spindle Speed
12000rpm
Table Size
1630 x 760 mm
Tool Change Capacity
30 ATC
Tool Change Time (Chip to Chip)
3.7 seconds
Tool Size
BT40
Traverses XYZ
1630 x 762 x 650mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the table size of this Doosan DNM750II?
This Doosan DNM750II vertical machining center features a table size of 1630 x 760 mm.
What is the table load capacity of the machine?
The unit has a table load capacity of 1500 kgs.
What are the XYZ traverse dimensions of this Doosan DNM750II?
This Doosan DNM750II offers traverses in XYZ dimensions of 1630 x 762 x 650 mm.
What are the rapid feed rates of the machine?
The equipment has rapid feed rates of 30 m/min.
What is the spindle power of this Doosan DNM750II?
This Doosan DNM750II is equipped with a spindle power of 18.5 kW.
What is the maximum spindle speed of the machine?
The spindle speed of this unit reaches up to 12,000 rpm.
How many stations does the automatic tool changer of this Doosan DNM750II have?
This Doosan DNM750II includes a 30-station automatic tool changer (ATC).
What is the spindle taper of the machine?
The spindle taper of this equipment is BT40.
Does this Doosan DNM750II have through spindle coolant?
This Doosan DNM750II features through spindle coolant.
Is there a swarf conveyor included with the machine?
The unit is equipped with a swarf conveyor.
What control system does this Doosan DNM750II use?
This Doosan DNM750II is controlled by a Fanuc i series control system.
What year was this machine manufactured?
The machine is from the year 2024.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
