| Manufacturer | DN SOLUTIONS |
|---|---|
| Model | MYNX 6500 II |
| Year | 2022 |
| Location | Germany
|

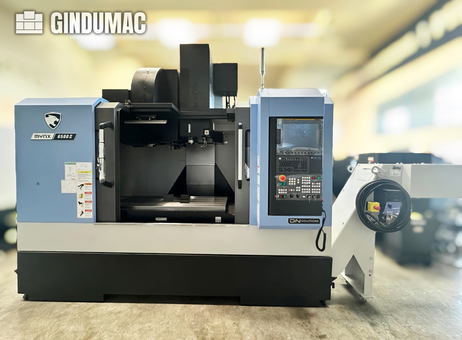

DN SOLUTIONS MYNX 6500 II vertical machining centre (2022) — compact summary and key specifications
This is a 3-axis DN SOLUTIONS MYNX 6500 II vertical machining centre manufactured in 2022. It is described as an “as new, showroom model” and is designed for heavy-duty milling applications with box guideways on all axes for increased rigidity and vibration damping.
Control
- Control brand/model: FANUC 0i‑F
Axes and travel
- Number of axes: 3
- X-axis travel: 1,270 mm
- Y-axis travel: 670 mm
- Z-axis travel: 625 mm
Table and workpiece
- Table size: 1,400 x 670 mm
- Maximum workpiece weight: 625 kg
Spindle and tooling
- Spindle power: 15 kW
- Spindle speed: 12,000 RPM
- Spindle taper: ISO 40
- Tool magazine capacity: 40 stations
- Memory: 400 tool offset memory slots
Performance and motion
- Rapid traverse (X/Y/Z): 30 / 30 / 24 m/min
- Guideway type: Box guideways on all axes (for enhanced rigidity)
Cooling, safety and features
- Milling spindle cooling
- Load monitoring; auto shut-off
Machine footprint and dimensions
- Machine height: 3,107 mm (maximum height when Z-axis fully extended also listed as 3,107 mm)
- Machine length: 2,692 mm
- Machine width: 3,350 mm
Notes
- Descriptions such as “highly stable design,” “maximum rigidity,” and “high-performance spindle with high torque characteristics” are provided in the original specification. No additional condition testing, runtime, or service history information is included here. For further details, inspection, or to confirm operational status and included accessories, please request additional information.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis DN SOLUTIONS MYNX 6500 II was manufactured in 2022. It features a table size of 1,400 x 670 mm and a rapid traverse of 30 m/min in both X and Y axes. The machine is designed for heavy-duty milling with box guideways for maximum rigidity. If you are looking to get high-quality milling capabilities, consider the DN SOLUTIONS MYNX 6500 II vertical machining centre we have for sale. Contact us for further details.
Control Unit
Control Brand: FANUC
Control Model: 0i-F
Dimensions
Machine Height: 3107 mm
Machine Length: 2692 mm
Machine Width: 3350 mm
Movement
Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 670 mm
Z-axis Travel: 625 mm
Technical Specification
Spindle Power: 15 kW
Spindle Speed: 12000 RPM
Taper Size: ISO 40
Additional Information
As new, showroom model
Table size: 1,400 x 670 mm
Rapid traverse (X/Y/Z): 30 / 30 / 24 m/min
Tool magazine capacity: 40 stations
Maximum workpiece weight: 625 kg
Guideway type: Box guideways on all axes
Memory: 400 tool offset memory slots
Cooling system: Milling spindle cooling
Stability/construction: Highly stable design for heavy-duty milling; box guideways provide maximum rigidity and vibration damping
Spindle: High-performance spindle with high torque characteristics
Automation/Safety (machine features): Load monitoring; Auto shut-off
Maximum height when the Z-axis is fully extended: 3107mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
