Contact us to receive an offer.
| Manufacturer | DN Solutions |
|---|---|
| Model | DNM 5705 |
| Year | 2023 |
| Location | Slovenia
|
The DN Solutions DNM 5705 is a vertical machining center designed for precision and efficiency in industrial applications. It features a robust working envelope with X, Y, and Z axis strokes of 1050 mm, 570 mm, and 510 mm respectively, allowing for versatile machining capabilities. The spindle-to-table surface distance ranges from 150 mm to 660 mm, accommodating a variety of part sizes.
The machine is equipped with a spacious worktable measuring 1300 mm in length and 570 mm in width, supporting a maximum part weight of up to 1000 kg. This capacity enables the machining of relatively heavy components with stability.
The spindle offers a maximum speed range from 8,000 to 12,000 rpm with an ISO#40 7/24 taper, delivering a maximum torque of 117.8 Nm. The spindle motor power is rated at 18.5 kW, providing substantial power for demanding machining operations. Rapid traverse rates are 36 m/min for both X and Y axes and 30 m/min for the Z axis, while cutting feed rates range from 1 to 15,000 mm/min across all axes.
Tool management is efficient with a 24-pocket automatic tool changer (ATC) compatible with BT40 tool shanks. The tool changer supports tools up to 80 mm in diameter, with a maximum diameter of 125 mm allowed next to an empty space, tool lengths up to 300 mm, and tool weights up to 8 kg. Tool change times are rapid, with 1.2 seconds for tool-to-tool and 3.2 seconds for chip-to-chip changes.
The machine's feed motors deliver 1.8 kW on the X and Y axes and 3 kW on the Z axis. It requires a 30 kVA electrical power supply and includes a coolant tank with a 380-liter capacity.
Physically, the machine measures 3110 mm in length, 2413 mm in width, and 2985 mm in height, with a total weight of 6500 kg. It is controlled via a FANUC OiPLUS control system, known for reliability and user-friendly operation.

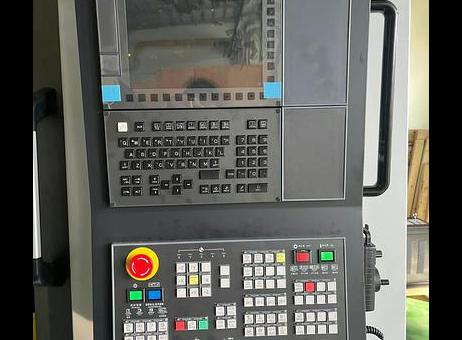

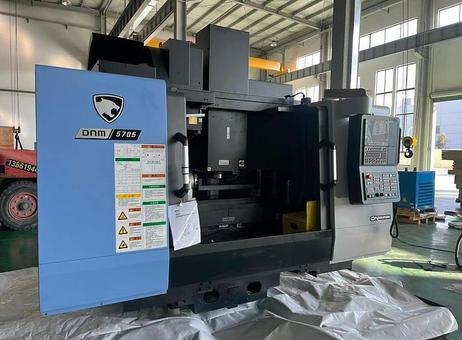

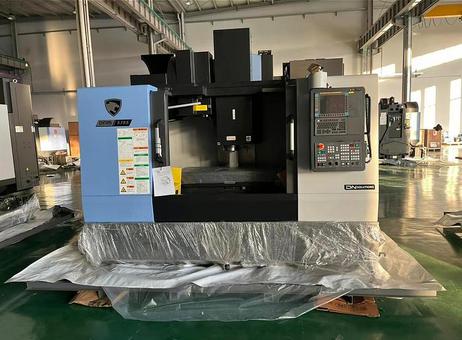

Visually, the machine presents a clean and well-maintained appearance, featuring an enclosed machining area with visible spindle and worktable. The control panel, located on the right side, includes a screen and multiple buttons and knobs, bearing DN Solutions branding along with FANUC Series labeling. Safety and operational instruction labels are affixed to the left side of the machine. Protective plastic wrapping is partially present, indicating careful handling and preservation of the equipment's condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Stroke:
X-axis: 1050 mm
Y-axis: 570 mm
Z-axis: 510 mm
SPINDLE TO TABLE SURFACE 150 - 660 mm
Table
Table size: 1300 x 570 mm
Table loading capacity: 1000 kg
Spindle
Max. spindle speed: 8.000 - 12.000 rpm
Taper Type ISO#40 7/24
Max. spindle torque 117,8 Nm
Feed rate
Rapid traverse （X/Y/Zaxis） 36/36/30 m/min
Cutting feed rate (all axes) 1-15,000 mm/min
ATC
Tool shank type: BT40
Tool storage capacity ea. 24
Max. tool diameter mm ￠80
Max. tool diameter adjacent to empty space ￠125 mm
Max. tool length 300 mm
Max. tool weight 8 kg
TOOL SELECT TYPE
Tool Change time(tool-to-tool) 1,2 s
Tool Change time(chip-to-chip) 3,2 s
Motor
Spindle motor power 11/18.5 kW
Feed motor (X/Y/Z) 1.8/1.8/3 kW
Power source
Electrical power supply (Rated capacity) 30 kVA
Fuel tank capacity
Coolant tank capacity 380 l
Machine size
Machine dimensions(L x W x H): 3110 x2413x2985 mm
Machine weight: 6500 kg
Control: FANUC OiPLUS
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What are the working hours of this DN Solutions DNM 5705?
This DN Solutions DNM 5705 Machining center is brand new with 0 working hours.
Is this DN Solutions DNM 5705 currently under power?
This DN Solutions DNM 5705 Machining center is under power, allowing for a working video to be made.
When was this DN Solutions DNM 5705 manufactured?
This DN Solutions DNM 5705 Machining center was manufactured in the year 2023.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
