Contact us to receive an offer.
| Manufacturer | DMG MORI |
|---|---|
| Model | EcoTurn 310 |
| Year | 2014 |
| Location | Switzerland
|

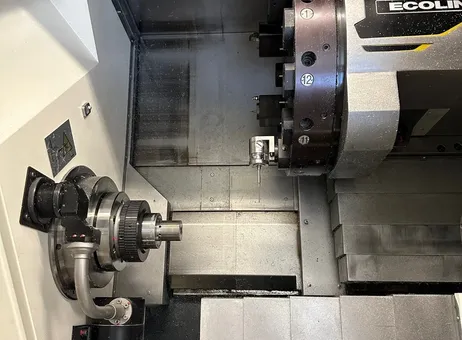

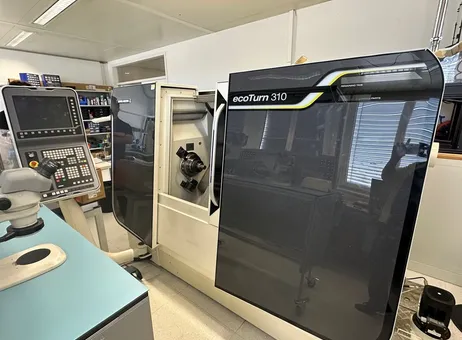

CNC lathe with three axes and a 12-position turret. The turret is specified for driven tools, with 12 driven-tool positions. The machine has a maximum turning diameter of 200 mm, a swing diameter over the bed of 330 mm and a swing diameter over the carriage of 260 mm. Bar passage is 51 mm.
Travel and traverse: the longitudinal Z-axis travel is 455 mm, and the longitudinal X-axis travel is 182.5 mm. Rapid traverse is specified at 30 m/min for both the X and Z axes.
Spindle and tooling details include a VDI 30 spindle nose and a Morse taper of 4 CM. Spindle speed is listed as 4500 rpm, with stepless speed control up to 5000 rpm.

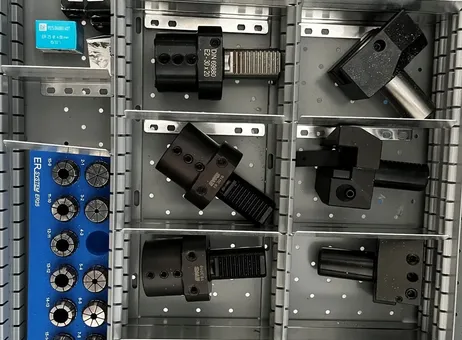

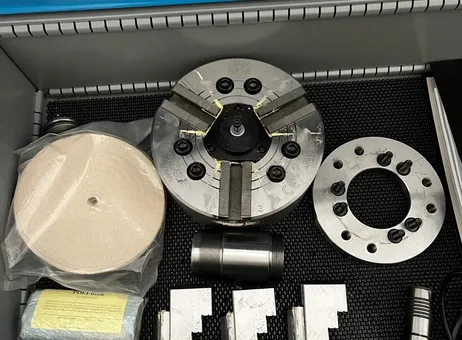

The listed accessories are a 3-jaw chuck, a set of REGO-FIX ER25 collets, a lamp, a coolant system and a set of VDI 30 toolholders. The description does not provide information about the machine’s operating condition.
The stated power requirement is 21 kVA, and the approximate machine weight is 3400 kg. Overall dimensions are 4400 mm long, 2400 mm wide and 2100 mm high. These measurements and specifications are presented as listed; no additional performance, condition or service-history information is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Number of axis total 3
Swing diameter over bed 330 mm
Swing diameter over carriage 260 mm
Max. turning diameter 200 mm
Bar passage 51 mm
Travels:
Longitudinal travel (Z-axis) 455 mm
Longitudinal travel (X-axis) 182.5 mm
Rapid traverse X 30 m/min
Rapid traverse Z 30 m/min
Turret slide:
Number of positions 12
Driven tools turret 12
Spindle speeds 4500 t/min
Spindle nose:
Spindle nose: VDI 30
Spindle speeds:
stepless
up to 5000 t/min
Morse taper 4 CM
Total power required 21 kVA
Machine's weight about 3400 kg
Overall dimensions machine:
Length 4400 mm
Width 2400 mm
Height 2100 mm
Various accessories:
3-jaw chuck
Set of collets REGO-FIX ER25
Lamp
Coolant system
Set of toolholders VDI 30
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 256 |
| Last activity | Oct. 28, 2026 |
