| Manufacturer | DMG |
|---|---|
| Model | Gildemeister NEF 600 V1 |
| Year | 2006 |
| Location | Germany
|

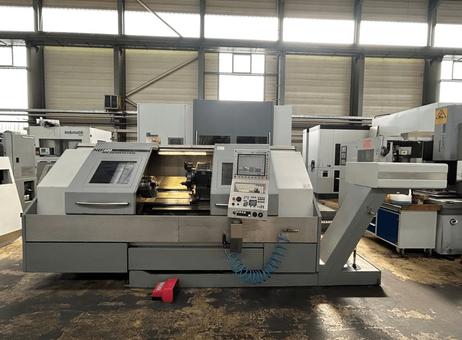

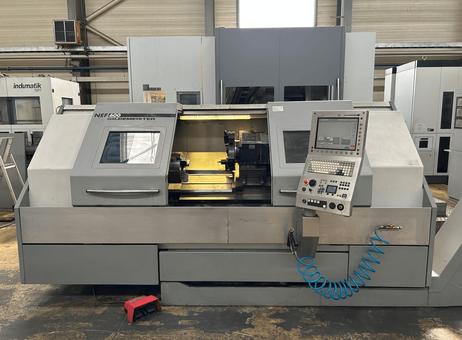

CNC lathe DMG / Gildemeister NEF 600 V1 (2006) with Heidenhain IT-Turn Plus control. This machine is a 2-axis CNC turning center designed for medium-sized workpieces and comes with a number of documented features and equipment items.
Key technical data
- Manufacturer / model: DMG Gildemeister NEF 600 V1
- Year manufactured: 2006
- Machine footprint (L×W×H): 5000 × 2000 × 2200 mm
- Machine weight: 5,500 kg
- Maximum turning length: 1,250 mm
- Maximum turning diameter over bed: 600 mm
- Maximum turning diameter over cross-slide: 410 mm
- Spindle bore: 90 mm
- Spindle speed range: 3,000 rpm
- Spindle drive power: 36.5 / 27.5 kW (as specified)
- Spindle torque: 785 Nm
- Number of controlled axes: 2
Tooling and attachments
- Turret: 1 turret with VDI 40 tool holder, 8 tool stations
- Chuck: 3-jaw chuck, 315 mm
- Tailstock: MK 5 with 80 mm quill (pinole)
- Chip conveyor included
Condition notes and service information (as stated)
- Main spindle: newly fitted bearings
- Machine interior: newly repainted
- Maintenance package: indicated (details not specified)
Remarks
This description only reflects the documented technical data and the equipment items listed. No additional performance claims (for example: tested, guaranteed, or refurbished status) are provided beyond the stated maintenance and spindle bearing information.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Lathe
Machine Type: DMG Gildemeister NEF 600
Control System: Heidenhain IT Turn Plus
Year of Manufacture: 2006
TECHNICAL SPECIFICATIONS
Max. Turning Length: 1,250 mm
Max. turning diameter over bed: 600 mm
Max. turning diameter over slide: 410 mm
Spindle bore: 90 mm
Number of controlled axes: 2
Speed range: 3,000 rpm
Drive power: 36.5 / 27.5 kW
Torque: 785 Nm
Tailstock: MK 5
Quill: 80 mm
Number of turrets: 1
Tool holder: VDI 40/8
Tool stations: 8
Machine weight: 5,500 kg
Footprint (LxWxH): 5.0 x 2.0 x 2.2 m
Features
Chip conveyor
3-jaw chuck: 315 mm
Main spindle: new bearings
Interior repainted
Maintenance package
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2013 |
| Offers online | 34 |
| Last activity | Oct. 31, 2026 |
Stenzel GmbH is a leading provider of precision CNC machining solutions based in Germany. With a commitment to excellence and innovation, Stenzel specializes in delivering high-quality components and assemblies tailored to meet the specific needs of various industries, including automotive, aerospace, and medical technology. Their state-of-the-art facilities are equipped with advanced machinery and technology, ensuring that every product meets the highest standards of quality and precision. What sets Stenzel apart is their dedication to customer satisfaction and their ability to adapt to the ever-evolving demands of the market. The company prides itself on its skilled workforce, which is trained to utilize the latest techniques in CNC machining. This expertise allows Stenzel to offer not only standard products but also customized solutions that cater to unique project requirements. Their focus on continuous improvement and innovation ensures that they remain at the forefront of the industry. In addition to their machining capabilities, Stenzel GmbH emphasizes sustainability and efficiency in their operations. By implementing eco-friendly practices and optimizing production processes, they strive to minimize their environmental impact while maximizing productivity. This commitment to sustainability resonates with clients who are looking for responsible partners in their supply chain. Overall, Stenzel GmbH stands as a reliable partner for businesses seeking high-quality CNC machining services. Their blend of advanced technology, skilled craftsmanship, and customer-centric approach makes them an ideal choice for companies looking to enhance their manufacturing capabilities.
CNC Lathe
Machine Type: DMG Gildemeister NEF 600
Control System: Heidenhain IT Turn Plus
Year of Manufacture: 2006
TECHNICAL SPECIFICATIONS
Max. Turning Length: 1,250 mm
Max. turning diameter over bed: 600 mm
Max. turning diameter over slide: 410 mm
Spindle bore: 90 mm
Number of controlled axes: 2
Speed range: 3,000 rpm
Drive power: 36.5 / 27.5 kW
Torque: 785 Nm
Tailstock: MK 5
Quill: 80 mm
Number of turrets: 1
Tool holder: VDI 40/8
Tool stations: 8
Machine weight: 5,500 kg
Footprint (LxWxH): 5.0 x 2.0 x 2.2 m
Features
Chip conveyor
3-jaw chuck: 315 mm
Main spindle: new bearings
Interior repainted
Maintenance package
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
CNC lathe DMG / Gildemeister NEF 600 V1 (2006) with Heidenhain IT-Turn Plus control. This machine is a 2-axis CNC turning center designed for medium-sized workpieces and comes with a number of documented features and equipment items.
Key technical data
- Manufacturer / model: DMG Gildemeister NEF 600 V1
- Year manufactured: 2006
- Machine footprint (L×W×H): 5000 × 2000 × 2200 mm
- Machine weight: 5,500 kg
- Maximum turning length: 1,250 mm
- Maximum turning diameter over bed: 600 mm
- Maximum turning diameter over cross-slide: 410 mm
- Spindle bore: 90 mm
- Spindle speed range: 3,000 rpm
- Spindle drive power: 36.5 / 27.5 kW (as specified)
- Spindle torque: 785 Nm
- Number of controlled axes: 2
Tooling and attachments
- Turret: 1 turret with VDI 40 tool holder, 8 tool stations
- Chuck: 3-jaw chuck, 315 mm
- Tailstock: MK 5 with 80 mm quill (pinole)
- Chip conveyor included
Condition notes and service information (as stated)
- Main spindle: newly fitted bearings
- Machine interior: newly repainted
- Maintenance package: indicated (details not specified)
Remarks
This description only reflects the documented technical data and the equipment items listed. No additional performance claims (for example: tested, guaranteed, or refurbished status) are provided beyond the stated maintenance and spindle bearing information.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
