Contact us to receive an offer.
| Manufacturer | DMG |
|---|---|
| Model | DMC 65 V |
| Year | 2002 |
| Location | Denmark
|
This DMG DMC 65 V vertical machining center, manufactured in 2002, offers a robust solution for precision metalworking tasks. The machine features a work table measuring 850 mm in length and 600 mm in width, providing ample space for various workpieces. It supports longitudinal (X-axis) movement of 650 mm, transverse (Y-axis) movement of 500 mm, and vertical (Z-axis) movement of 500 mm, allowing for versatile machining operations.
Equipped with a spindle capable of reaching speeds up to 18,000 rpm, the machine is suitable for high-speed cutting applications. It includes a 30-position tool magazine and utilizes an ISO 40 spindle taper to accommodate a variety of tooling options. The control system is the MILL PLUS, which provides an interface with multiple operating keys, an emergency stop button, and key switches for safe operation.

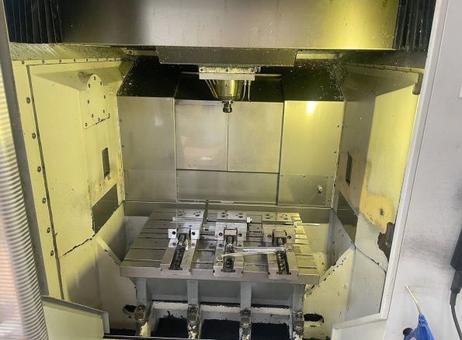

The machining center is enclosed with a transparent window, enabling operators to monitor the machining process safely. The interior workspace is illuminated, enhancing visibility during operations. Ventilation or exhaust ducting is connected to the top of the machine to manage air quality and remove machining fumes or debris.
A synchronous spindle and handwheel for axis movements are part of the equipment, facilitating precise manual adjustments. The machine also includes an RS-232 C interface and a cooling water system to support machining performance and tool longevity.

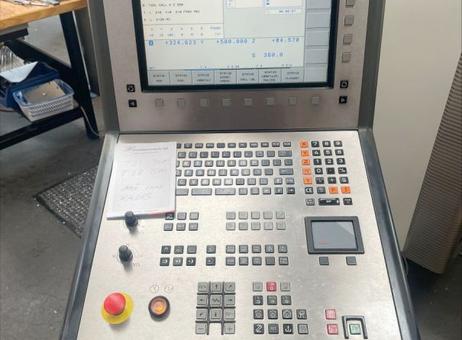

The control panel is powered on and displays programming and operational data, indicating readiness for use. The panel surface is clean and well-maintained, with visible emergency stop and key switches for operator safety.

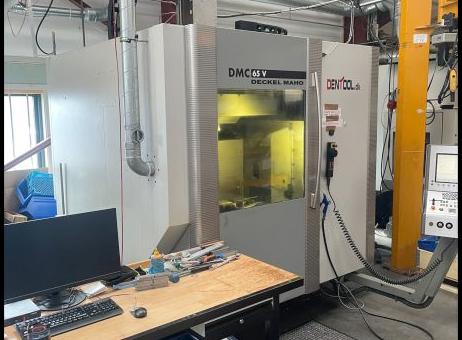

Overall, the machine appears clean and well-maintained with no visible damage. The interior machining area shows typical signs of use, including some metal debris and discoloration on the walls, consistent with normal operation. Adjacent to the machine is a work desk equipped with a computer monitor, keyboard, and various tools, supporting efficient workflow and control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Table size 850x 600 mm Longitudinal movement 650 mm Transverse movement 500 mm Vertical movement 500 mm Spindle speeds 18,000 rpm Number of tools in magazine 30 pcs Spindle taper ISO 40 Control MILL PLUS
Equipped with:
Synchronous spindle Handwheel for axis movements Short mandrels Interface RS-232 C Cooling water system Operating keys, etc.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2010 |
| Offers online | 38 |
| Last activity | Oct. 23, 2026 |
Table size 850x 600 mm Longitudinal movement 650 mm Transverse movement 500 mm Vertical movement 500 mm Spindle speeds 18,000 rpm Number of tools in magazine 30 pcs Spindle taper ISO 40 Control MILL PLUS
Equipped with:
Synchronous spindle Handwheel for axis movements Short mandrels Interface RS-232 C Cooling water system Operating keys, etc.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This DMG DMC 65 V vertical machining center, manufactured in 2002, offers a robust solution for precision metalworking tasks. The machine features a work table measuring 850 mm in length and 600 mm in width, providing ample space for various workpieces. It supports longitudinal (X-axis) movement of 650 mm, transverse (Y-axis) movement of 500 mm, and vertical (Z-axis) movement of 500 mm, allowing for versatile machining operations.
Equipped with a spindle capable of reaching speeds up to 18,000 rpm, the machine is suitable for high-speed cutting applications. It includes a 30-position tool magazine and utilizes an ISO 40 spindle taper to accommodate a variety of tooling options. The control system is the MILL PLUS, which provides an interface with multiple operating keys, an emergency stop button, and key switches for safe operation.
The machining center is enclosed with a transparent window, enabling operators to monitor the machining process safely. The interior workspace is illuminated, enhancing visibility during operations. Ventilation or exhaust ducting is connected to the top of the machine to manage air quality and remove machining fumes or debris.
A synchronous spindle and handwheel for axis movements are part of the equipment, facilitating precise manual adjustments. The machine also includes an RS-232 C interface and a cooling water system to support machining performance and tool longevity.
The control panel is powered on and displays programming and operational data, indicating readiness for use. The panel surface is clean and well-maintained, with visible emergency stop and key switches for operator safety.
Overall, the machine appears clean and well-maintained with no visible damage. The interior machining area shows typical signs of use, including some metal debris and discoloration on the walls, consistent with normal operation. Adjacent to the machine is a work desk equipped with a computer monitor, keyboard, and various tools, supporting efficient workflow and control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
