| Manufacturer | Dimitrov |
|---|---|
| Model | 1550 |
| Year | 1972 |
| Location | Ukraine
|
| Category | Lathes - Heavy-duty lathes (above 3001 mm) |
| Overhauled | no |
| Tailstock | no |
| Steady | no |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | in production |
| Last availability date | 27/02/2026 |
| Product id | P221010031 |
| Language |
Dimitrov 1550
Velký soustruh Dimitrov 1550
Dimitrov 1550
Dimitrov 1550 Schwerdrehbank
Dimitrov 1550
Turning and Boring Lathe 1550
Torno de gran capacidad Dimitrov 1550
Tour grande capacité Dimitrov 1550
Dimitrov 1550
Dimitrov 1550
Tornio pesante Dimitrov 1550
Dimitrov 1550
Dimitrov 1550
Tokarka ciężka Dimitrov 1550
Dimitrov 1550
Dimitrov 1550
Dimitrov 1550 Тяжёлый токарный станок
Dimitrov 1550
Dimitrov 1550
Ağır Tip Torna Dimitrov 1550
|
The Dimitrov 1550 is a heavy-duty vertical lathe manufactured in 1972, designed for machining large and heavy parts. It features a large circular worktable base with a faceplate diameter of 5000 mm, capable of accommodating workpieces up to 5000 mm in diameter and 3200 mm in height. The machine can handle a maximum workpiece weight of 50 tons, making it suitable for industries such as heavy manufacturing, energy, nuclear, oil, and gas sectors.

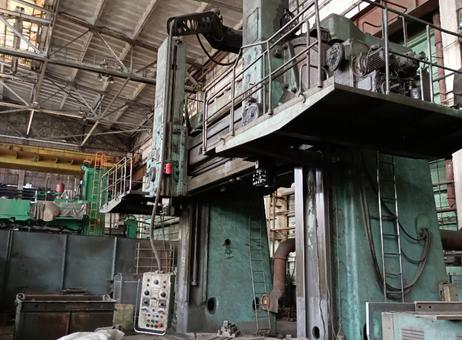

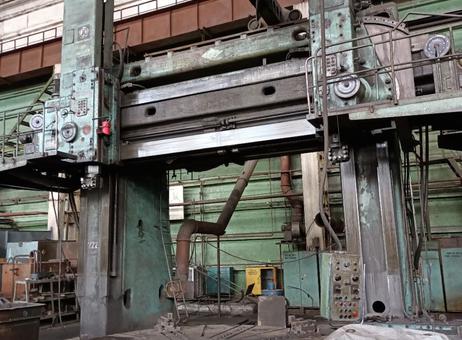

The lathe is built with two vertical columns supporting a horizontal overhead beam, providing structural stability for heavy machining operations. A control panel equipped with multiple buttons and dials is mounted on one of the vertical columns, allowing for operational control. The machine also includes a safety railing around the platform area on the horizontal beam to enhance operator safety.
This model, identified as carousel machine KU-281, is powered by several electric motors with varying power and speed ratings to drive different machine functions. The motors include types such as П112N with 125 kW and speeds ranging from 330 to 2200 rpm, among others with power ratings between 2.2 kW and 14.5 kW.

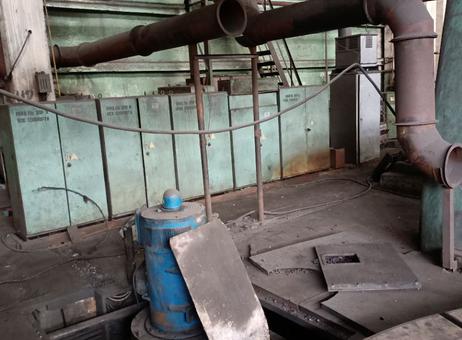

The machine shows signs of wear consistent with industrial use, including dirt accumulation, chipped paint, and some rust spots on surfaces and guide rails. Despite these cosmetic conditions, it remains a robust piece of equipment capable of heavy machining tasks. The industrial environment around the machine includes visible pipes and other machinery components, indicating its placement in a typical factory setting.
Overall, the Dimitrov 1550 vertical lathe is a reliable and substantial machine tool designed for large-scale turning operations, offering significant capacity and versatility for heavy industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The 1550 vertical lathe is a heavy vertical lathe that can be used to turn large parts.
The machine was supplied to enterprises of the heavy, energy and nuclear industries, enterprises of the oil and gas industry, and was also exported.
The 1550 lathe has proven itself to be reliable and unpretentious, not requiring special attention.
The largest diameter of the installed product - 5000mm
The greatest height of the installed product - 3200mm
Faceplate diameter 5000mm
The maximum weight of the processed product is 50t.
H=8315mm H=12900mm L=7500mm
Carousel machine model KU-281
Electric motors
П112N125kw n=330-1000-2200rpm
PNF45 N=6.5 kW; n=14-2800rpm
AOS2-51-4 N=8.7 kW n=1335 rpm
AOS2-61-4 N=14.5 kW n=1350 rpm
AO2-31-4 N=2.2 kW n=14200 rpm
AOS2-21-4 N=13kW n=1300 rpm
AO2-22-2 N=2.2 kW n=2850 rpm
AO62-4 N=10kw n=1400 rpm
And also Angle head for machine KU-281 for drilling and N
milling.
Weight = 472kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 6 |
| Last activity | Oct. 28, 2026 |
The 1550 vertical lathe is a heavy vertical lathe that can be used to turn large parts.
The machine was supplied to enterprises of the heavy, energy and nuclear industries, enterprises of the oil and gas industry, and was also exported.
The 1550 lathe has proven itself to be reliable and unpretentious, not requiring special attention.
The largest diameter of the installed product - 5000mm
The greatest height of the installed product - 3200mm
Faceplate diameter 5000mm
The maximum weight of the processed product is 50t.
H=8315mm H=12900mm L=7500mm
Carousel machine model KU-281
Electric motors
П112N125kw n=330-1000-2200rpm
PNF45 N=6.5 kW; n=14-2800rpm
AOS2-51-4 N=8.7 kW n=1335 rpm
AOS2-61-4 N=14.5 kW n=1350 rpm
AO2-31-4 N=2.2 kW n=14200 rpm
AOS2-21-4 N=13kW n=1300 rpm
AO2-22-2 N=2.2 kW n=2850 rpm
AO62-4 N=10kw n=1400 rpm
And also Angle head for machine KU-281 for drilling and N
milling.
Weight = 472kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
