| Manufacturer | CIMIPACK |
|---|---|
| Model | PACKFORM ECO SPECIAL CIMIPACK |
| Year | 2020 |
| Location | Italy
|

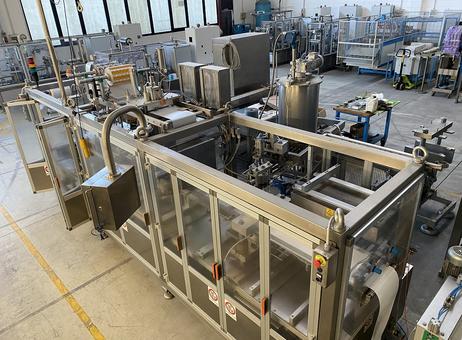

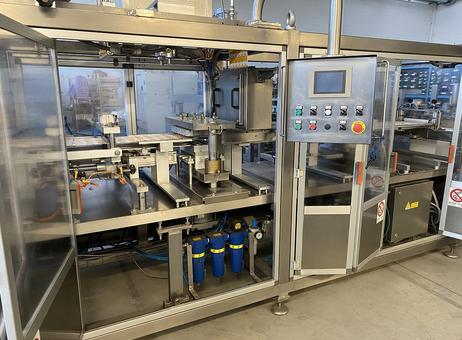

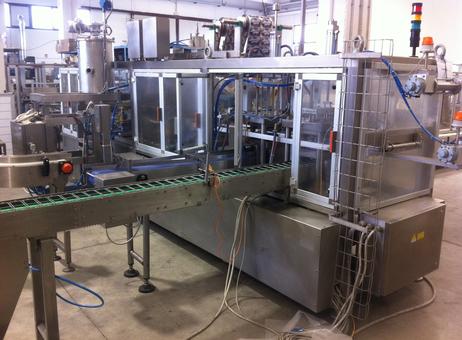

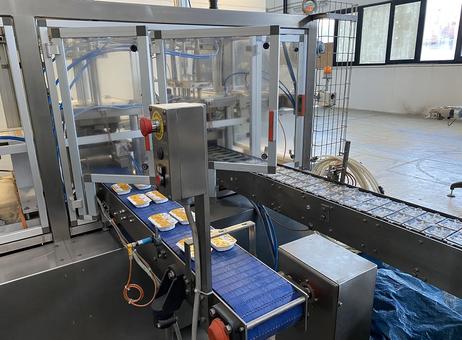

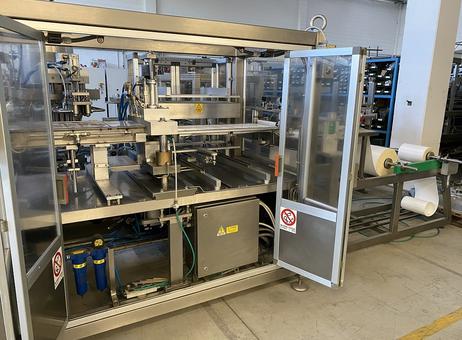

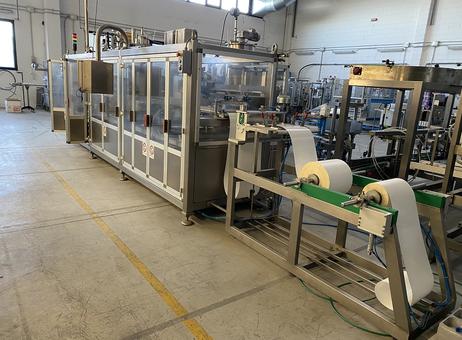

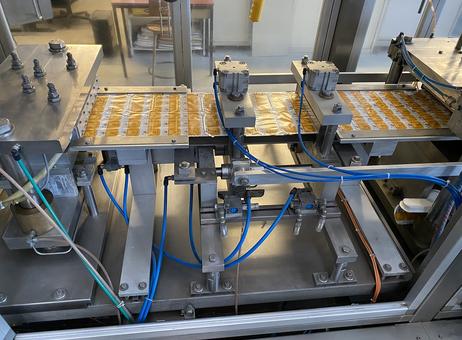

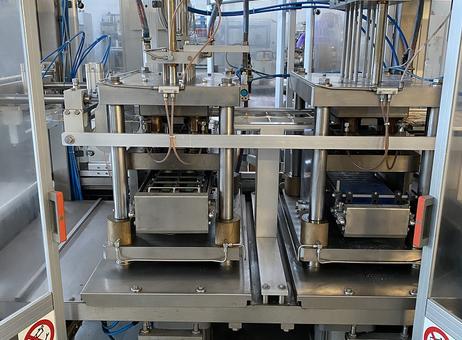

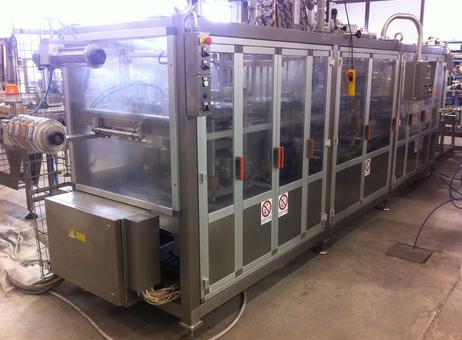

THERMOFORMING AND PACKAGING MACHINE (FORM-FILL-SEAL) – PACKFORM ECO SPECIAL (CIMIPACK)
Brief Description
This thermoforming/packaging machine model PACKFORM ECO SPECIAL is designed for forming, filling, and sealing single-dose products. The construction is stainless steel, and the version is described as pneumatic “Ultra Clean.” The machine is intended for packaging single-dose cream cheese, creams, and various types of sauces.
Main Technical Data and Features
- Year of production: January 2020
- Material: stainless steel
- Version: pneumatic Ultra Clean

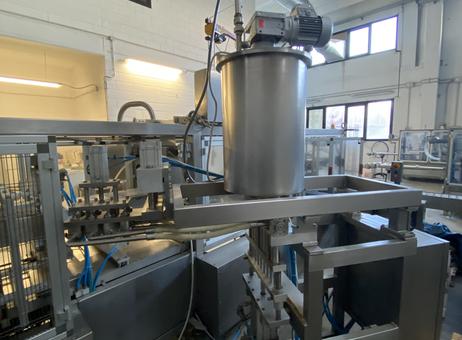

- Dosing system: 8 volumetric pumps with volumes of 10 / 120 cc
- Width of plastic material (base and cover material): 277 mm
- Machine stroke: 163 mm
- Maximum stretch (container height): 45 mm

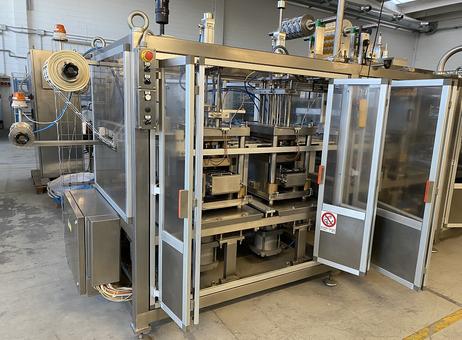

Production Devices (two different devices are mounted on the machine)

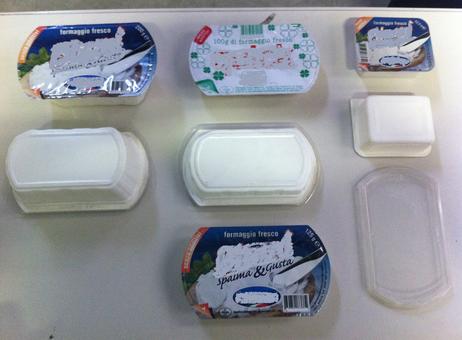

1) Device with 4 positions for container 76.5 mm x 128.7 mm
- Intended weights: 100 g, 120 g, 200 g
- Output: 5,000 pcs/hour
2) Device with 8 positions for container 61.5 mm x 76.5 mm
- Intended weights: 50 g, 60 g
- Output: 10,000 pcs/hour
Dimensions and Installation Data
- Length: 9 m

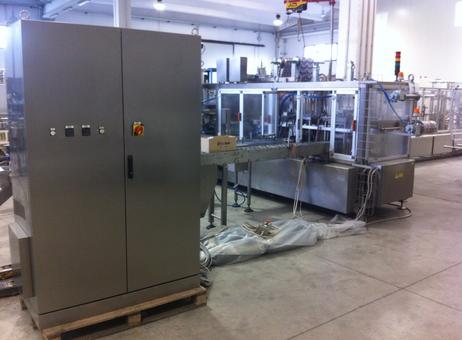

- Width: 2 m (up to 6 m with space for conveyor belts at container outlets)
- Height: 2.5 m
- Power supply: 400 V – 50 Hz – 3 phases + N + PE
- Minimum operating pressure: 6 bar
- Air consumption per cycle: 200 NL
- Water consumption: 100 l/h
- Installed power: 16 kW
- Voltage for controls and auxiliary devices: 24 VDC
Additional Information
- There is an option to add an automatic packaging machine at the end of the line upon request.
Note: The specifications and data described are taken from the available product description. There is no additional information regarding operational condition, performed tests, or included equipment beyond what is stated in the description.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
PACKFORM ECO SPECIAL CIMIPACK THERMOFORMING AND PACKAGING MACHINE (FORM-FILL-SEAL)
PACKFORM ECO SPECIAL THERMOFORMING AND PACKAGING MACHINE (FORM-FILL-SEAL) MODEL
YEAR OF MANUFACTURE: JANUARY 2020
CONSTRUCTION MATERIAL: STAINLESS STEEL
VERSION: ULTRA CLEAN PNEUMATIC
DOSING SYSTEM: 8 VOLUMETRIC PUMPS, 10 / 120 CC
PRODUCT TO BE PACKAGED: SINGLE-SERVING PORTIONS OF SPREADABLE CHEESE, CREAMS, AND VARIOUS TYPES OF SAUCES
MACHINE EQUIPPED WITH 2 DIFFERENT SETS OF ATTACHMENTS:
-1) 4-STATION ATTACHMENT FOR PRODUCING CONTAINERS MEASURING 76.5 mm × 128.7 mm
WEIGHING 100 g – 120 g – 200 g; HOURLY PRODUCTION RATE: 5,000 PCS/H
-2) 8-STATION UNIT FOR PRODUCING 61.5 mm × 76.5 mm CONTAINERS
FROM 50 g – 60 g; HOURLY PRODUCTION: 10,000 PCS/H
MACHINE LENGTH: 9 meters
MACHINE WIDTH: 2 meters (6 meters including conveyor belts for container output)
MACHINE HEIGHT: 2.5 meters
WIDTH OF BOTTOM PLASTIC MATERIAL AND COVERING MATERIAL: 277 mm
MACHINE PITCH: 163 mm
MAXIMUM STRETCH (CONTAINER HEIGHT): 45 mm
ELECTRICAL SUPPLY: 400 V – 50 Hz – 3-phase + N + PE
MINIMUM OPERATING PRESSURE: 6 BAR
AIR CONSUMPTION PER CYCLE: 200 NL
WATER CONSUMPTION: 100 LT/H
INSTALLED ELECTRICAL POWER: 16 KW
CONTROL AND AUXILIARY VOLTAGE: 24 VDC.
IMPORTANT: AN AUTOMATIC END-OF-LINE BOXING MACHINE IS AVAILABLE UPON REQUEST!
