| Manufacturer | CHIRON / Fanuc |
|---|---|
| Model | FZ 12 KW / LR Mate 200iC / M - 20iA |
| Year | 2012 |
| Location | Germany
|
This offering includes a CHIRON FZ 12 KW vertical machining center manufactured in 2012, equipped with a Fanuc control system (M - 20iA) and two Fanuc LR Mate 200iC robotic arms for automated loading and unloading. The machining center features a high-speed spindle with a maximum speed of 12,000 rpm and a spindle motor power of 12 kW, suitable for precision machining tasks. It has three controlled axes with movement ranges of 550 mm (X-axis), 320 mm (Y-axis), and 360 mm (Z-axis), along with rapid traverse speeds up to 60 m/min on the Z-axis. The machine is fitted with a 24-pocket automatic tool changer, allowing efficient tool management during operations. The worktable measures 820 mm in length and 440 mm in width, supporting a maximum part weight of 500 kg. The tool taper is HSK-A 50.

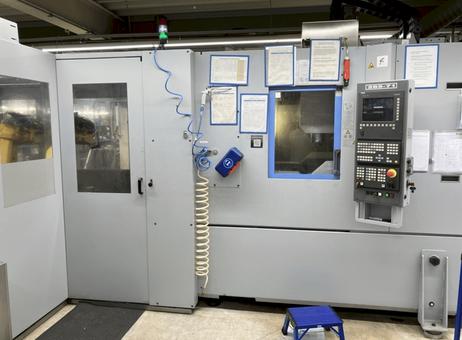

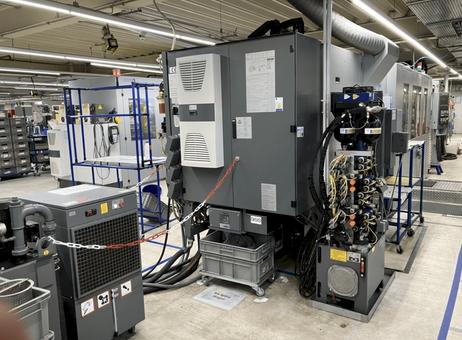

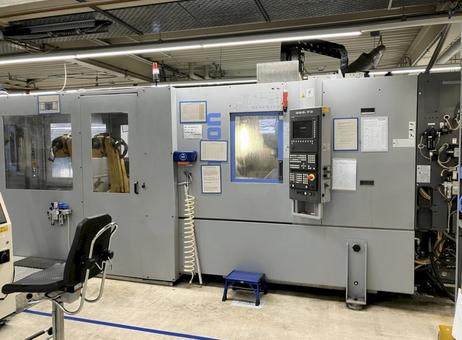

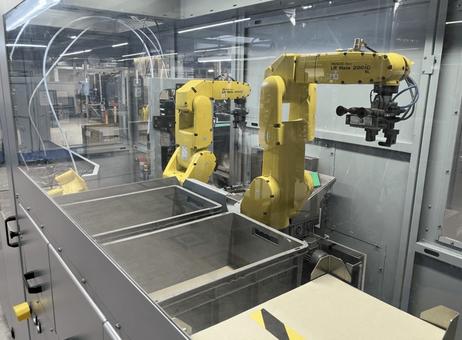

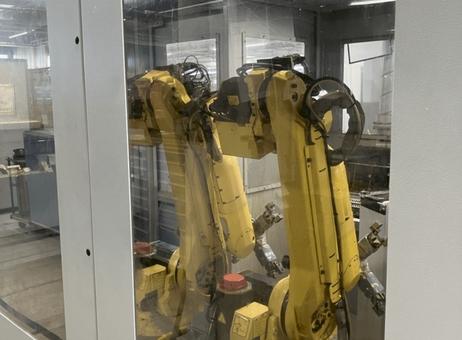

The system includes two yellow Fanuc LR Mate 200iC robotic arms housed within a transparent enclosure, designed to facilitate automated part handling. The robotic arms and enclosure appear well-maintained and intact. The machining center itself has an enclosed working area and a control panel mounted on the front right side, labeled '265-72' or '265-71', featuring various buttons, switches, and display screens. A blue emergency stop button is present on the control panel for safety. Auxiliary equipment and electrical panels are connected at the rear of the machine, with cables and hoses neatly organized.
Overall, the machine and its accessories appear clean and well-maintained with no visible damage. Additional accessories observed include a small blue step stool and a blue coiled air hose near the machine. This comprehensive setup is suitable for high-precision machining and automated manufacturing processes. For further details and inquiries, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The system consists of: 2 x CHIRON FZ 12 KW (2012) + 2 x Fanuc LR Mate 200iC (2011) + 2 x Fanuc M - 20iA (2011) + Waschstraße. It features a high-speed spindle with a maximum speed of 12,000 rpm and a rapid traverse speed of up to 60 m/min on the Z-axis. Each machine includes a 24-slot automatic tool changer and can handle a table load of up to 500 kg. Ideal for precision machining tasks. Contact us for more information about this machine.
Tool taper: HSK-A 50
Spindle speed range: 12000
Number of axis: 3
Max payload: Up to 5 kg
X-Axis Movement: 550 mm
X-Axis Rapid Traverse: 40 m/min
Y-Axis Movement: 320 mm
Y-Axis Rapid Traverse: 40 m/min
Z-Axis Movement: 360 mm
Z-Axis Rapid Traverse: 60 m/min
Table load: 500 kg
Max weight: 5 kg
Controlled axes: 6 axes
Reach: 704 mm
Acceleration/deceleration: 0 to 12000 min-1 in 0. 6 seconds
Clamping surface: 820 x 440 mm²
Drilling capacity in st 60: Ø 16 mm
Tapping: m 16
Milling capacity in st 60: 80 cm³/min
Acceleration: x & y axis 0. 7 g, z axis 1. 0 g
Movement
Axis Movement Range and Speed:
J1: 340°/360° (option) at 350°/s
J2: 200° at 350°/s
J3: 388° at 400°/s
J4: 380° at 450°/s
J5: 240° at 450°/s
J6: 720° at 720°/s
Allowable Load Moment:
J4 & J5: 11.9 Nm
J6: 6.7 Nm
Repeatability: +/- 0.02 mm
Maximum Speed
J1: 195°/s
J2: 175°/s
J3: 180°/s
J4 & J5: 400°/s
J6: 600°/s
Allowable Load Moment
J4 & J5: 7.7 Nm
J6: 9.8 Nm
Tools
Automatic Tool Changer:
Tool Pockets: 24
Tool Change Time: approx. 0.9 s
Chip-to-Chip Time: approx. 2.4 s
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
