| Manufacturer | Chiron |
|---|---|
| Model | DZ 28 P five axis |
| Year | 2023 |
| Location | Germany
|
This Chiron DZ 28 P five-axis machining center, manufactured in 2023, is designed for high-precision and versatile machining tasks. It features a Siemens Sinumerik 840D SL control system, ensuring advanced and reliable CNC operation. The machine offers substantial travel distances with axes measuring 1,200 mm (X), 1,100 mm (Y), and 800 mm (Z), supported by rapid traverse rates of 120 m/min on the X-axis and 75 m/min on both Y and Z axes. Axis accelerations are 1.0 g (X), 0.8 g (Y), and 1.5 g (Z), contributing to efficient and dynamic machining processes.

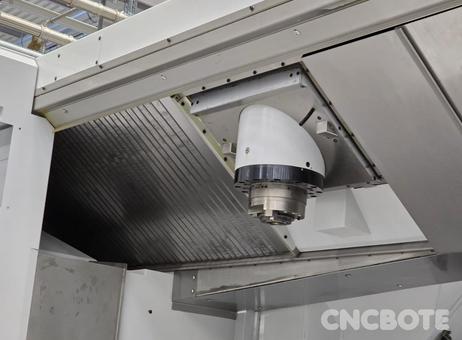

The main spindle can reach speeds up to 20,000 rpm, suitable for a wide range of materials and machining requirements. This center includes a 2-axis torque swivel device with two face plates, each 479 mm in diameter, allowing complex part orientations. The swivel axis (A-axis) provides a swivel angle of ±120° with a radius of 700 mm and a speed of 42 rpm, while the NC rotary table (C-axis) offers a clamping force of 25 kN per segment, repeat accuracy of ±5", and speeds up to 100 rpm.
Equipped with a loading and unloading station for tools, it accommodates 2 x 36 tool pockets with HSK-A 63 DIN 69893 tool shanks. Maximum tool dimensions include a diameter of 78 mm (or 160 mm with free neighboring positions), length of 450 mm, and weight up to 10 kg. Tool change time is approximately 0.9 seconds, enhancing productivity.
The machine operates on a 3×400 V ±10% power supply at 50 Hz, with compressed air requirements of 6 bar +1 bar for all operating cycles and a socket voltage of 230 V ±10%.

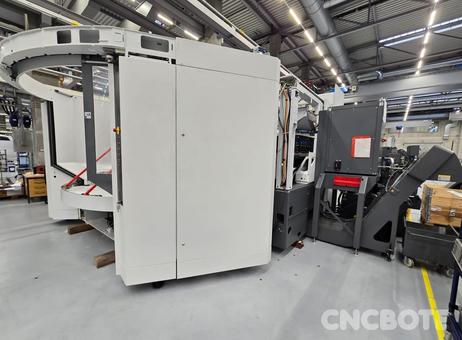

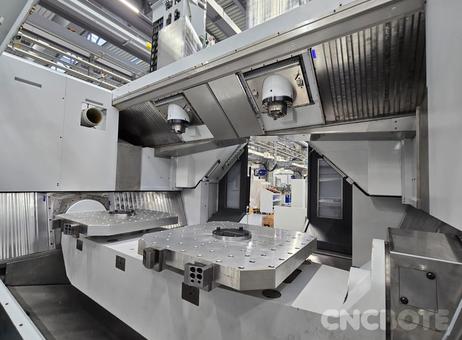

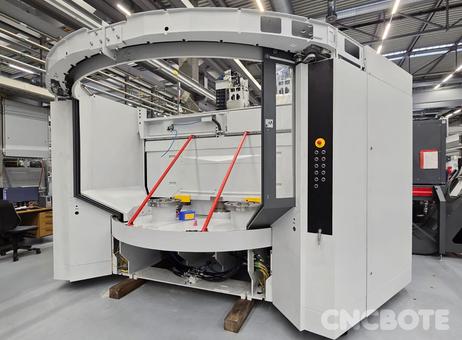

Visually, the machine presents a clean and well-maintained appearance, housed in a white enclosure with an open working area and a yellow step platform for operator access. The control panel is positioned on the left side, and the internal work area and fixtures are visible through an open door. The machine is installed indoors on wooden blocks for support or leveling. Additional features include visible cable routing on top, a rotary mechanism, a black control or electrical box with a red label on the right side, and an adjacent metal stair platform.
This Chiron DZ 28 P machining center is a robust and precise solution for complex five-axis machining applications, combining high-speed spindle capabilities with flexible tooling and axis movements.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General information
Manufacturer: Chiron
Type: DZ 28 P five axis
Year of manufacture: 2023
Control system: Siemens Sinumerik 840D SL
Travel distances: X 1,200 mm Y 1,100 mm Z 800 mm
Rapid traverse: X 120 m/min Y 75 m/min Z 75 m/min
Axis acceleration: X 1.0 g Y 0.8 g Z 1.5 g
Main spindle drive
Speed: up to 20,000 rpm
2-axis torque swivel device
2 x face plates Diameter: 479 mm
Swivel axis as A-axis
Swivel angle: ± 120°
Swivel radius: 700 mm
Bridge dimension: max. 2,400 mm
Repeat accuracy: ± 5″
Speed: 42 rpm
NC rotary table as C-axis
Clamping force: 25 kN +/- 15% per clamping segment
Repeat accuracy: ± 5″
Speed: 100 rpm
Loading and unloading station for tools
Tool positions: 2 x 36
Tool shank: HSK-A 63 DIN 69893
Tool diameter: max. 78 mm
Tool diameter with free neighbouring positions: max. 160 mm
Tool length: max. 450 mm
Tool weight: max. 10 kg
Tool change time: approx. 0.9 s
Mains connection
Frequency: 50 Hz
Connection voltage: 3×400 volts ± 10%
Compressed air: 6 bar +1 bar for all operating cycles
Socket voltage: 230 volts ± 10%
Condition
Condition: Used
Functional: tested and fully functional
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
