| Manufacturer | CANSA |
|---|---|
| Model | CNC 51 R1 |
| Year | 2018 |
| Location | Romania
|

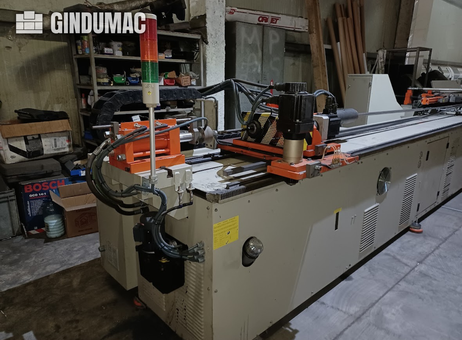

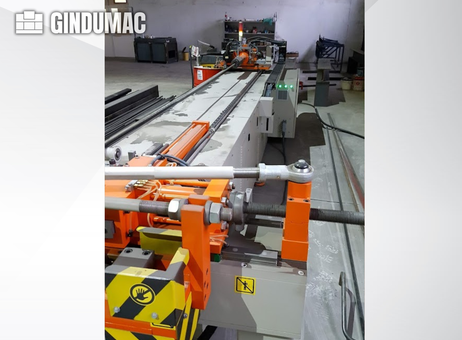

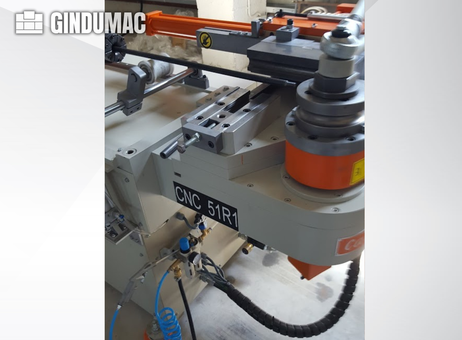

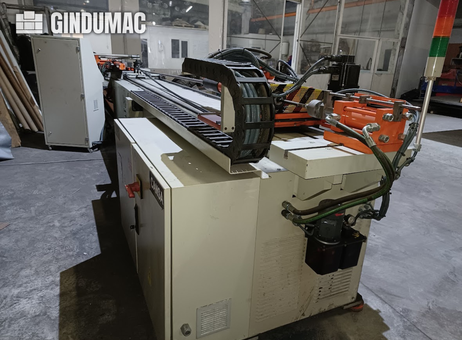

CANSA CNC 51 R1 CNC tube bending machine, manufactured in 2018. The machine has a long extended work and feed bed, a cream-colored cabinet, and orange bending and tooling assemblies. Visible components include a bending head with a round die assembly, guide blocks, adjustment rods, a linear guide, hydraulic hoses, and a cable carrier. A stack light is mounted near the machine.
The stated maximum tube diameter is 51 mm, with a maximum wall thickness of 4 mm. The listed bending radius range is 60–275 mm (CLR), and the maximum bending angle is 190°. Total motor power is 18 kW. The machine dimensions are 6,500 × 1,850 × 4,400 mm, and the stated weight is 3,000 kg.

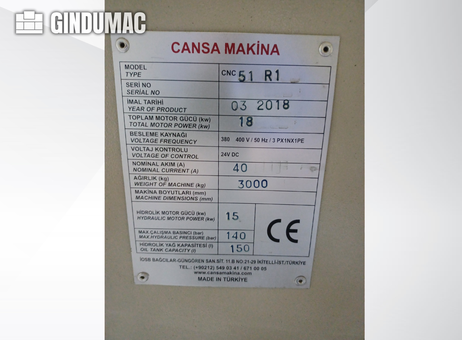

Included equipment is described as mandrel tooling, rollers/tooling for 25 mm tube, and part/bending configuration software. The machine nameplate specifies a 380–400 V, 50 Hz electrical supply and 24 V DC control voltage. It also lists a 15 kW hydraulic motor, maximum hydraulic pressure of 140 bar, and a 150 L hydraulic oil tank.
The cabinet panels and work surfaces show dirt, grime, scuffs, and wear. The bed surface has areas of peeling or worn finish. The machine has yellow-and-black hazard markings and hand/pinch-point warning symbols. Its operational condition has not been specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Tube Bending Machine manufactured in 2018. This CANSA CNC 51 R1 features a maximum tube diameter of 51 mm and a maximum wall thickness of 4 mm. It includes a mandrel and part configuration software for enhanced bending capabilities. If you are looking to get high-quality bending capabilities, consider the CANSA CNC 51 R1 machine we have for sale. Contact us for further details.Bending capacity
Max. tube diameter: 51 mm
Max. wall thickness: 4 mm
Max. bending radius (CLR): 275 mm
Min. bending radius (CLR): 60 mm
Max. bending angle: 190°
Bending speed: 25°/s
Electrical / hydraulic
Total motor power: 18 kW
Hydraulic motor power: 15 kW
Max. hydraulic pressure: 140 bar
Hydraulic oil tank capacity: 150 l
Nominal current: 40 A
Electrical supply: 380/400 V, 50 Hz, 3-phase
Control voltage: 24 V DC
Additional equipment
Mandrel tooling included
Rollers/tooling for Ø25 mm tube
Part/bending configuration software included
Machine Height: 4400 mm
Machine Length: 6500 mm
Machine Weight: 3000 kg
Machine Width: 1850 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2055 |
| Last activity | Oct. 29, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
CNC Tube Bending Machine manufactured in 2018. This CANSA CNC 51 R1 features a maximum tube diameter of 51 mm and a maximum wall thickness of 4 mm. It includes a mandrel and part configuration software for enhanced bending capabilities. If you are looking to get high-quality bending capabilities, consider the CANSA CNC 51 R1 machine we have for sale. Contact us for further details.Bending capacity
Max. tube diameter: 51 mm
Max. wall thickness: 4 mm
Max. bending radius (CLR): 275 mm
Min. bending radius (CLR): 60 mm
Max. bending angle: 190°
Bending speed: 25°/s
Electrical / hydraulic
Total motor power: 18 kW
Hydraulic motor power: 15 kW
Max. hydraulic pressure: 140 bar
Hydraulic oil tank capacity: 150 l
Nominal current: 40 A
Electrical supply: 380/400 V, 50 Hz, 3-phase
Control voltage: 24 V DC
Additional equipment
Mandrel tooling included
Rollers/tooling for Ø25 mm tube
Part/bending configuration software included
Machine Height: 4400 mm
Machine Length: 6500 mm
Machine Weight: 3000 kg
Machine Width: 1850 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
CANSA CNC 51 R1 CNC tube bending machine, manufactured in 2018. The machine has a long extended work and feed bed, a cream-colored cabinet, and orange bending and tooling assemblies. Visible components include a bending head with a round die assembly, guide blocks, adjustment rods, a linear guide, hydraulic hoses, and a cable carrier. A stack light is mounted near the machine.
The stated maximum tube diameter is 51 mm, with a maximum wall thickness of 4 mm. The listed bending radius range is 60–275 mm (CLR), and the maximum bending angle is 190°. Total motor power is 18 kW. The machine dimensions are 6,500 × 1,850 × 4,400 mm, and the stated weight is 3,000 kg.
Included equipment is described as mandrel tooling, rollers/tooling for 25 mm tube, and part/bending configuration software. The machine nameplate specifies a 380–400 V, 50 Hz electrical supply and 24 V DC control voltage. It also lists a 15 kW hydraulic motor, maximum hydraulic pressure of 140 bar, and a 150 L hydraulic oil tank.
The cabinet panels and work surfaces show dirt, grime, scuffs, and wear. The bed surface has areas of peeling or worn finish. The machine has yellow-and-black hazard markings and hand/pinch-point warning symbols. Its operational condition has not been specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
