Contact us to receive an offer.
| Manufacturer | BRIDGEPORT |
|---|---|
| Model | VMC 1000/22 |
| Year | 2000 |
| Location | Italy
|
The BRIDGEPORT VMC 1000/22 is a vertical machining center designed for precision metalworking tasks. Manufactured in 2000, this machine offers a robust work area with longitudinal (X) travel of 1020 mm, transversal (Y) travel of 510 mm, and vertical (Z) travel of 500 mm. The table measures 1150 mm in length and 490 mm in width, equipped with five T-slots spaced 100 mm apart, supporting a maximum loadable weight of 900 kg.
The spindle features an 11 kW motor capable of speeds ranging from 40 to 6000 rpm, utilizing a BT 40 spindle connection. The machine includes a tool changer with 22 pockets, capable of handling tools up to 6 kg in weight, 250 mm in length, and 75 mm in diameter, with a tool change time of approximately 5.2 seconds.
Rapid traverse rates reach up to 40 m/min for the X and Y axes and 25 m/min for the Z axis, facilitating efficient machining cycles. The machine is supplied complete with instruction manuals and a CE Declaration.

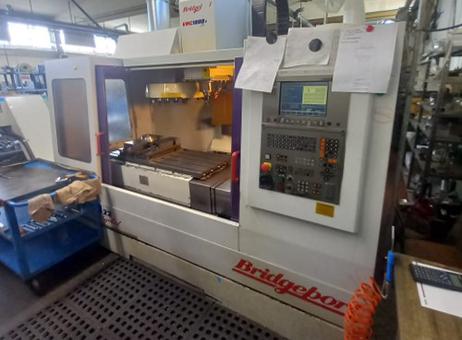

Visually, the machine shows signs of use with some wear visible on the base, indicating it has been operational. The control panel is located on the right side and includes a screen along with multiple buttons and switches for operation. An orange coiled air hose is present near the control panel, suggesting pneumatic support or cleaning capability.
Overall, the BRIDGEPORT VMC 1000/22 is a versatile and sturdy machining center suitable for various metalworking applications, combining precise control, substantial work capacity, and a comprehensive tooling system. Prospective buyers should verify all specifications and machine condition during an in-person inspection.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Heidenhain TNC 410
WORK AREA:
Longitudinal X: mm 1020
Transversal Y: mm 510
Vertical Z: mm 500
Rapid X, Y axes: m/min 40
Z rapids: m/min 25
SPINDLE:
Spindle power: kW 11
Rotation speed: 40 - 6000 rpm
Spindle connection: BT 40
TABLE:
Surface: mm 1150 x 490
T-slots: 5 out of 100 mm
Maximum loadable weight: 900 kg
TOOL CHANGE:
Warehouse locations: 22
Tool change time: 5.2 sec
Maximum tool weight: kg 6
Maximum length: mm 250
Maximum diameter: mm 75
Machine complete with:
Instruction manuals and CE Declaration
this extra information is standard for this model. Please always double-check the details during a visit
The BRIDGEPORT VMC 1000/22 Vertical Machining Center, introduced in 2000, represents a pinnacle of precision and versatility in metal machining. This CNC machine is engineered to deliver exceptional performance across a wide range of machining applications.
Equipped with a robust spindle and high-speed tool changer, the VMC 1000/22 ensures rapid and accurate machining of complex workpieces. Its sturdy construction and high-quality components ensure stability and accuracy during machining, even under heavy loads.
Featuring advanced CNC controls and precision linear guideways, the VMC 1000/22 provides precise control over machining parameters, enabling operators to achieve optimal results with ease. Its versatile tooling options and programmable controls allow for customized machining solutions tailored to specific application requirements.
With user-friendly interfaces and intuitive controls, setup and operation of the VMC 1000/22 are simplified, maximizing productivity and minimizing downtime. Its compact footprint and ergonomic design optimize floor space utilization and operator comfort, making it suitable for both small-scale workshops and industrial manufacturing environments.
Overall, the BRIDGEPORT VMC 1000/22 Vertical Machining Center is a reliable and versatile solution for vertical machining operations. Its precision, durability, and efficiency make it a preferred choice for metalworking professionals seeking superior performance and quality in their machining operations.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 69 |
| Last activity | Oct. 30, 2026 |
CNC Heidenhain TNC 410
WORK AREA:
Longitudinal X: mm 1020
Transversal Y: mm 510
Vertical Z: mm 500
Rapid X, Y axes: m/min 40
Z rapids: m/min 25
SPINDLE:
Spindle power: kW 11
Rotation speed: 40 - 6000 rpm
Spindle connection: BT 40
TABLE:
Surface: mm 1150 x 490
T-slots: 5 out of 100 mm
Maximum loadable weight: 900 kg
TOOL CHANGE:
Warehouse locations: 22
Tool change time: 5.2 sec
Maximum tool weight: kg 6
Maximum length: mm 250
Maximum diameter: mm 75
Machine complete with:
Instruction manuals and CE Declaration
this extra information is standard for this model. Please always double-check the details during a visit
The BRIDGEPORT VMC 1000/22 Vertical Machining Center, introduced in 2000, represents a pinnacle of precision and versatility in metal machining. This CNC machine is engineered to deliver exceptional performance across a wide range of machining applications.
Equipped with a robust spindle and high-speed tool changer, the VMC 1000/22 ensures rapid and accurate machining of complex workpieces. Its sturdy construction and high-quality components ensure stability and accuracy during machining, even under heavy loads.
Featuring advanced CNC controls and precision linear guideways, the VMC 1000/22 provides precise control over machining parameters, enabling operators to achieve optimal results with ease. Its versatile tooling options and programmable controls allow for customized machining solutions tailored to specific application requirements.
With user-friendly interfaces and intuitive controls, setup and operation of the VMC 1000/22 are simplified, maximizing productivity and minimizing downtime. Its compact footprint and ergonomic design optimize floor space utilization and operator comfort, making it suitable for both small-scale workshops and industrial manufacturing environments.
Overall, the BRIDGEPORT VMC 1000/22 Vertical Machining Center is a reliable and versatile solution for vertical machining operations. Its precision, durability, and efficiency make it a preferred choice for metalworking professionals seeking superior performance and quality in their machining operations.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The BRIDGEPORT VMC 1000/22 is a vertical machining center designed for precision metalworking tasks. Manufactured in 2000, this machine offers a robust work area with longitudinal (X) travel of 1020 mm, transversal (Y) travel of 510 mm, and vertical (Z) travel of 500 mm. The table measures 1150 mm in length and 490 mm in width, equipped with five T-slots spaced 100 mm apart, supporting a maximum loadable weight of 900 kg.
The spindle features an 11 kW motor capable of speeds ranging from 40 to 6000 rpm, utilizing a BT 40 spindle connection. The machine includes a tool changer with 22 pockets, capable of handling tools up to 6 kg in weight, 250 mm in length, and 75 mm in diameter, with a tool change time of approximately 5.2 seconds.
Rapid traverse rates reach up to 40 m/min for the X and Y axes and 25 m/min for the Z axis, facilitating efficient machining cycles. The machine is supplied complete with instruction manuals and a CE Declaration.
Visually, the machine shows signs of use with some wear visible on the base, indicating it has been operational. The control panel is located on the right side and includes a screen along with multiple buttons and switches for operation. An orange coiled air hose is present near the control panel, suggesting pneumatic support or cleaning capability.
Overall, the BRIDGEPORT VMC 1000/22 is a versatile and sturdy machining center suitable for various metalworking applications, combining precise control, substantial work capacity, and a comprehensive tooling system. Prospective buyers should verify all specifications and machine condition during an in-person inspection.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 69 |
| Last activity | Oct. 30, 2026 |
