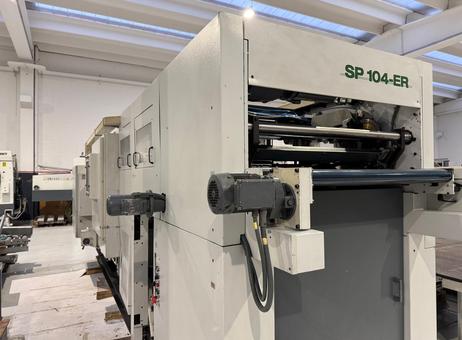

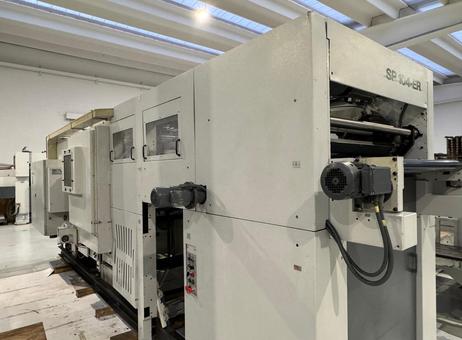

Bobst SP 104 ER Die-cutter
| Manufacturer | Bobst |
|---|---|
| Model | SP 104 ER |
| Year | 2001 |
| Location | Italy
|
| Category | Die-cutters / Embossers / Hot foil |
| Max. paper length | 104 cm |
| Max. paper width | 74 cm |
| Min. paper length | 40 cm |
| Min. paper width | 35 cm |
| Possible actions | Die Cut |
| Max sheets/hour | 8000 |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Bobst SP 104 ER |
| Product id | P250407160 |
| Language |
щанцоване Bobst SP 104 ER
Vysekávací stroj Bobst SP 104 ER
Bobst SP 104 ER Udstanser
Bobst SP 104 ER Stanze
Κόφτης Bobst SP 104 ER
Bobst SP 104 ER Die-cutter
Troqueladora Bobst SP 104 ER
Presse de découpe Bobst SP 104 ER
Izrezivač Bobst SP 104 ER
Bobst SP 104 ER Vágószerszám
Fustellatrice Bobst SP 104 ER
Štampas Bobst SP 104 ER
Bobst SP 104 ER Stansmachine
Maszyna sztancująca Bobst SP 104 ER
Cortador Bobst SP 104 ER
Decupator Bobst SP 104 ER
Bobst SP 104 ER Высекальная машина
Die-cutter Bobst SP 104 ER
Bobst SP 104 ER Skärare
Kesim Bobst SP 104 ER
|
Bobst SP 104 ER Die Cutting Machine, manufactured in 2001 by Bobst, a reputable Swiss company based in Lausanne. This industrial die-cutting machine is designed for processing paper, cardboard, and corrugated board up to 4 mm thick, making it suitable for various packaging and printing applications.

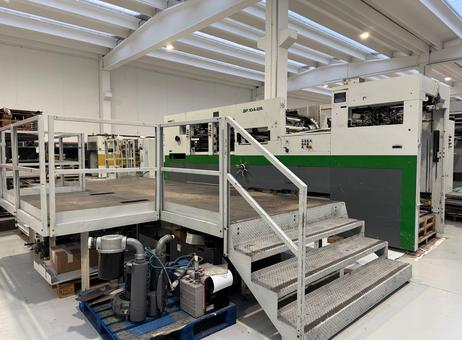

Key features include a footboard with safety barrier and a people protection device to enhance operator safety. The machine is equipped with a centerline device for quick job changeover and an electronic system for sheet passage control, ensuring precise and efficient operation. Adjustable centering is available at both extraction and exit points, complemented by an air conditioner for the electrical cabinet to maintain optimal operating conditions.
The machine incorporates the C.U.B.E. (Control Unit Bobst Electronic) system, managed by a microprocessor, along with a supplementary interface featuring an additional screen and keyboard for enhanced machine management. It has a main motor with variable frequency drive and a FRAME LOADER (Die Frame Turner) for easy frame and die change and preparation.
Additional functionalities include a stack platform with manual lateral stack correction lever, photocells for automatic cycle control at the feeder, stack height control at the front edge, rear stack guide, adjustable side blowers, multiple adjustment suction unit, and a stack platform descent safety system. The die-cutting device operates without a gripper band, and die-cutting force is measured by a load gauge for precision.
The machine features a quick-closing upper frame, a compensation plate made of ground steel, and a 3-frame drawer system with micrometric adjustment. It also includes an automatic pallet changing device, trim evacuation mat, emergency stop, and chain-train locking device.

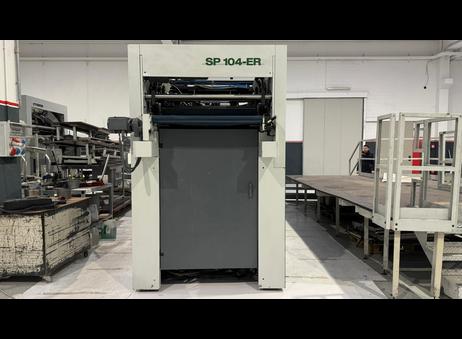

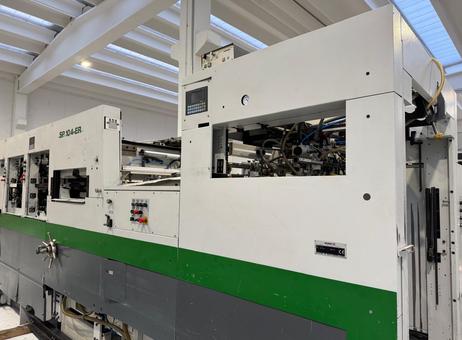

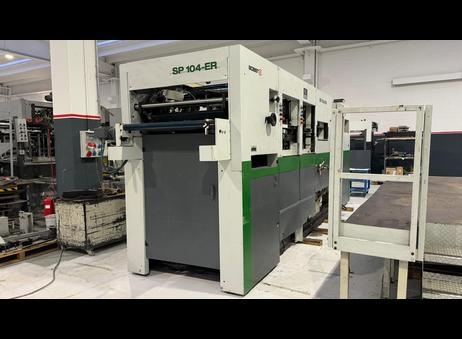

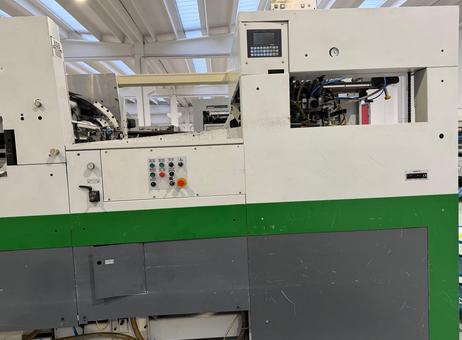

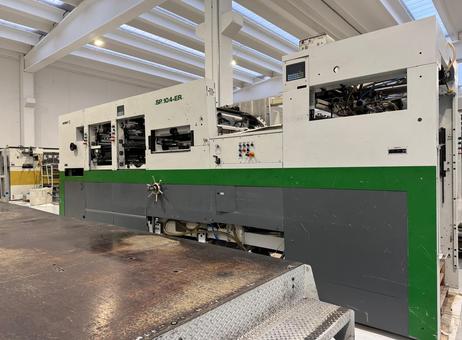

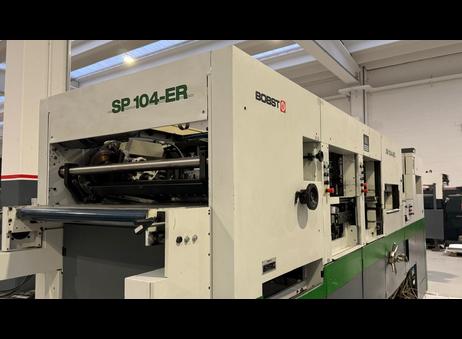

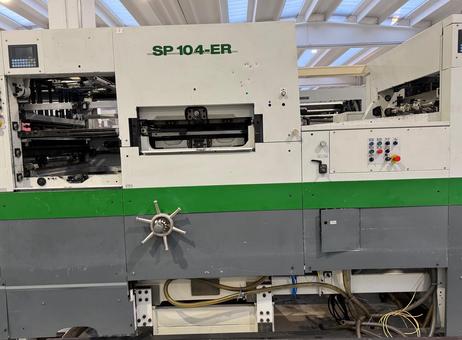

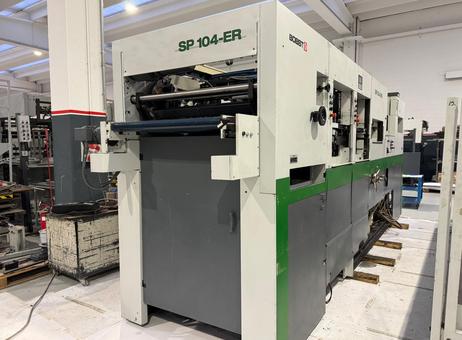

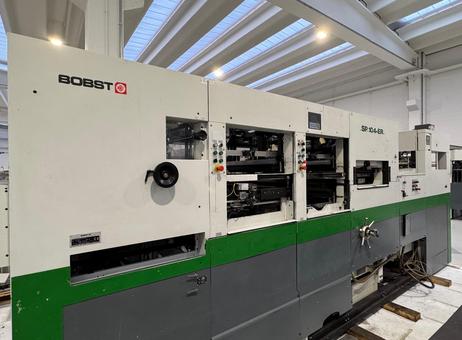

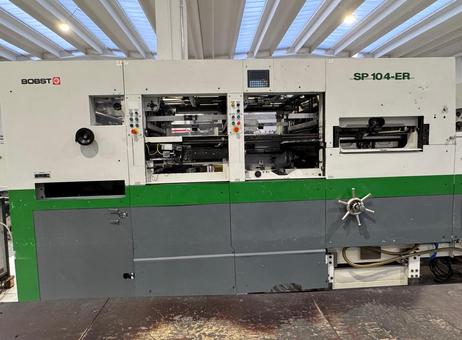

Visually, the machine has green and gray lower panels with white upper panels. The control panel with buttons and an emergency stop is located on the side, alongside a handwheel for manual adjustments. Some scratches and wear marks are visible on the gray lower panels, indicating normal use. An open section reveals internal mechanical parts and rollers.
This Bobst SP 104 ER die-cutting machine, CE marked and made in Switzerland, offers a comprehensive set of features for efficient and safe die-cutting operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Bobst SP 104 ER Die Cutting Machine
Manufacturer: Bobst
Model: SP 104 ER
Year of manufacture: 2001
Technical condition: as-is, where-is
Main features:
- Footboard with safety barrier
- Centerline device for quick job changeover
- Electronic device for sheet passage control
- Adjustable centering at extraction and exit
- Air conditioner for the electrical cabinet
- Gripper bars
- C.U.B.E. (Control Unit Bobst Electronic) system for machine management, controlled by microprocessor
- Main motor with variable frequency drive

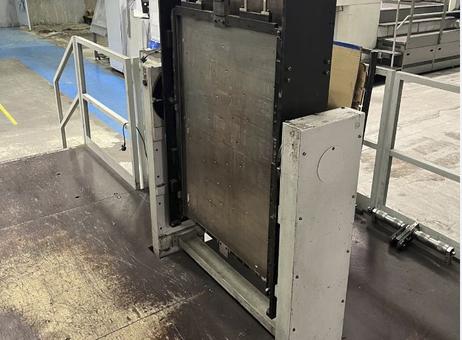

- FRAME LOADER (Die Frame Turner) for frame and die change and preparation
- SUPPLEMENTARY INTERFACE "CUBE" with additional screen and keyboard
- Machine raised by 415 mm
- Stack platform with lever for manual lateral stack correction
- Photocells for automatic cycle at the feeder
- Stack height control at the front edge
- Rear stack guide
- Adjustable side blowers
- Multiple adjustment suction unit
- Stack platform descent safety system
- AUTOMATIC LATERAL STACK CORRECTION
- MANUAL NON-STOP DEVICE
- Vertical positioning of the suction unit
- Top frame with manual lifting device
- Transport equipment for paper, cardboard and corrugated board up to 4 mm thick
- Side-guided conveyor belts
- SLACKENING DEVICE FOR THE MARGIN BELTS
- Die-cutting device without gripper gripper band
- Die-cutting force measurement by load gauge
- Quick-closing upper frame
- Compensation plate made of ground steel
- 3-frame drawer system with micrometric adjustment
- Automatic pallet changing device
- Trim evacuation mat
- Drawer frame system with micrometric adjustment
- People protection device
- Emergency stop and chain-train locking device
This die-cutting machine is designed to ensure high efficiency and safety during the die-cutting process, making it an excellent choice for companies in the industry.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 52 |
| Last activity | Oct. 30, 2026 |
70 years’ experience in 3th Generation family business
With more than 70 years’ experience, Camporese Macchine Grafiche Spa supplies machines and technology for Packaging and Printing Industries.
Camporese is run by third generation, is a successful company, well capitalized, with one-of-a-kind know-how, proud of its many achievement, internationally well-known, have a direct bearing on long-term business relationship with all its internal and external stakeholders.
Bobst SP 104 ER Die Cutting Machine
Manufacturer: Bobst
Model: SP 104 ER
Year of manufacture: 2001
Technical condition: as-is, where-is
Main features:
- Footboard with safety barrier
- Centerline device for quick job changeover
- Electronic device for sheet passage control
- Adjustable centering at extraction and exit
- Air conditioner for the electrical cabinet
- Gripper bars
- C.U.B.E. (Control Unit Bobst Electronic) system for machine management, controlled by microprocessor
- Main motor with variable frequency drive
- FRAME LOADER (Die Frame Turner) for frame and die change and preparation
- SUPPLEMENTARY INTERFACE "CUBE" with additional screen and keyboard
- Machine raised by 415 mm
- Stack platform with lever for manual lateral stack correction
- Photocells for automatic cycle at the feeder
- Stack height control at the front edge
- Rear stack guide
- Adjustable side blowers
- Multiple adjustment suction unit
- Stack platform descent safety system
- AUTOMATIC LATERAL STACK CORRECTION
- MANUAL NON-STOP DEVICE
- Vertical positioning of the suction unit
- Top frame with manual lifting device
- Transport equipment for paper, cardboard and corrugated board up to 4 mm thick
- Side-guided conveyor belts
- SLACKENING DEVICE FOR THE MARGIN BELTS
- Die-cutting device without gripper gripper band
- Die-cutting force measurement by load gauge
- Quick-closing upper frame
- Compensation plate made of ground steel
- 3-frame drawer system with micrometric adjustment
- Automatic pallet changing device
- Trim evacuation mat
- Drawer frame system with micrometric adjustment
- People protection device
- Emergency stop and chain-train locking device
This die-cutting machine is designed to ensure high efficiency and safety during the die-cutting process, making it an excellent choice for companies in the industry.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
