Contact us to receive an offer.
| Manufacturer | Asian Plastic Machinery |
|---|---|
| Model | Supermaster SM 260 HCCE |
| Year | 2005 |
| Location | Poland
|
This Asian Plastic Machinery Supermaster SM 260 HCCE injection moulding machine, manufactured in 2005, offers a clamping force of 260 tons and features a screw diameter of 60 mm. The injection system provides a shot volume of 735 cm³ and a shot weight of 640 grams, with an injection pressure of approximately 2059 bar. The machine dimensions are 6300 mm in length, 1700 mm in width, and 2300 mm in height, with a total weight of 12,100 kg.
The clamping unit includes a tie bar spacing of 560 mm by 560 mm, an opening stroke of 850 mm, a mold height of 260 mm, and a maximum daylight opening of 1100 mm. The ejector force is rated at 7.7 tons with a stroke of 180 mm. Clamping and opening speeds are 375 mm/sec and 500 mm/sec respectively.
The power system is equipped with a 45 kW pump motor and a thermal power of 22.3 kW, operating at a system pressure of 175 kgf/cm², supported by a capacity of 700 liters.

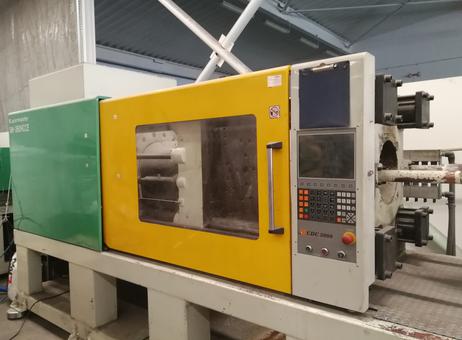

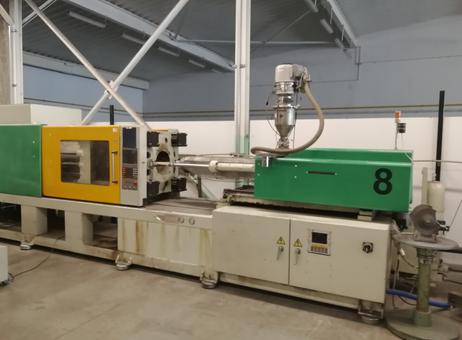

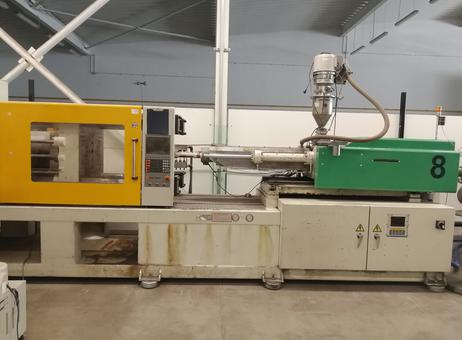

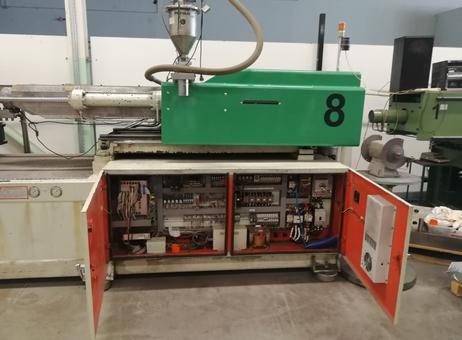

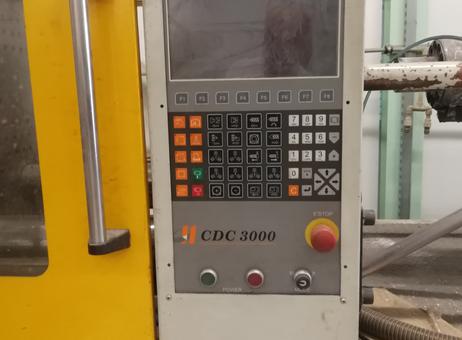

This machine is fitted with a hopper loader mounted on top, connected via a tube to the injection unit. The control panel, located on the yellow section of the machine, features a display and buttons, including an emergency stop and power and mode switches (CDC 3000). The electrical cabinet is accessible with visible wiring and components inside.
The machine base shows some signs of rust and dirt stains, which should be considered. The ejector mechanism requires replacement; however, the rest of the machine is reported to be operational. This model does not include a bi-metal screw or an integrated robot system. Overall, this injection moulding machine is suitable for various plastic manufacturing applications requiring robust clamping force and injection capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The ejector is to be replaced. The rest of the machine works fine
injection system:
Screw diameter - 60 mm
Injection volume - 735 cm3
Shot weight - 640 g
Injection pressure - 2100 kgf/cm3
Injection speed - 332 cm3/sec
Injection speed - 118 mm/sec
Screw pitch - 260 mm
Screw speed - 175 rpm
clamping unit:
Clamping force - 260 tons
Opening stroke - 850 mm
Mold height - 260 mm
Max daylight - 1100 mm
The distance between the tie rod - 560x560 mm
Ejector force - 7.7 tons
Throwing stork - 180 mm
Clamping speed - 375 mm/sec
Opening speed - 500 mm/sec
Power system:
Pump motor - 45 kW
Thermal power - 22.3 kW
System pressure - 175 kgf/cm2
Capacity - 700 liters
General:
Machine size - 6.3x1.7x2.3 m
Machine weight - 12.1 tons
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What year was this Asian Plastic Machinery Supermaster SM 260 HCCE manufactured?
This Asian Plastic Machinery Supermaster SM 260 HCCE was manufactured in 2005.
Is the ejector of this Asian Plastic Machinery Supermaster SM 260 HCCE functioning?
The ejector of this Asian Plastic Machinery Supermaster SM 260 HCCE is not functioning.
Does the rest of the machine operate well?
The rest of the machine operates well.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
