Contact us to receive an offer.
| Manufacturer | ARISA |
|---|---|
| Model | G-400-RST |
| Year | |
| Location | France
|
This ARISA G-400-RST mechanical press offers a robust capacity of 400 tons, suitable for heavy-duty industrial applications. The press features a variable ram stroke adjustable from 25 mm up to 250 mm, allowing for versatile operation depending on the task requirements. It operates at a stroke rate ranging between 25 and 50 strokes per minute, facilitating efficient production speeds.
The press table measures 1650 mm in width and 1000 mm in length, providing a substantial working surface. It includes a hole in the table measuring 820 by 670 mm and a table thickness of 170 mm, with an additional movable table thickness also at 170 mm. The ram dimensions are 1350 mm by 900 mm, and the groove depth is 510 mm. The distance between the uprights (columns) is 1370 mm, accommodating various tooling setups.
The machine's closing height is 510 mm, with a cylinder adjustment range of 150 mm and an ejection stroke of 80 mm. The overall press height is 4750 mm, and it weighs approximately 42,000 kg. It is powered by a 30 kW motor.

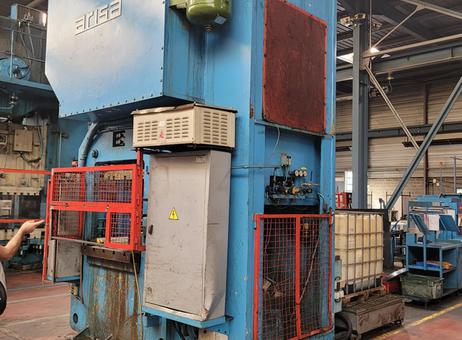

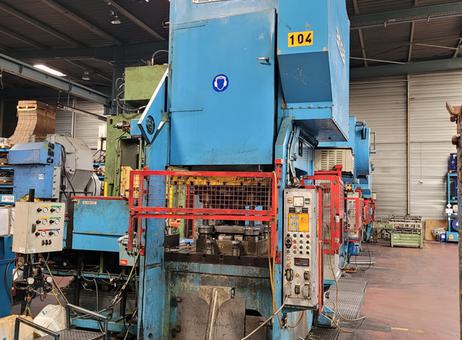

The press is painted blue and clearly labeled with the model designation "ARISA G 400 RST." It is equipped with a control panel featuring multiple buttons and switches located on the right side for operational control. Safety is addressed with red mesh guarding around the pressing area, including rear openings, to protect operators during use.
Electrical wiring and cables are connected near the base and control panel. The machine shows signs of wear and use, with visible dirt and grime on the lower front area and some rust and wear on the lower rear base section. It is situated in a large industrial workshop environment alongside other machinery and equipment. This press is designed for demanding industrial pressing tasks where reliability and safety are essential.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Capacity: 400 t
Variable stroke: 25-250 mm
Closing height: 510 mm
Cylinder adjustment: 150 mm
Stroke rate: 25-50 strokes/min
Table (left to right x front to back): 1650x1000 mm
Hole in table: 820x670 mm
Table thickness: 170 mm
Ram (left to right x front to back): 1350x900 mm
Movable table thickness: 170 mm
Groove depth: 510 mm
Distance between uprights: 1370 mm
Motor: 30kW
Ejection stroke: 80 mm
Press height: 4750 mm
Press weight: 42 t
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of press is this ARISA G-400-RST?
This ARISA G-400-RST is a 400-ton C-frame mechanical press.
What is the condition of the equipment?
This equipment is in good condition.
Is the machine currently powered on?
The machine is currently not under power.
Can this ARISA G-400-RST be inspected?
This ARISA G-400-RST mechanical press is available for inspection.
Is this equipment sold as is?
This equipment is sold as is.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
