| Manufacturer | Arburg |
|---|---|
| Model | ALLROUNDER 420 C |
| Year | 2022 |
| Location | Turkey
|
This listing features a German-made ARBURG ALLROUNDER 420 C injection moulding machine, manufactured in 2022. The machine is part of the ALLROUNDER series, known for its precision and efficiency in injection moulding processes. It offers a clamping force of 100 tons (1000 kN), suitable for medium-sized moulds. The tie bar spacing measures 420 mm both horizontally and vertically, providing a compact yet versatile mould mounting area. The platen dimensions are 570 mm in length and width, accommodating various mould sizes.
The machine includes an injection unit compliant with EUROMAP standard 290. It has an opening force of 250 kN with a maximum opening stroke of 500 mm and platen daylight of 750 mm, allowing for the installation and removal of moulds with ease. The ejector system delivers a force of 40 kN with a stroke length of 175 mm.
Additional technical specifications include material throughput rates ranging from 20.5 to 24.5 kg/h for polystyrene (PS) and 10.5 to 12.5 kg/h for polyamide 6.6 (PA6.6). The holding pressure is adjustable with values of 2500, 2000, and 1530 bar. The nozzle contact force is 60 kN, and the nozzle retraction stroke measures 240 mm. The machine has a net weight of approximately 3650 kg.

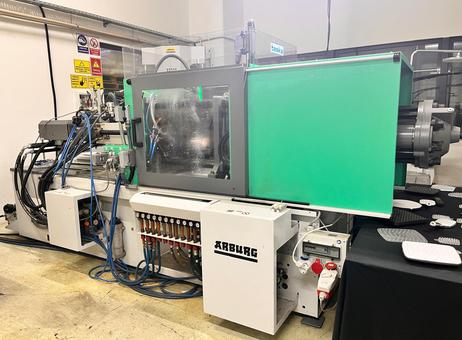

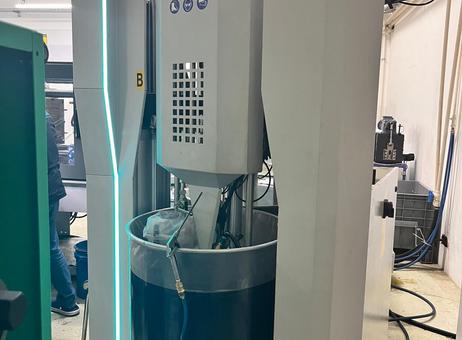

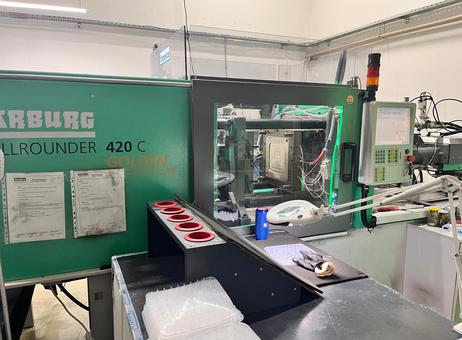

The machine is equipped with a control panel featuring a screen and buttons on the right side for operational control. An injection mould is visible inside the machine, connected with wiring, indicating readiness for production setup. A separate tall control unit labeled 'WAGNER REINHARDT-TECHNIK' with touchscreen and buttons is included, accompanied by two large cylindrical containers attached to its sides. The control unit and surrounding area appear clean and well-maintained. Accessories observed include a work table with gloves, a spray bottle, and a magnifying lamp attached, supporting operational convenience.
This ARBURG ALLROUNDER 420 C GOLDEN EDITION machine combines robust technical specifications with well-maintained components, suitable for various injection moulding applications requiring precision and reliability.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
GERMANY ARBURG ALLROUNDER 420 C
Machine Model ARBURG ALLROUNDER 420 C GOLDEN EDITION
Distance Between Tie Bars 420 × 420 mm
Clamping Force 1000 kN
Injection Unit (EUROMAP) 290
Opening Force 250 kN
Max Opening Stroke 500 mm
Platen Daylight 750 mm
Mould Mounting Platens 570 × 570 mm
Ejector Force 40 kN
Ejector Stroke 175 mm
Material Throughput (PS) 20.5 – 24.5 kg/h
Material Throughput (PA6.6) 10.5 – 12.5 kg/h
Holding Pressure 2500 / 2000 / 1530 bar
Nozzle Contact Force 60 kN
Nozzle Retraction Stroke 240 mm
Machine Net Weight 3650 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
