Contact us to receive an offer.
| Manufacturer | Arburg |
|---|---|
| Model | Allrounder 320K 700-250 |
| Year | 2004 |
| Location | Poland
|
The Arburg Allrounder 320K 700-250 is a robust injection molding machine designed for efficient plastic part production. Manufactured in 2004, this model features a clamping force of 70 tons, ensuring secure mold closure during operation. The machine's injection unit is equipped with a 40 mm diameter screw, delivering an injection pressure of up to 1390 bar and a shot volume of 188 cm³, corresponding to a shot weight of 158 grams. The injection unit's L/D ratio is 17.5, optimizing plasticizing efficiency.
The clamping unit supports a mold height range between 200 mm and 400 mm, with an opening stroke of 250 mm and a maximum daylight of 650 mm, accommodating various mold sizes. The tie bar spacing measures 320 mm both horizontally and vertically, providing ample space for mold installation. The ejector system offers a force of 30 kN and an ejector stroke of 70 mm.
This machine is powered by a 15 kW pump motor, with a total power consumption of 23.6 kW, and requires an oil filling of 120 liters. Its overall dimensions are 3400 mm in length, 1500 mm in width, and 2000 mm in height, with a weight of 2200 kg, making it a substantial yet manageable piece of equipment.

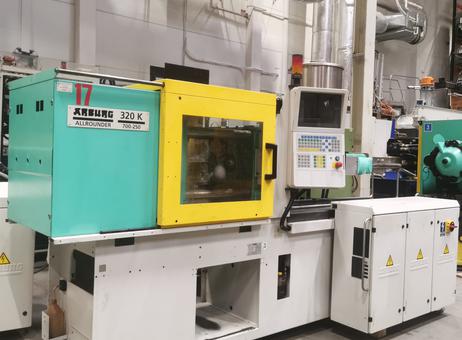

The control system is the Selogica unit, known for its reliability and user-friendly interface. The machine is painted in a distinctive turquoise and yellow color scheme and includes a control panel with a screen and multiple buttons on the right side for operational control. A yellow safety door with a transparent window protects the molding area, enhancing operator safety while allowing visual monitoring. The machine appears to be in good physical condition with no visible damage, indicating careful maintenance and handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Arburg Allrounder 320K 700-250
Control: Selogica
Injection Unit: .../250
Screw diameter: 40 mm
Injection pressure: 1390 bar
Injection volume: 188 ccm
Shot capacity: 158 g
Moc silnika pompy: 15 kW
LS/D ratio: 17,5
Clamping Unit: 700/...
Clamping force: 70 t
Distance between tie bars: 320 mm
Ejection force: 30 kN
Mould height: 200-400 mm
Opening storke: 250 mm
Max.Daylight: 650 mm
Ejector stroke: 70 mm
General information:
Total power consumption: 23,6 kW
Oil filling: 120 l
Weight: 2200 kg
Machine dimensions(m) LxWxH: 3,4 x 1,5 x 2,0 m
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
