Contact us to receive an offer.
| Manufacturer | ARBURG |
|---|---|
| Model | 40T 270 U 400-100 |
| Year | 2006 |
| Location | France
|

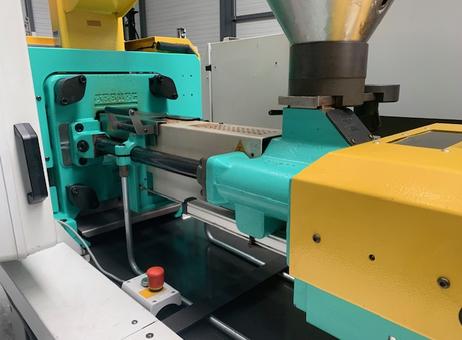

This ARBURG 40T 270 U 400-100 injection molding machine, manufactured in 2006, offers a robust clamping force of 40 tons (400 kN) suitable for a range of molding applications. The machine is equipped with an injection unit featuring a 25 mm screw diameter and a calculated injection volume of 49 cm³, providing a length-to-diameter (L/D) ratio of 20. It achieves a maximum injection rate of 146 cm³/s with a material pressure capacity of 2000 bar, enabling efficient processing of various thermoplastics.
The clamping unit has an opening stroke of 300 mm, a minimum mold thickness of 200 mm, and a maximum distance between platens of 500 mm. The tie bar spacing measures 270 mm both horizontally and vertically, while the platen dimensions are 380 mm by 380 mm, accommodating medium-sized molds. The machine’s total weight is approximately 1915 kg.

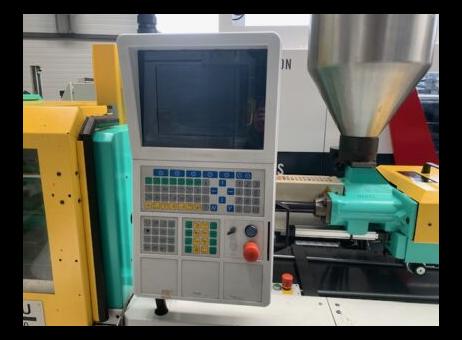

Power specifications include a heating power of 15 kW and a total installed power of 22 kW, with an oil capacity of 125 liters to support hydraulic functions. The machine features a user-friendly control panel with a screen, multiple buttons, keys, and an emergency stop button for operational safety. A hopper for material feeding is attached at the top right side, facilitating continuous production.

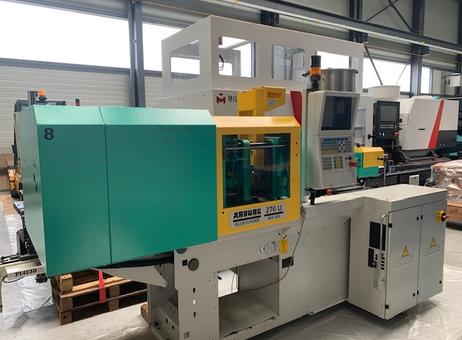

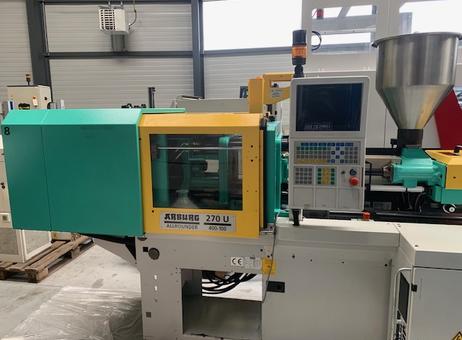

The machine is finished in green and yellow and includes a safety light indicator mounted on top. Visual inspections indicate the machine is clean and well-maintained, with no visible damage to key components such as the injection unit, clamping mechanism, or control panel. This ARBURG Allrounder model is a reliable choice for injection molding tasks requiring precision and consistent performance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Injection unit
Screw diameter: 25 mm
Calculated injection volume: 49 cm3
Length/diameter ratio: 20 L/D
Maximum injection rate: 146 cm3/s
Material pressure: 2000 bar
Closing unit
Closing force: 400 kN
Opening stroke: 300 mm
Min. mold thickness: 200 mm
Max. distance between platens: 500 mm
Distance between tie-bars: 270 x 270 mm
Platen dimensions: 380 x 380 mm
General
Heating power: 15 kW
Total installed power: 22 kW
Oil quantity : 125 L
Weight : 1915 Kg
Other
Equipment: Tilting machine
Commissioning : 2006
Number of hours: h
Tonnage: 40
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this ARBURG 40T 270 U 400-100 manufactured?
This ARBURG 40T 270 U 400-100 injection molding machine was manufactured in 2006.
Is this injection molding machine currently under power?
This injection molding machine is visible under power.
Is this ARBURG 40T 270 U 400-100 available for viewing?
This ARBURG 40T 270 U 400-100 injection molding machine is available in the seller's premises.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
