| Manufacturer | ARBURG |
|---|---|
| Model | 100T 420 C 250 |
| Year | 2001 |
| Location | France
|
This ARBURG injection moulding machine, model 100T 420 C 250, is a robust industrial unit manufactured in 2001. It features a clamping force of 100 tons (1000 kN), suitable for various injection moulding applications requiring substantial pressure. The machine has a screw diameter of 35 mm and a calculated injection volume of 144 cm³, with a length-to-diameter ratio of 20 L/D, enabling precise material injection. It operates at a pressure on the material of 1820 bar, ensuring efficient mould filling.
The machine's opening stroke is 250 mm, accommodating moulds with a minimum and maximum thickness of 250 mm. The maximum distance between trays is 750 mm, and the passage between columns measures 420 x 420 mm, providing ample space for mould installation. The tray dimensions are 570 x 570 mm.
In terms of power, the heating system delivers 18.5 kW, while the total installed power amounts to 26.6 kW. The machine uses approximately 230 liters of oil for hydraulic operations.

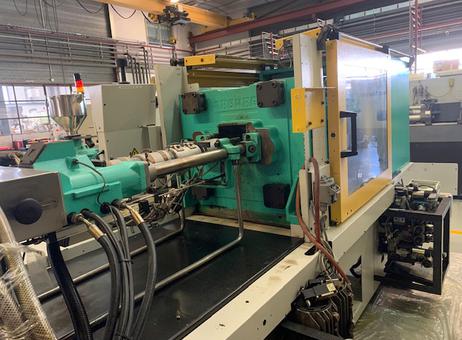

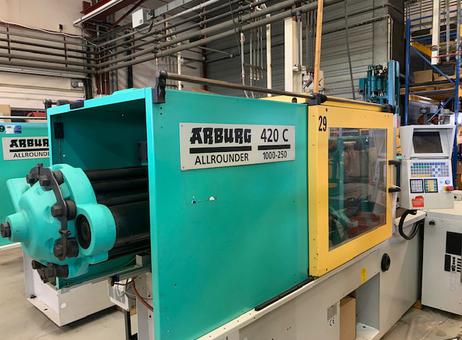

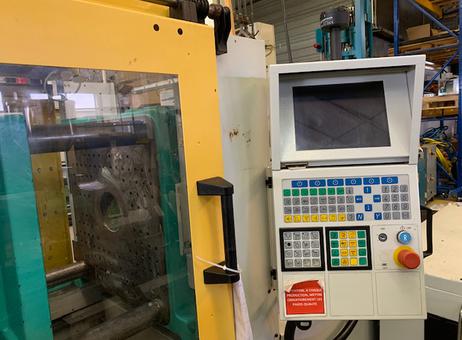

The injection moulding machine is finished in a turquoise and yellow color scheme and includes a large clamping unit with a hydraulic or mechanical clamp at the front. A yellow safety door with a transparent window and black handle is present on the clamping unit, enhancing operator safety. The control panel, located on the machine's side, features a screen and keypad, though the screen is currently off.

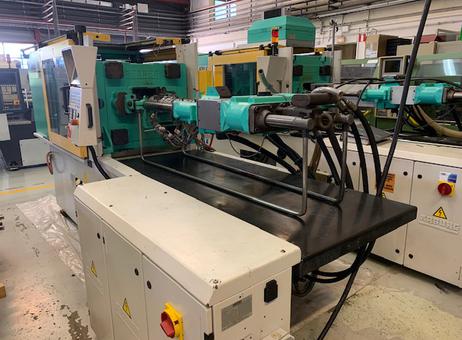

Hydraulic hoses and electrical cables are connected to the injection unit, which is mounted over a black metal table. The machine shows signs of use, including slight dirt and wear on metal surfaces, particularly on lower parts, as well as minor paint wear near the manufacturer's label. A red warning label with French text is positioned below the control panel.
Overall, this ARBURG 100T 420 C 250 injection moulding machine combines solid technical specifications with safety features and a well-maintained appearance, suitable for various production environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Screw diameter: 35 mm
Calculated injection volume: 144 cm³
Length/diameter ratio: 20 L/D
Pressure on the material: 1820 bars
Closing force: 1000 kN
Opening stroke: 35/250 mm
Mini /Max Mold Thickness: 250 mm
Max distance between tray: 750 mm
Passage between columns: 420 x 420 mm
Dimensions of the trays: 570 x 570 mm
GENERAL
Heating power: 18.5 kW
Total installed power: 26.6 kW
Oil quantity: 230 l.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
