Contact us to receive an offer.
| Manufacturer | ANAYAK |
|---|---|
| Model | HVM 3800 |
| Year | 2001 |
| Location | Netherlands
|

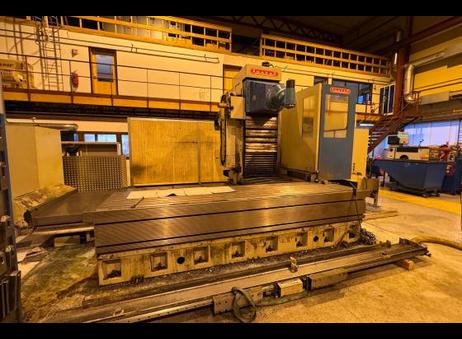

This listing features an ANAYAK HVM 3800 CNC bed type milling machine manufactured in 2001. It is a large industrial milling machine designed for heavy-duty machining tasks. The machine measures approximately 8820 mm in length, 6250 mm in width, and 3910 mm in height, with a total weight of 33,000 kg.

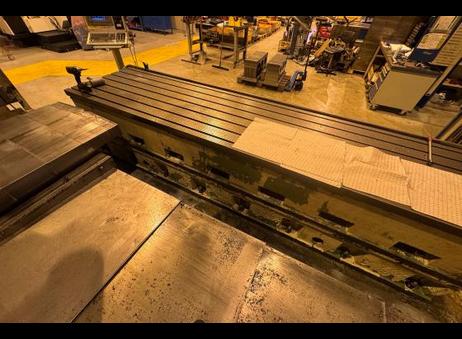

The machine is equipped with a substantial horizontal work table measuring 3800 mm in length and 1000 mm in width, featuring T-slots for secure mounting of workpieces. The table can support a maximum load of up to 30,000 kg, making it suitable for machining large and heavy components.
The milling machine operates along three axes with travel distances of 3200 mm on the X-axis, 1200 mm on the Y-axis, and 1460 mm on the Z-axis. It has a spindle motor power of 41 kW and a maximum spindle speed of 3000 rpm, with an ISO/Bt/Mk 50 spindle taper. The feed rates for each axis are up to 10,000 mm/min, facilitating efficient material removal.
Additional features include a chain tool changer with 30 positions, central lubrication system, and a chip conveyor for effective chip removal during operation. The milling head offers auto-indexing capabilities at 2.5 x 2.5 degrees. The machine comes with a full set of documentation and has been owned by a single previous user.

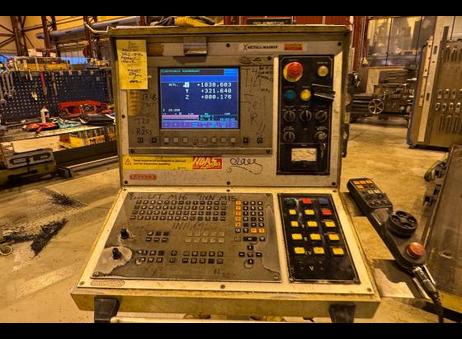

Visual inspection shows the machine has signs of wear consistent with regular use but remains structurally intact. The work table and milling head exhibit some surface wear and discoloration, while the control panel shows signs of frequent use. The brand name ANAYAK is prominently displayed on the machine's column and head. Overall, this machine is a robust and capable CNC milling solution for demanding manufacturing environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Chip conveyor
Double doors front side
Chain Tool chnager 30 positions
Central lubrication
IKZ 16 Bar and 2,2 kW Flow 16L/Min
Tool blocking power 1968 daN
Full set books and 1e owner machine
X-Axis
3200 mm
Y-Axis
1200 mm
Z-Axis
1460 mm
Table Length
3800 mm
Table Width
1000 mm
Table load
30000
Power on spindle
41 kW
Spindle speeds
3000 Rpm
Spindle Taper
50 ISO/Bt/Mk
Feed rate X-Axis
10000 mm/min.
Feed rate Y-Axis
10000 mm/min.
Feed rate Z-Axis
10000 mm/min.
Millinghead auto-index
2.5 x 2.5 °
Working hours
10659 H
Dimensions (Estimate)
Length
8820 mm
Width
6250 mm
Height
3910 mm
Weight
33000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 300 |
| Last activity | Oct. 30, 2026 |
Chip conveyor
Double doors front side
Chain Tool chnager 30 positions
Central lubrication
IKZ 16 Bar and 2,2 kW Flow 16L/Min
Tool blocking power 1968 daN
Full set books and 1e owner machine
X-Axis
3200 mm
Y-Axis
1200 mm
Z-Axis
1460 mm
Table Length
3800 mm
Table Width
1000 mm
Table load
30000
Power on spindle
41 kW
Spindle speeds
3000 Rpm
Spindle Taper
50 ISO/Bt/Mk
Feed rate X-Axis
10000 mm/min.
Feed rate Y-Axis
10000 mm/min.
Feed rate Z-Axis
10000 mm/min.
Millinghead auto-index
2.5 x 2.5 °
Working hours
10659 H
Dimensions (Estimate)
Length
8820 mm
Width
6250 mm
Height
3910 mm
Weight
33000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing features an ANAYAK HVM 3800 CNC bed type milling machine manufactured in 2001. It is a large industrial milling machine designed for heavy-duty machining tasks. The machine measures approximately 8820 mm in length, 6250 mm in width, and 3910 mm in height, with a total weight of 33,000 kg.
The machine is equipped with a substantial horizontal work table measuring 3800 mm in length and 1000 mm in width, featuring T-slots for secure mounting of workpieces. The table can support a maximum load of up to 30,000 kg, making it suitable for machining large and heavy components.
The milling machine operates along three axes with travel distances of 3200 mm on the X-axis, 1200 mm on the Y-axis, and 1460 mm on the Z-axis. It has a spindle motor power of 41 kW and a maximum spindle speed of 3000 rpm, with an ISO/Bt/Mk 50 spindle taper. The feed rates for each axis are up to 10,000 mm/min, facilitating efficient material removal.
Additional features include a chain tool changer with 30 positions, central lubrication system, and a chip conveyor for effective chip removal during operation. The milling head offers auto-indexing capabilities at 2.5 x 2.5 degrees. The machine comes with a full set of documentation and has been owned by a single previous user.
Visual inspection shows the machine has signs of wear consistent with regular use but remains structurally intact. The work table and milling head exhibit some surface wear and discoloration, while the control panel shows signs of frequent use. The brand name ANAYAK is prominently displayed on the machine's column and head. Overall, this machine is a robust and capable CNC milling solution for demanding manufacturing environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
