Contact us to receive an offer.
| Manufacturer | Ampack |
|---|---|
| Model | AF 6/6 |
| Year | 2004 |
| Location | Netherlands
|
Manufacturer: Ampack
Model: AF 6/6
Type: Linear cup filler with 6 filling heads
Year of Manufacture: 2004
Capacity: Up to 10,800 cups per hour
Cup Size Compatibility: Round cups with diameters of 112 mm and 130 mm
Dimensions: 1250 x 245 x 350 mm (excluding control panel and cup infeed system)
Weight: Approximately 17,000 kg

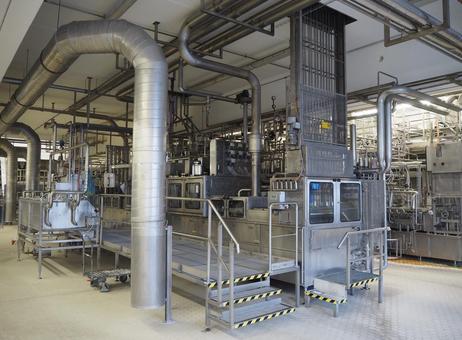

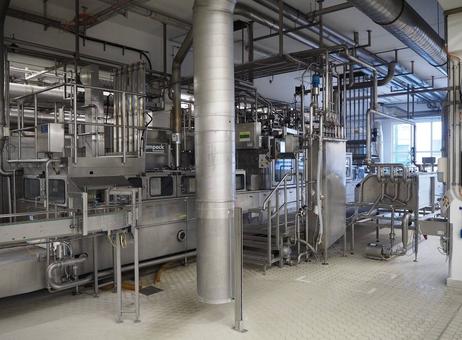

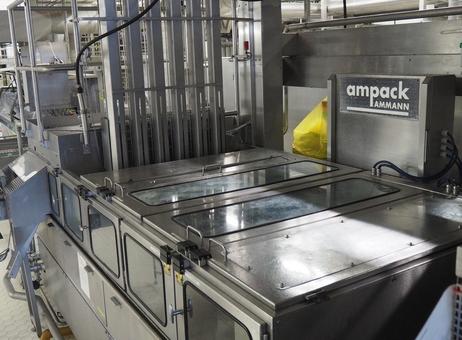

This Ampack AF 6/6 linear cup filling machine is designed for high-speed filling applications, capable of processing up to 10,800 cups per hour. It handles round cups of two sizes, 112 mm and 130 mm in diameter, making it suitable for various product packaging needs.

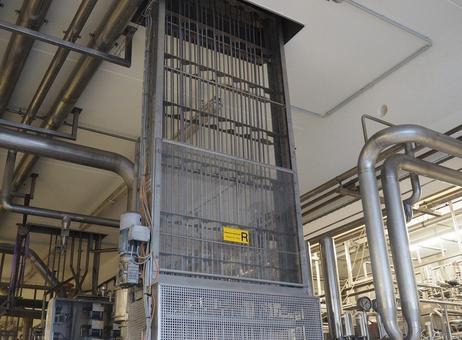

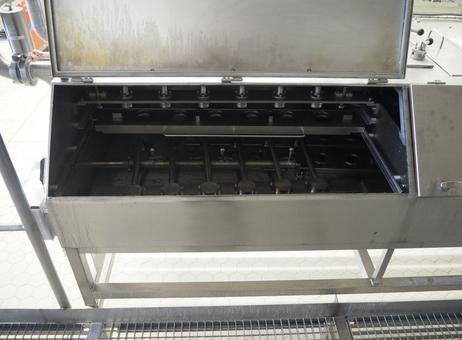

The machine features an automatic cup infeed system located above the main unit, facilitating efficient cup handling and destacking with detection for missing or double cups. It incorporates a cup decontamination process using hydrogen peroxide (H2O2) to ensure hygiene.

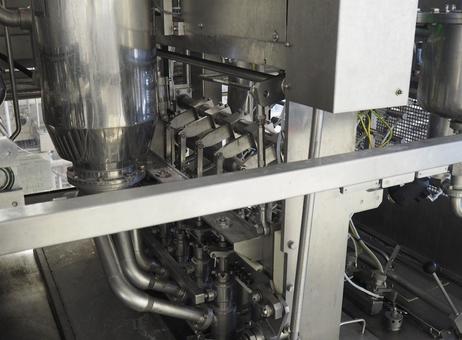

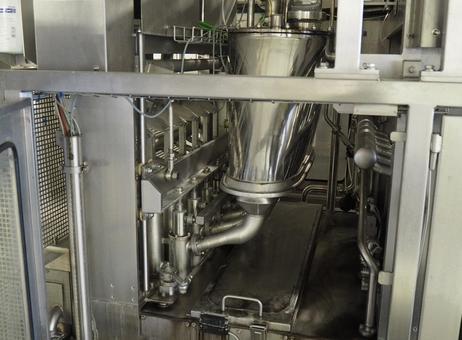

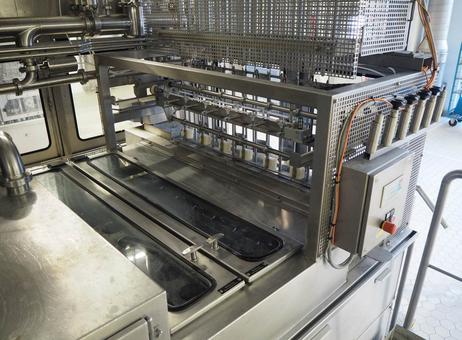

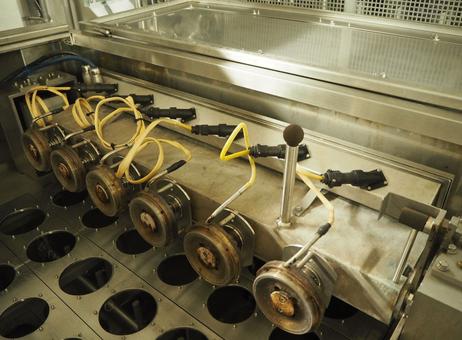

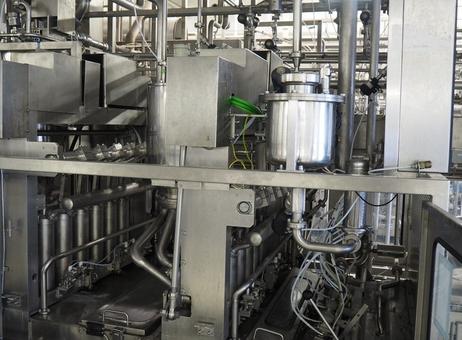

Filling is performed through six dosing stations, including specialized dosers for oil injection as an antistick agent, piston dosers for fruit pulp and whipped cream, and main dosers equipped with jacketed, agitator-equipped hoppers for viscous products. One doser is designed for side-by-side duo filling with a rotating nozzle to create swirl effects.

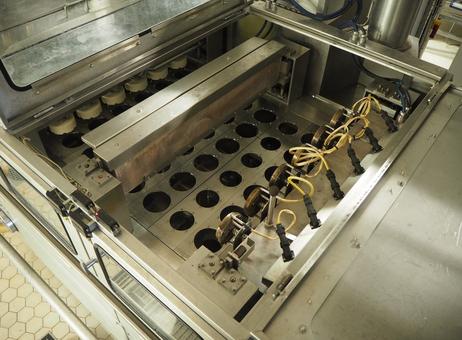

Sealing is achieved with two heat sealing stations suitable for both cup sizes, featuring a seal leak detection system. The machine also includes a snap-on lid application and an outfeed conveyor for finished products.
Additional features include servo-driven cup lifters, a sterile air system with external air blowers, an automatic central greasing system, and easy format change capabilities. Control systems consist of a Siemens S7 PLC and Siemens Touch Screen HMI. A clean-in-place (CIP) system with a collecting tank, pump, and valves is integrated for maintenance.
Please note the controls are currently non-functional, and the machine is sold as-is. Documentation is available for reference.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Ampack
Model: AF 6/6
Type: Linear cup filler with 6 heads
Year of Manufacture: 2004
Capacity: 10,800 cups per hour
Cup Size: Round, 112 mm and 130 mm diameter
Dimensions: 1250 x 245 x 350 mm plus control panel and cup infeed system
Weight: 17,000 kg
Condition: Good mechanical condition, complete; controls are non-functional
Location: Netherlands
Technical Condition: Sold as-is, where-is

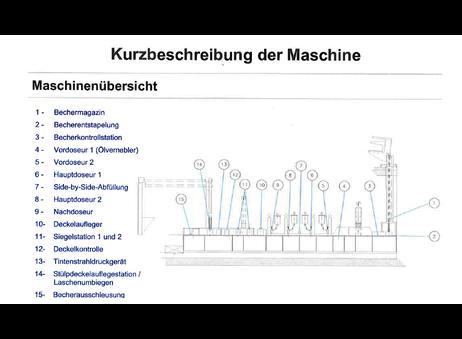

Features:
- Automatic cup infeed system positioned above the machine on the second floor
- Cup destacking with "No" and "Double" cup detection
- Cup decontamination using hydrogen peroxide (H2O2)
- Multiple dosing stations including:
- Predoser 1: Oil injection (sunflower or corn oil) as antistick agent
- Predoser 2: Piston doser (20-175 ml) for fruit pulp (400-2000 cP viscosity, particles up to 16 mm)

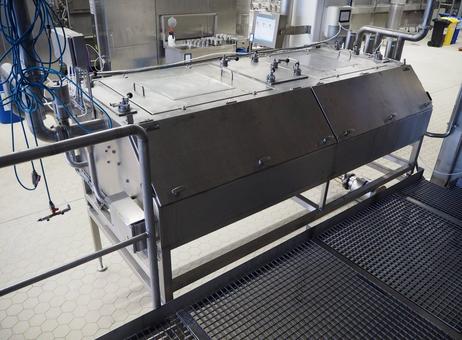

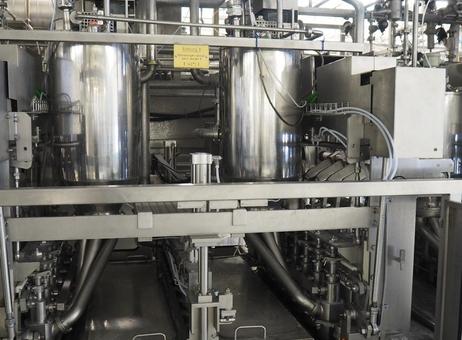

- Doser 3: Main doser 1 (50-525 ml) for viscous products with jacketed, agitator-equipped hopper (CIP cleanable)
- Doser 4: Main doser 2 (80-800 ml) for viscous products (400-2000 cP, particles up to 18 mm) with jacketed, agitator-equipped hopper
- Doser 5: Piston doser (20-175 ml) with negative valve suitable for whipped cream up to 150% overrun
- Doser 6: Combined doser for side-by-side duo filled products with rotating filler nozzle for swirl effects
- Seal decontamination by H2O2 spray and UV lamps with vacuum dispensing
- Two heat sealing stations for 112 mm and 130 mm cups with seal leak detection system
- Snap-on lid application and outfeed conveyor

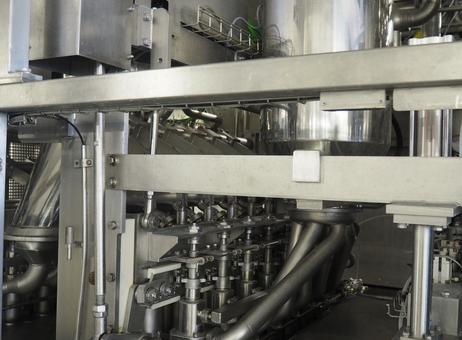

- Servo-driven cup lifters under dosers

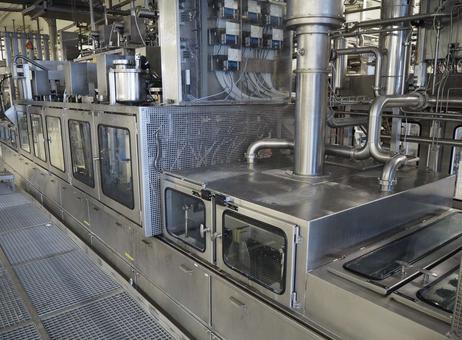

- Fully guarded machine with sterile air system and two external Becker air blowers
- Automatic central greasing system
- Easy format change by moving chain one step
- Controls: Siemens S7 PLC and Siemens Touch Screen HMI
- CIP system including collecting tank, pump, and valves
- Complete documentation available
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 321 |
| Last activity | Oct. 28, 2026 |
Manufacturer: Ampack
Model: AF 6/6
Type: Linear cup filler with 6 heads
Year of Manufacture: 2004
Capacity: 10,800 cups per hour
Cup Size: Round, 112 mm and 130 mm diameter
Dimensions: 1250 x 245 x 350 mm plus control panel and cup infeed system
Weight: 17,000 kg
Condition: Good mechanical condition, complete; controls are non-functional
Location: Netherlands
Technical Condition: Sold as-is, where-is
Features:
- Automatic cup infeed system positioned above the machine on the second floor
- Cup destacking with "No" and "Double" cup detection
- Cup decontamination using hydrogen peroxide (H2O2)
- Multiple dosing stations including:
- Predoser 1: Oil injection (sunflower or corn oil) as antistick agent
- Predoser 2: Piston doser (20-175 ml) for fruit pulp (400-2000 cP viscosity, particles up to 16 mm)
- Doser 3: Main doser 1 (50-525 ml) for viscous products with jacketed, agitator-equipped hopper (CIP cleanable)
- Doser 4: Main doser 2 (80-800 ml) for viscous products (400-2000 cP, particles up to 18 mm) with jacketed, agitator-equipped hopper
- Doser 5: Piston doser (20-175 ml) with negative valve suitable for whipped cream up to 150% overrun
- Doser 6: Combined doser for side-by-side duo filled products with rotating filler nozzle for swirl effects
- Seal decontamination by H2O2 spray and UV lamps with vacuum dispensing
- Two heat sealing stations for 112 mm and 130 mm cups with seal leak detection system
- Snap-on lid application and outfeed conveyor
- Servo-driven cup lifters under dosers

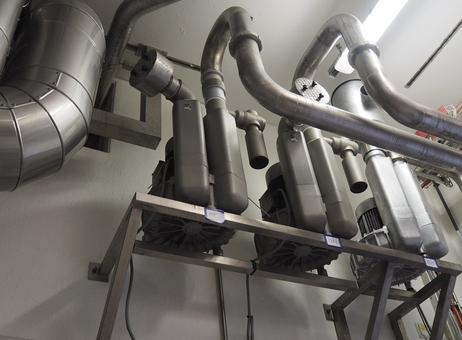

- Fully guarded machine with sterile air system and two external Becker air blowers
- Automatic central greasing system
- Easy format change by moving chain one step

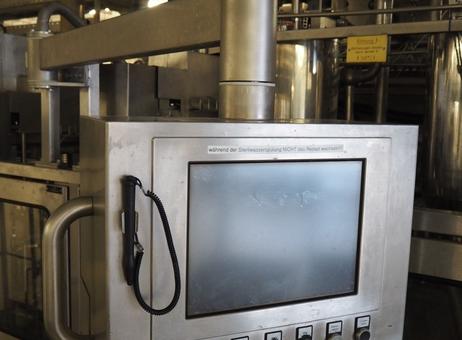

- Controls: Siemens S7 PLC and Siemens Touch Screen HMI
