Contact us to receive an offer.
| Manufacturer | Amada |
|---|---|
| Model | AC255 Electric Punch Machine |
| Year | 2009 |
| Location | United Kingdom
|

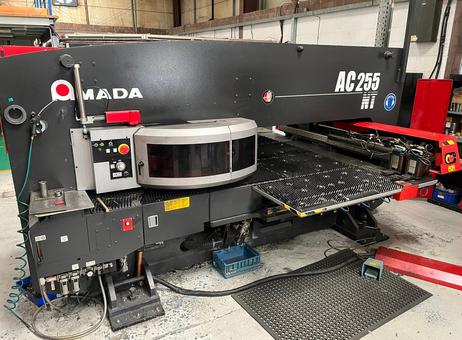

This listing is for an Amada AC255 Electric Punch machine, manufactured in 2009. The machine features a robust bridge-type frame construction designed for stability and precision during operation. It is equipped with the AMNC-F numerical control system, which is a Windows-based network control, providing advanced programming capabilities and ease of use. The control panel includes a 15-inch color LCD touchscreen, facilitating user interaction and monitoring.
The punch press has a capacity of 200 kN and operates with a single AC servo drive, ensuring efficient and precise punching actions. It includes a turret with 51 stations, accommodating various punch sizes: 24 stations for A type punches up to 12.7 mm diameter, 18 B type stations up to 31.7 mm, 3 C type stations up to 50.8 mm, 2 D type stations up to 88.9 mm, 3 G type stations up to 31.7 mm, and 1 H type station up to 50 mm. Additionally, the turret supports auto indexing with 3 B type and 1 C type stations.
The machine has an axis traverse distance of 1270 mm by 1270 mm and can handle a maximum workable sheet size of 1270 mm by 2500 mm with auto repositioning. It supports a maximum sheet thickness of 3.2 mm. The maximum feed rates are 80 m/min on the X-axis and 60 m/min on the Y-axis. The hit rates are 370 hits per minute on the X-axis and 260 hits per minute on the Y-axis, measured at a 25.4 mm pitch and 5 mm stroke for punching patterns.
Punching accuracy is maintained within ±0.1 mm, and ±0.07 mm in FA mode, ensuring high precision for detailed work. The machine can handle materials with a maximum mass of 50 kg for F1 materials and 150 kg for F4 materials. The total machine mass is approximately 12,000 kg, reflecting its solid build quality suitable for industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
ModelAmada AC255 Electric Punch
Photo taken prior to preparation
Year2009
Frame ConstructionBridge Type
Numerical ControlAMNC-F
Press Capacity200 kN
Drive SystemSingle AC Servo Drive
Turret (No. of Stations) 51 Stations:
24 x A (Max. Dia. 12.7mm)
18 x B (Max. Dia. 31.7mm)
3 x C (Max. Dia. 50.8mm)
2 x D (Max. Dia. 88.9mm)
3 x G (Max. Dia. 31.7mm)
1 x H (Max. Dia. 50mm)
Auto Indexing:
3 x B (Max Dia 31.7mm)
1 x C (Max. Dia. 50.8mm)
Axis Traverse Distance1270 mm x 1270 mm
Workable Maximum Sheet Size (with auto repositioning)1270 mm x 2500 mm
Max Mass of Material50 (F1) 150 (F4)
Maximum Feed Rate X: 80m/min Y: 60m/min
Hit Rate
X axis 370 hpm Y axis 260hpm (at 25.4mm pitch & 5mm stroke for punching pattern)
Punching Accuracy+/- 0.1mm and +/- 0.07mm (FA mode)
Maximum Sheet Thickness3.2 mm
ControlAMNC-F Windows Based Network Control
15″ Colour LCD Touch Screen
Machine Mass12 000 KG
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
