Contact us to receive an offer.
| Manufacturer | - |
|---|---|
| Model | - |
| Year | 1960 |
| Location | Germany
|
| Category | Complete lines - Plastic extrusion |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 17/10/2026 |
| Product id | P260308604 |
| Language |
Линия за екструзионно пресоване
LINKY PRO EXTRUZI
EKSTRUDERINGSPRESSLINJE
EXTRUSIONSPRESSEANLAGE
ΓΡΑΜΜΗ ΠΡΕΣΣΑΣ ΕΞΤΡΟΥΣΙΟΝ
EXTRUSION PRESS LINE
LÍNEA DE PRENSAS DE EXTRUSIÓN
LIGNE DE PRESSES D'EXTRUSION
Linija ekstruzijske preše
EXTRÚZIÓS PRESSZOLÓ SOR
LINEA DI ESTRUSIONE
EKSTRUZIJOS PRESŲ LINIJA
EXTRUSIEPERSLIJN
LINIA PRAS EKSTRUDACYJNYCH
LINHA DE PRENSAS DE EXTRUSÃO
LINIE DE PRESARE PRIN EXTRUZIE
ЛИНИЯ ЭКСТРУЗИОННЫХ ПРЕССОВ
Linija ekstruzionih presa
EXTRUDERINGSLINJE
EKSTRÜZYON PRES HATTI
|
This extrusion press line, manufactured in 1960, offers a pressing capacity of 3500 metric tons force with a total press weight of 340 tons. It accommodates billets sized 343 x 900 mm, which can be modified to 14 inches by 1.0 meter. The main piston measures 1200 mm in diameter with a 460 mm diameter secondary piston, and it features a stroke length of 2120 mm.
The operating speeds include an automatic range from 0.1 to 10 mm per second and a retreat speed of 300 mm per second. The hydraulic system operates at a working pressure of 315 bar and underwent a complete overhaul in 2012. Pumping is managed by three Bosch Rexroth A2V500 pumps rated at 250 kW each and one A4VSO355 pump rated at 200 kW at 1500 rpm.
Control of the line is facilitated by an Allen Bradley Control Logix L72S (Guard Logix) system, featuring a PanelView Plus 1500 interface and Ethernet I/P connectivity, along with SSI encoders for precise control.

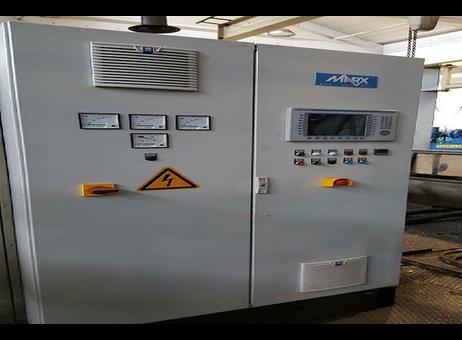

The shear unit is a vertical shear capable of delivering 157 megapascals force with a knife speed of 200 mm per second. Heating is provided by a billet furnace equipped with modernized gas burners and a Marx Iserlohn container heating system.
Material handling includes a Smith Engineering double puller and a 200 kp stretcher capable of handling lengths from 5.7 to 33 meters. Ancillary equipment comprises two Gautschi die furnaces, a Nederman cutting chips unit, and an Ekatech scrap system.

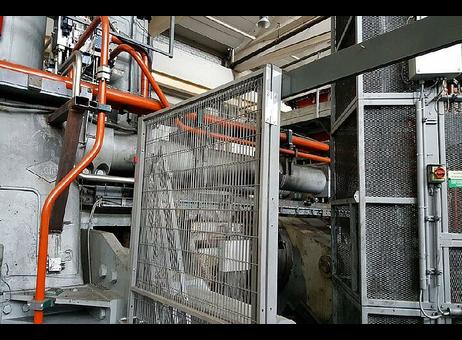

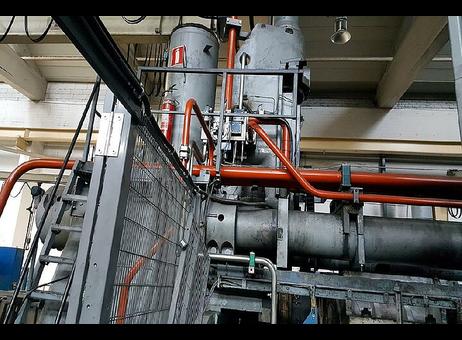

The press frame has undergone welding repairs and ultrasonic testing to verify structural integrity. Visual inspection reveals a large metal extrusion barrel with connected red and orange piping, multiple hydraulic or pneumatic lines, and a protective metal mesh safety guard. The machine components show signs of use with visible wear and some dirt but appear intact.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: EXTRUSION PRESS LINE
Year of Manufacture: 1960
Capacity: 3500 MT force
Total Press Weight: 340 T
Billet Dimensions: 343 x 900 mm (modifiable to 14" x 1.0 m)
Main Piston & Stroke: 1200/460 mm diameter; 2120 mm stroke length
Operating Speeds:
- Automatic: 0.1–10 mm/sec
- Retreat: 300 mm/sec
Hydraulic System: 315 bar working pressure; complete system overhaul in 2012
Pumping Configuration:
- 3x Bosch Rexroth A2V500 (250 kW)
- 1x A4VSO355 (200 kW/1500 rpm)
Control Architecture:
- Allen Bradley Control Logix L72S (Guard Logix)
- PanelView Plus 1500
- Ethernet I/P
- SSI encoders
Shear Unit: Vertical shear with 157 Mp force and 200 mm/sec knife speed
Heating Units:
- Billet furnace with modernized gas burners
- Marx Iserlohn container heating system
Handling Line:
- Smith Engineering double puller
- 200 kp stretcher (5.7–33 m length)
Ancillary Equipment:
- 2x Gautschi die furnaces
- Nederman cutting chips unit
- Ekatech scrap system
Structural Condition: Press frame previously welded and verified via ultrasonic testing.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 28 |
| Last activity | Oct. 14, 2026 |
Offer Title: EXTRUSION PRESS LINE
Year of Manufacture: 1960
Capacity: 3500 MT force
Total Press Weight: 340 T
Billet Dimensions: 343 x 900 mm (modifiable to 14" x 1.0 m)
Main Piston & Stroke: 1200/460 mm diameter; 2120 mm stroke length
Operating Speeds:
- Automatic: 0.1–10 mm/sec
- Retreat: 300 mm/sec
Hydraulic System: 315 bar working pressure; complete system overhaul in 2012
Pumping Configuration:
- 3x Bosch Rexroth A2V500 (250 kW)
- 1x A4VSO355 (200 kW/1500 rpm)
Control Architecture:
- Allen Bradley Control Logix L72S (Guard Logix)
- PanelView Plus 1500
- Ethernet I/P
- SSI encoders
Shear Unit: Vertical shear with 157 Mp force and 200 mm/sec knife speed
Heating Units:
- Billet furnace with modernized gas burners
- Marx Iserlohn container heating system
Handling Line:
- Smith Engineering double puller
- 200 kp stretcher (5.7–33 m length)
Ancillary Equipment:
- 2x Gautschi die furnaces
- Nederman cutting chips unit
- Ekatech scrap system
Structural Condition: Press frame previously welded and verified via ultrasonic testing.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
