Price on request
Make an offer| Type | Mechanical |
| Power in tons | 250 T |
| Table length | 400 mm |
| Table width | 400 mm |
| Nbr of strokes/min | 60 |
| Engine Power | 8.5 kW |
| ------------------- | |
| Length x width x height | 1745.0 × 1160.0 × 2605.0 |
| Weight | 5635 kg |
| worked hours | |
| hours under power | |
| state | in working conditions |
| At local norms | --------- |
| status | in production |
| Last availability date | 21/04/2026 |

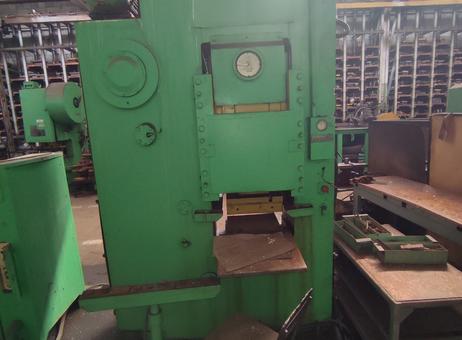

This knuckle-joint stamping press, model KB8334, was manufactured in 1988 in the USSR. It is a mechanical type press with a rated force capacity of 250 tons (2500 kN). The machine features a slider stroke of 15 mm and a distance of 300 mm between the table and the slider, providing precise stamping capabilities. The table measures 400 mm by 400 mm, suitable for various stamping tasks.
The press is powered by an 8.5 kW main motor, which is mounted on top of the machine. The machine's overall dimensions are 1745 mm in length, 1160 mm in width, and 2605 mm in height, with a weight of approximately 5635 kg.

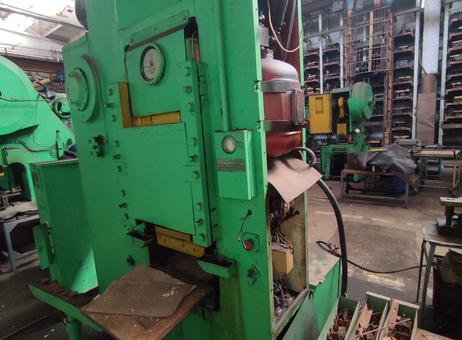

The machine is painted green and yellow, with the stamping area highlighted in yellow and secured by visible bolts and plates. A pressure gauge is installed on the front panel, centrally located above the stamping area, allowing monitoring of operational pressure. An emergency stop button is situated on the right side of the machine for safety purposes.
The side panel of the machine can be opened, exposing internal wiring and components, which may facilitate maintenance access. The machine shows signs of wear, including rust and dirt accumulation, and some debris is present on the work surface, indicating it has been used in an industrial environment. A technical specification plate with Russian text and a performance graph is attached but is partially obscured by rust and dirt.

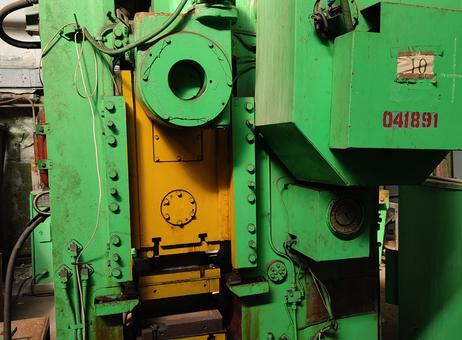

Additional markings include the numbers '10' and '041891' on the right side of the machine. Various metal parts and tools have been observed around the machine base, suggesting it is situated in an active workshop setting alongside similar equipment.
Overall, this robust stamping press is suitable for heavy-duty mechanical stamping operations, with detailed specifications and visible safety and monitoring features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Rated force, tons 250
Slider stroke, mm 15
Distance between table and slider, mm 300
Distance between table and slider, mm 300
Main motion motor power kW 8,5
Table size Width/Length mm 400/400
Machine dimensions Length Width Height (mm) 1745_1160_2605
Weight kg 5635
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
What is the condition of this USSR KB8334 knuckle-joint stamping press?
This USSR KB8334 knuckle-joint stamping press is in excellent condition.
Is this equipment available for inspection under power?
This equipment can be inspected under power.
When was this USSR KB8334 manufactured?
This USSR KB8334 was manufactured in 1988.
Is the machine operational and ready for use?
The machine is operational and ready for use.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
