| Manufacturer | TRUMPF |
|---|---|
| Model | TRUMATIC L 3030 |
| Year | 2006 |
| Location | Spain
|

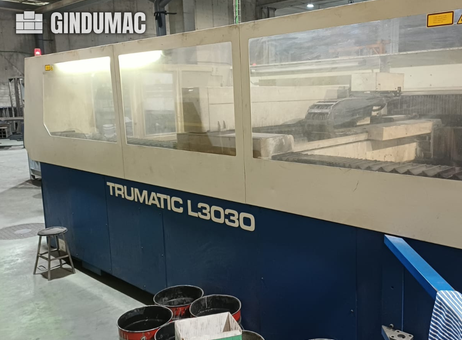

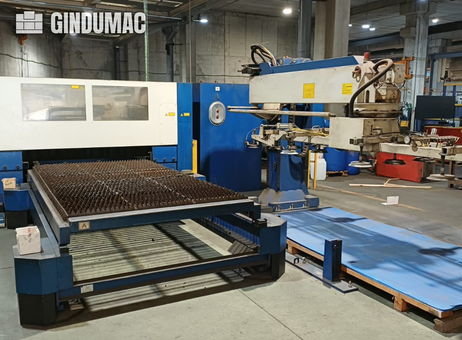

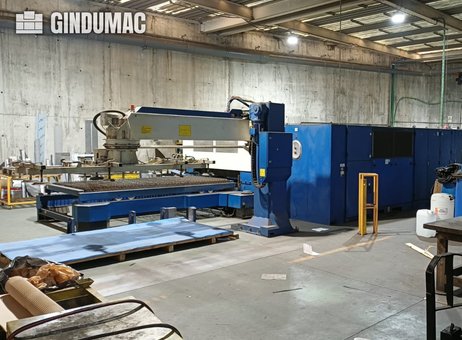

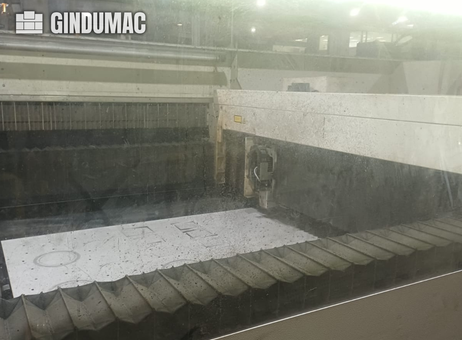

The TRUMPF TRUMATIC L 3030 is a 3-axis CO2 laser cutting machine designed for precision and efficiency in metal processing. Manufactured in 2006, this machine offers a substantial working range with 3000 mm travel on the X-axis and 1500 mm on the Y-axis, complemented by a Z-axis travel of 115 mm. It achieves a maximum positioning speed of 60 m/min when moving parallel to the axes and up to 85 m/min for simultaneous axis movements, ensuring rapid and accurate cutting operations.
Equipped with a TRUMPF CNC path control system based on Siemens SINUMERIK 840D, the machine provides advanced control capabilities with a minimum programmable travel step of 0.01 mm. Its positioning accuracy is rated at ±0.1 mm, with an average position dispersion of ±0.03 mm, supporting high precision in detailed cutting tasks.
The machine utilizes maintenance-free three-phase AC servomotors across all axes (X, Y, Z), contributing to reliable and consistent performance. It offers several laser power options, ranging from 2000 W to 4000 W continuous wave (cw), with corresponding maximum structural steel thicknesses from 12 mm up to 20 mm, depending on the laser power variant.
Compressed air consumption varies by laser model, with the TLF 2000–3200 series requiring 31 m³/h and the TLF 4000 model consuming 42 m³/h. Electrical requirements differ accordingly, with the highest power model (TLF 4000) needing 88 kVA and a 160 A fuse at 50 Hz / 400 V.

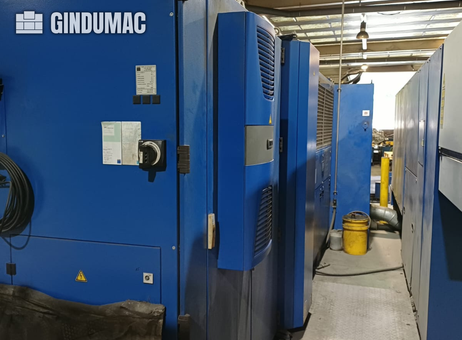

Additional equipment included with the machine comprises a dust extractor, control cabinet, HF generator, and cooling unit, supporting operational efficiency and maintenance.
Physical dimensions of the machine are considerable, with a height of 2000 mm, length of 9800 mm, width of 5300 mm, and a total weight of approximately 11,500 kg, indicating a robust industrial-grade construction suitable for heavy-duty applications.
This TRUMPF TRUMATIC L 3030 laser cutting machine is suitable for users seeking a reliable and precise cutting solution for structural steel and other materials. For further information or inquiries, please contact the seller directly.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis TRUMPF TRUMATIC L 3030 was manufactured in 2006. It features a working range of 3000 mm in the X direction and 1500 mm in the Y direction, with a maximum positioning speed of 60 m/min. The machine is equipped with a TRUMPF CNC path control based on Siemens SINUMERIK 840D. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TRUMATIC L 3030 CO2 laser cutting machine we have for sale. Contact us for further details.Max. positioning speed: 60 m/min (parallel to axes); 85 m/min (simultaneous)
Drive type: Maintenance-free three-phase AC servomotors on X, Y, Z

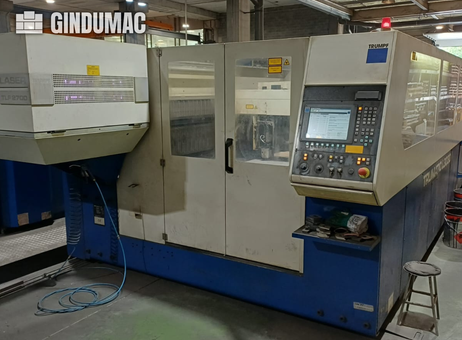

CNC control: TRUMPF CNC path control based on Siemens SINUMERIK 840D
Minimum programmable travel step: 0.01 mm
Positioning accuracy: ±0.1 mm
Average position dispersion: ±0.03 mm
Compressed air consumption:
With TLF 2000–3200: 31 m³/h (516 l/min)
With TLF 4000: 42 m³/h (700 l/min)
Laser power options (cw) and max. structural steel thickness:
TLF 2000: 2000 W / 12 mm
TLF 2700: 2700 W / 15 mm
TLF 3200: 3200 W / 20 mm
TLF 4000: 4000 W / 20 mm

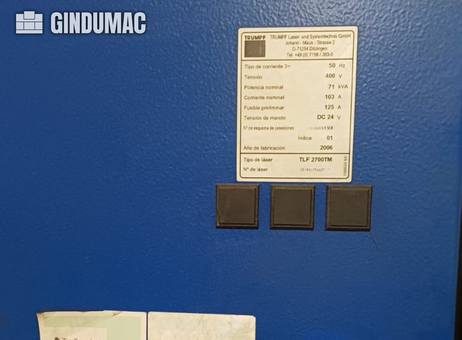

Electrical connection and fuses (50 Hz / 400 V):
TLF 2000: 63 kVA / 100 A
TLF 2700: 71 kVA / 125 A
TLF 3200: 73 kVA / 125 A
TLF 4000: 88 kVA / 160 A
Additional equipment
Dust extractor
Control cabinet
HF generator

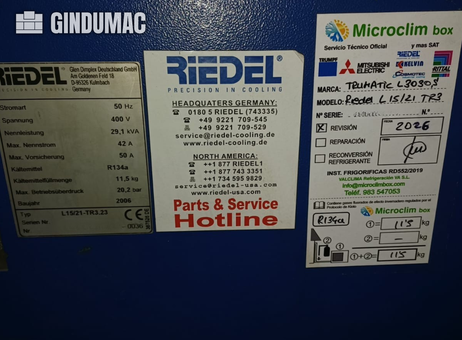

Cooling unit
Laser Power: 4 kW
Machine Height: 2000 mm
Machine Length: 9800 mm
Machine Weight: 11500 kg
Machine Width: 5300 mm
Number of Axes: 3
X-axis Travel: 3000 mm
Y-axis Travel: 1500 mm
Z-axis Travel: 115 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
