Price on request
Make an offer| Type | C-Frame |
| Power in tons | 55 T |
| Table length | 440 mm |
| Table width | 300 mm |
| Ram stroke | 120 mm |
| Nbr of strokes/min | 70 |
| Engine Power | 4.10142 kW |
| ------------------- | |
| Length x width x height | 1250.0 × 1700.0 × 2800.0 |
| Weight | 5400 kg |
| worked hours | |
| hours under power | |
| state | excellent |
| At local norms | --------- |
| status | visible |
| Last availability date | 10/04/2026 |
This Spiertz DC 5 ½ mechanical press is a robust C-frame type press designed for industrial use with a pressing capacity of 55 tons. The press features a variable ram stroke adjustable between 20 mm and 120 mm, allowing for flexible operation depending on the specific task requirements. It has a ram adjustment capability of 90 mm and can operate at a continuous stroking rate of 40 to 70 strokes per minute, providing efficient throughput for repetitive pressing tasks.
The working table measures 440 mm in length and 300 mm in width, offering a compact yet functional workspace for various press operations. The overall table area is 800 mm by 450 mm, and the depth of the throat is 240 mm, which can accommodate different sizes of workpieces. The shut height is 380 mm, which is the distance from the table to the ram when fully raised.
Powered by a 4.1 kW (approximately 5.5 hp) motor, this press combines adequate power with controlled operation. The machine's dimensions are 1250 mm in width, 1700 mm in depth, and 2800 mm in height, with a total weight of 5400 kg, reflecting its solid construction.

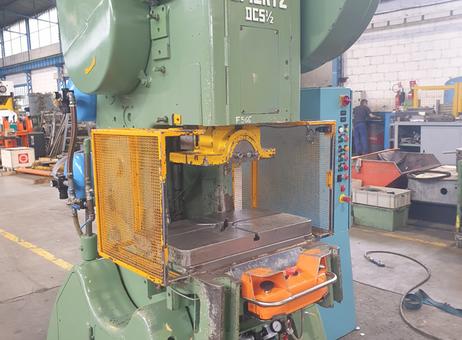

The press is painted green and is equipped with a yellow safety guard surrounding the working area, enhancing operator safety during use. The working table is flat metal, and below it, there is an orange tray that houses controls or gauges, facilitating easy operation and monitoring. The machine shows some signs of wear, including paint chipping on the base, which is typical for used industrial equipment but does not necessarily impact functionality.
Overall, this Spiertz DC 5 ½ mechanical press is a powerful and versatile machine suitable for various pressing applications, combining adjustable stroke settings, a safety guard, and a compact footprint for efficient use in an industrial workshop.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Capacity: 55t
Variable stroke: 20 - 120
Ram adjustment: 90mm
Continuous stroking rate: 40/70 strokes/min
Shut height: 380mm
Table area: 800x450 mm
Depth of throat: 240mm
Ram area: 440x300
Lower cushion: no
Motor: 5,5 hp
Dimensions:
Width: 1250 mm
Depth: 1700 mm
Height: 2800 mm
Weight of press: 5,4t
