Toshiba TMC-13

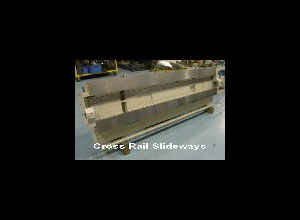

1. Table Diameter 1250mm (49.2") 2. Maximum Swing 1600mm (63") 3. Maximum Turning Diameter 1600mm (63") 4. Maximum Turning Height 1250mm (49.2") 5. Maximum Table load – turning – (milling) 22,000 LBS (15,000LBS) 6. Table RPM and Power 3~250 / 45/60 KW (60/80HP) 7. X axis Stroke +/- 800mm (+/-31.5") 8. Z axis Stroke 1000mm (39.4") 9. Cross Rail Stroke (4) positions 500mm 750mm 1000mm 1250mm 10. Number of ATC 24 (8 turning stations, 16 live tool stations) 11. Live spindle HP & (RPM) 10 HP (1,500 RPM) 12. C axis table positioning Included 13. Coolant Thru the ram. 3 Slot holders have coolant fed. 14. Floor space & Height (LxWxH) 228” x 198 x 220 ” 15. Main Machine Weight 44,000 LBS - Hardened and ground box ways for rigidity and accuracy - Large U type column for rigid support of cast iron cross rail and Ram - Large square ram supported within box type saddle for maximum rigidity and straightness - Large diameter cylindrical roller bearing for main table and work piece support - Two Hydraulic counter balance cylinders located on both sides of the ram - Two clamp cylinders radially located on the table base for positive …
