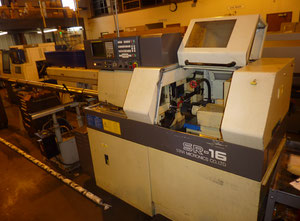

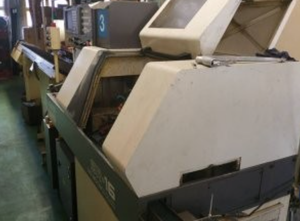

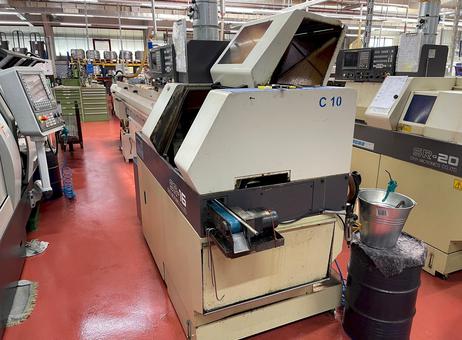

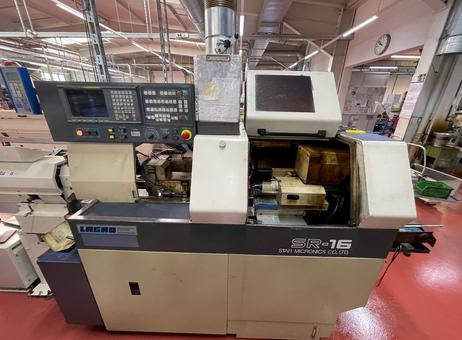

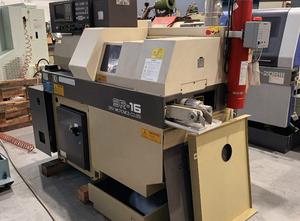

Star SR-16

Control Fanuc 16-TTA Max. Turning Diameter 16 mm (5/8") Max Head Stock Stroke 205 mm (8") Max Drilling Capacity - Stationary 8 mm (5/16") Max Drilling Capacity - Power Driven 5 mm (3/16") Max Tapping Capacity - Stationary M8 x P1.25 Max Tapping Capacity - Power Driven M5 x PO.8 Max Milling Capacity 10 mm (3/8") Max Die Cutting Capacity M8 x P1.25 Max Slotting Capacity 1.5 mm x 4 mm Spindle Speed 10,000 RPM Spindle Bore 20 mm (49/64") Spindle Indexing 15 Degrees Sub-Spindle Diameter 16 mm (5/8") Max Part Length for Front Ejection 80 mm (2-1/8") Max Parts Projection Length 30 mm (1-5/32") Sub-Spindle Speeds 400 - 6,000 RPM Number Of Turning Tools 6 Number Of Power Driven Tools 3 Power Driven Spindle Speed 350-5,000 RPM Tool Shank Size 12 x 95-120 / 12.7x 95-120 Coolant Tank Capacity 100 L (26.4 Gallons) Axis - X, Y, Z, Xb & Zb
