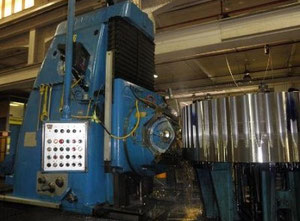

Pfauter P3000

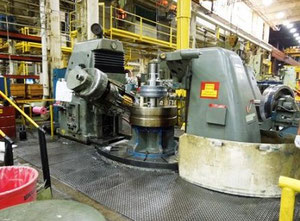

P3000B PFAUTER VERTICAL GEAR HOBBING MACHINE Model P3000B EQUIPMENT / FEATURES: Universal Hob Head w/Automatic Hob Shift Outboard Support Column (Clamshell Type) Differential Mechanism - Hydraulic Table Relief Fully Automatic Work Cycles Change Gears - Chip Conveyor CATALOGUE SPECIFICATIONS: Workpiece Diameter, Maximum ......................... 120" Rated Pitch In Steel, Maximum ....................... 1 DP Hob Diameter, Maximum ............................... 11.4" Hob Length, Maximum ................................. 13" Work Table Diameter ................................. 75" Work Table Bore Diameter ............................ 20" Axial Travel, Maximum ............................... 41.3" Hob Shift, Maximum .................................. 12" Distance Workpiece to Hob, Maximum .................. 65" Distance Workpiece to Hob, Minimum .................. 11.8" Number Of Teeth Cut, Minimum ........................ 16 Hob Speeds,Infinitely Variable ...................... 12 to 150 RPM Axial Feeds Range, Infinitely Variable .............. .014 to 283 IPR Radial Feeds Range, Infinitely Variable ............. .003 to .059 IPR Main Motor Horsepower ............................... 20 HP Floor Space Required, L x W ......................... 260" x 159" Overall Height ...................................... 151" Weight Approximately ................................ 68000 LBS
