| Length between centers | 4000 mm |
|---|---|
| Overhauled | no |
| Steady | no |
| Max. turning diameter | 1030 mm |
|---|---|
| Tailstock | no |
| Length between centers | 5750 mm |
|---|---|
| Ø above transversing slide | 660 mm |
| Overhauled | no |
| Steady | no |
| Ø above the bed | 950 mm |
|---|---|
| Spindle bore | 80 mm |
| Tailstock | no |
| Type of chuck | 4 jaw |
| Length between centers | 6100 mm |
|---|---|
| Ø above transversing slide | 1320 mm |
| Tailstock | no |
| Ø above the bed | 1500 mm |
|---|---|
| Overhauled | no |
| Steady | no |
| Length between centers | 13000 mm |
|---|---|
| Ø above the bed | 4000 mm |
| Max workpiece weight | 100000 kg |
| Spindle motor power | 70 kW |
| Tailstock | no |
| Turning length | 6500 mm |
|---|---|
| Ø above transversing slide | 2220 mm |
| Spindle bore | 95 mm |
| Overhauled | no |
| Steady | no |
| Length between centers | 7000 mm |
|---|---|
| Ø above transversing slide | 1150 mm |
| Spindle bore | 102 mm |
| Spindle motor power | 22 kW |
| Tailstock | no |
| Type of chuck | 3 jaw |
| Ø above the bed | 1480 mm |
|---|---|
| Diameter in the gap | 1800 mm |
| Turning speed | 400 rpm |
| Overhauled | no |
| Steady | yes |
Belgium
2024
| Length between centers | 8000 mm |
|---|---|
| Turning length | 8000 mm |
| Ø above the bed | 930 mm |
| Diameter in the gap | 1150 mm |
| Max workpiece weight | 6000 kg |
| Turning speed | 800 rpm |
| Overhauled | no |
| Steady | yes |
| Max. turning diameter | 930 mm |
|---|---|
| Center height | 465 mm |
| Ø above transversing slide | 630 mm |
| Faceplate diameter | 800 mm |
| Spindle bore | 105 mm |
| Spindle motor power | 27 kW |
| Tailstock | yes |
| Type of chuck | 4 jaw |
Spain
~ 1992
| Length between centers | 6000 mm |
|---|---|
| Turning length | 6000 mm |
| Ø above the bed | 1020 mm |
| Diameter in the gap | 1440 mm |
| Max workpiece weight | kg |
| Turning speed | 500 rpm |
| Overhauled | yes |
| Tailstock | yes |
| Max. turning diameter | 1440 mm |
|---|---|
| Center height | 500 mm |
| Ø above transversing slide | 745 mm |
| Faceplate diameter | 800 mm |
| Spindle bore | 140 mm |
| Spindle motor power | 15 kW |
| Year of overhauling | 2020 |
| Steady | yes |
Poland
1984
| Length between centers | 5000 mm |
|---|---|
| Turning length | 5000 mm |
| Ø above the bed | 1600 mm |
| Diameter in the gap | 105 mm |
| Max workpiece weight | 30000 kg |
| Overhauled | yes |
| Tailstock | yes |
| Type of chuck | 4 jaw |
| Max. turning diameter | 1600 mm |
|---|---|
| Center height | 800 mm |
| Ø above transversing slide | 1280 mm |
| Faceplate diameter | 1600 mm |
| Spindle motor power | 75 kW |
| Year of overhauling | 2026 |
| Steady | no |
| Length between centers | 6000 mm |
|---|---|
| Ø above transversing slide | 1400 mm |
| Spindle bore | 200 mm |
| Spindle motor power | 95.5 kW |
| Tailstock | yes |
| Ø above the bed | 2500 mm |
|---|---|
| Max workpiece weight | 40000 kg |
| Turning speed | 400 rpm |
| Overhauled | no |
| Steady | no |
Poland
1983
| Length between centers | 10000 mm |
|---|---|
| Turning length | 10000 mm |
| Ø above transversing slide | 500 mm |
| Turning speed | 800 rpm |
| Overhauled | no |
| Steady | yes |
| Max. turning diameter | 1050 mm |
|---|---|
| Ø above the bed | 800 mm |
| Diameter in the gap | 95 mm |
| Spindle motor power | 22 kW |
| Tailstock | yes |
| Type of chuck | 3 jaw |
Poland
1984
| Length between centers | 5000 mm |
|---|---|
| Ø above the bed | 930 mm |
| Max workpiece weight | 9000 kg |
| Turning speed | 800 rpm |
| Tailstock | no |
| Type of chuck | 4 jaw |
| Turning length | 5000 mm |
|---|---|
| Diameter in the gap | 1200 mm |
| Spindle bore | 95 mm |
| Overhauled | no |
| Steady | no |
| Length between centers | 8000 mm |
|---|---|
| Max workpiece weight | 5000 kg |
| Turning speed | 315 rpm |
| Overhauled | no |
| Steady | no |
| Ø above the bed | 1250 mm |
|---|---|
| Spindle bore | 130 mm |
| Spindle motor power | 21 kW |
| Tailstock | no |
Denmark
1984
| Length between centers | 35000 mm |
|---|---|
| Ø above transversing slide | 1600 mm |
| Spindle motor power | 150 kW |
| Tailstock | yes |
| Type of chuck | 4 jaw |
| Max. turning diameter | 2020 mm |
|---|---|
| Max workpiece weight | 63000 kg |
| Overhauled | no |
| Steady | yes |
Sweden
1967
| Length between centers | 10000 mm |
|---|---|
| Ø above the bed | 1160 mm |
| Diameter in the gap | 1320 mm |
| Overhauled | no |
| Steady | yes |
| Turning length | 10000 mm |
|---|---|
| Ø above transversing slide | 890 mm |
| Spindle bore | 110 mm |
| Tailstock | no |
| Length between centers | 12025 mm |
|---|---|
| Turning length | 11925 mm |
| Faceplate diameter | 2600 mm |
| Spindle motor power | 160 kW |
| Year of overhauling | 2025 |
| Steady | yes |
| Max. turning diameter | 1900 mm |
|---|---|
| Center height | 1300 mm |
| Max workpiece weight | 80000 kg |
| Overhauled | yes |
| Tailstock | yes |
Belgium
1969
| Length between centers | 2500 mm |
|---|---|
| Turning length | 2500 mm |
| Ø above the bed | 560 mm |
| Max workpiece weight | 1500 kg |
| Turning speed | 1600 rpm |
| Overhauled | no |
| Steady | yes |
| Max. turning diameter | 560 mm |
|---|---|
| Center height | 280 mm |
| Ø above transversing slide | 350 mm |
| Spindle bore | 80 mm |
| Spindle motor power | 11 kW |
| Tailstock | yes |
| Type of chuck | 3 jaw |
Netherlands
1996
| Length between centers | 3000 mm |
|---|---|
| Ø above the bed | 1040 mm |
| Faceplate diameter | 800 mm |
| Spindle bore | 160 mm |
| Spindle motor power | 40 kW |
| Tailstock | no |
| Type of chuck | 4 jaw |
| Turning length | 3000 mm |
|---|---|
| Diameter in the gap | 1580 mm |
| Max workpiece weight | 3500 kg |
| Turning speed | 800 rpm |
| Overhauled | no |
| Steady | no |
| Length between centers | 3200 mm |
|---|---|
| Turning length | 3150 mm |
| Ø above the bed | 2300 mm |
| Diameter in the gap | 3200 mm |
| Max workpiece weight | 16000 kg |
| Spindle motor power | 30 kW |
| Tailstock | yes |
| Type of chuck | other |
| Max. turning diameter | 3200 mm |
|---|---|
| Center height | 1150 mm |
| Ø above transversing slide | 2000 mm |
| Faceplate diameter | 2500 mm |
| Turning speed | 50 rpm |
| Overhauled | no |
| Steady | yes |
Netherlands
1960
| Length between centers | 8000 mm |
|---|---|
| Turning length | 8000 mm |
| Ø above transversing slide | 900 mm |
| Turning speed | 315 rpm |
| Overhauled | no |
| Steady | no |
| Max. turning diameter | 1250 mm |
|---|---|
| Ø above the bed | 1250 mm |
| Max workpiece weight | 12500 kg |
| Spindle motor power | 34 kW |
| Tailstock | no |
Spain
1990
| Length between centers | mm |
|---|---|
| Turning length | 2000 mm |
| Ø above the bed | mm |
| Diameter in the gap | 3200 mm |
| Max workpiece weight | 5000 kg |
| Turning speed | rpm |
| Overhauled | no |
| Tailstock | no |
| Max. turning diameter | 3200 mm |
|---|---|
| Center height | mm |
| Ø above transversing slide | mm |
| Faceplate diameter | 2800 mm |
| Spindle bore | mm |
| Spindle motor power | 115 kW |
| Year of overhauling | |
| Steady | no |
Sweden
1971
| Length between centers | 6000 mm |
|---|---|
| Ø above transversing slide | 910 mm |
| Max workpiece weight | 20000 kg |
| Spindle motor power | 800 kW |
| Tailstock | yes |
| Type of chuck | 4 jaw |
| Ø above the bed | 1290 mm |
|---|---|
| Diameter in the gap | 1580 mm |
| Spindle bore | 155 mm |
| Overhauled | no |
| Steady | yes |
Italy
2006
| Overhauled | no |
|---|---|
| Steady | no |
| Tailstock | no |
|---|
| Length between centers | 4000 mm |
|---|---|
| Ø above transversing slide | 730 mm |
| Spindle bore | 100 mm |
| Spindle motor power | 22 kW |
| Tailstock | no |
| Type of chuck | 4 jaw |
| Ø above the bed | 1050 mm |
|---|---|
| Diameter in the gap | 1000 mm |
| Turning speed | 800 rpm |
| Overhauled | no |
| Steady | no |
Netherlands
1987
| Turning length | 5000 mm |
|---|---|
| Ø above transversing slide | 810 mm |
| Max workpiece weight | 10000 kg |
| Turning speed | 900 rpm |
| Overhauled | no |
| Steady | no |
| Ø above the bed | 1140 mm |
|---|---|
| Diameter in the gap | 1500 mm |
| Spindle bore | 130 mm |
| Spindle motor power | 25 kW |
| Tailstock | no |
| Type of chuck | 4 jaw |
Germany
1975
| Length between centers | 8000 mm |
|---|---|
| Center height | 2240 mm |
| Max workpiece weight | 20000 kg |
| Spindle motor power | 34 kW |
| Tailstock | no |
| Max. turning diameter | 4000 mm |
|---|---|
| Faceplate diameter | 3150 mm |
| Spindle bore | 100 mm |
| Overhauled | no |
| Steady | no |
Belgium
| Length between centers | 4000 mm |
|---|---|
| Ø above transversing slide | 370 mm |
| Turning speed | 1400 rpm |
| Overhauled | no |
| Steady | yes |
| Ø above the bed | 660 mm |
|---|---|
| Spindle bore | 80 mm |
| Spindle motor power | 27 kW |
| Tailstock | no |
| Type of chuck | 3 jaw |
Italy
1994
| Length between centers | 4000 mm |
|---|---|
| Ø above the bed | 1220 mm |
| Max workpiece weight | 15000 kg |
| Turning speed | 1000 rpm |
| Overhauled | no |
| Steady | no |
| Center height | 610 mm |
|---|---|
| Ø above transversing slide | 820 mm |
| Spindle bore | 120 mm |
| Spindle motor power | 38 kW |
| Tailstock | no |
| Type of chuck | other |
Germany
1982
| Max. turning diameter | 2500 mm |
|---|---|
| Faceplate diameter | 2600 mm |
| Spindle bore | 100 mm |
| Overhauled | no |
| Steady | no |
| Ø above the bed | 2900 mm |
|---|---|
| Max workpiece weight | 400000 kg |
| Spindle motor power | 45 kW |
| Tailstock | no |
Czech Republic
1992
| Max. turning diameter | 700 mm |
|---|---|
| Overhauled | no |
| Steady | no |
| Turning length | 7000 mm |
|---|---|
| Tailstock | no |
Belgium
| Length between centers | 3000 mm |
|---|---|
| Turning length | 3000 mm |
| Ø above the bed | 630 mm |
| Diameter in the gap | mm |
| Max workpiece weight | kg |
| Turning speed | 1120 rpm |
| Overhauled | no |
| Tailstock | no |
| Max. turning diameter | 630 mm |
|---|---|
| Center height | mm |
| Ø above transversing slide | mm |
| Faceplate diameter | mm |
| Spindle bore | 72 mm |
| Spindle motor power | kW |
| Year of overhauling | |
| Steady | no |
| Length between centers | 10000 mm |
| Max. turning diameter | 2500 mm |
| Turning length | mm |
| Center height | 1060 mm |
| Ø above the bed | 2000 mm |
| Ø above transversing slide | 1600 mm |
| Diameter in the gap | mm |
| Faceplate diameter | mm |
| Max workpiece weight | 63 kg |
| Spindle bore | mm |
| Turning speed | 125 rpm |
| Spindle motor power | 100 kW |
| Overhauled | no |
| Year of overhauling | |
| ------------------- | |
| Length x width x height | 17120.0 × 3250.0 × 2850.0 |
| Weight | 90000 kg |

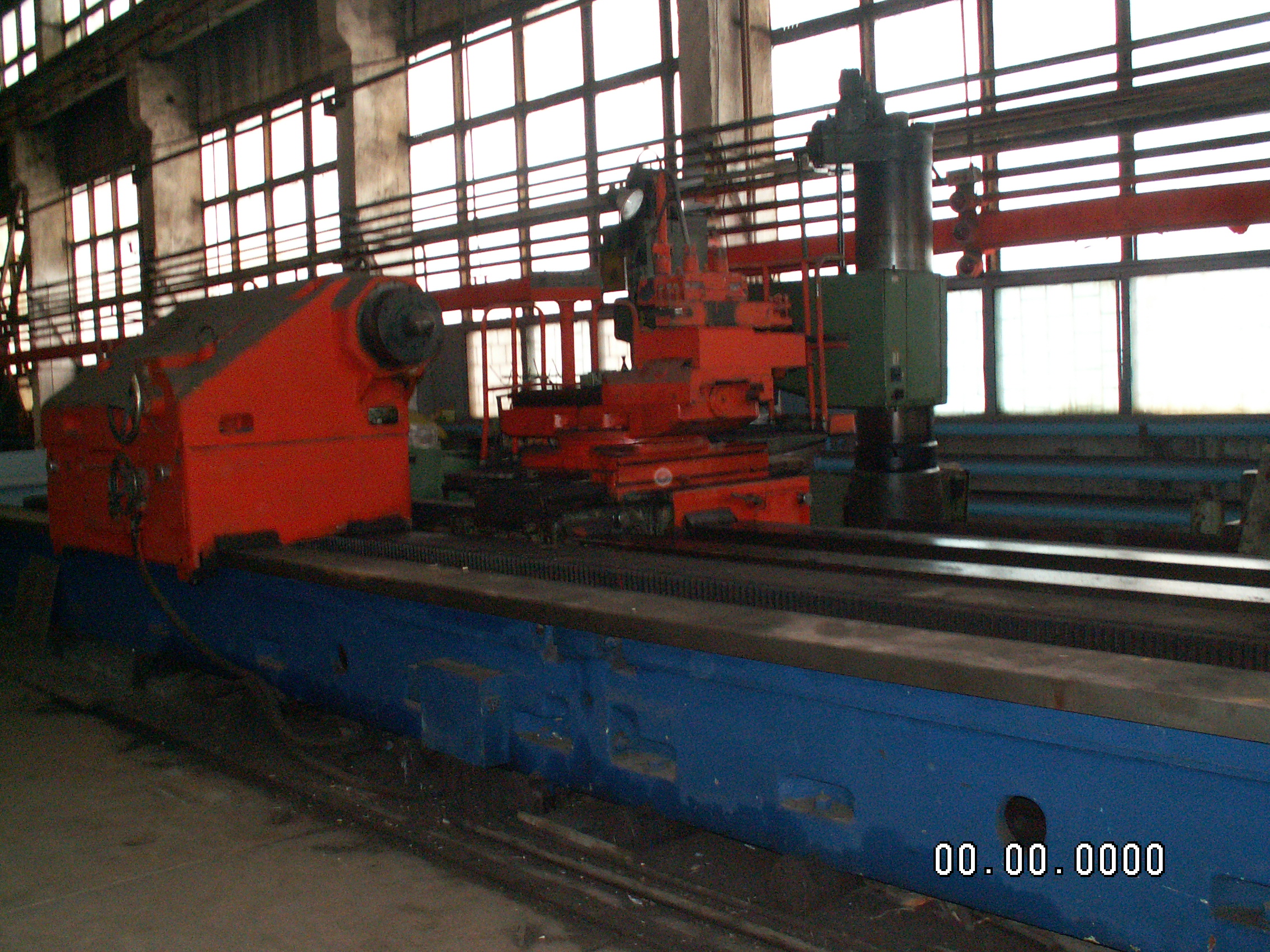

Russia
1972
| length | 17720 mm |
|---|---|
| height | 2850 mm |
| Length between centers | 10000 mm |
| Ø above the bed | 1600 mm |
| width | 3250 mm |
|---|---|
| weight | 104000 kg |
| Turning Ø | 2000 mm |
Russia
1970
| length | 17120 mm |
|---|---|
| height | 2850 mm |
| Length between centers | 10000 mm |
| Ø above transversing slide | 1600 mm |
| Spindle motor power | 100 kW |
| width | 3250 mm |
|---|---|
| weight | 103000 kg |
| Ø above the bed | 2000 mm |
| Max workpiece weight | 63 kg |
Russia
1982
| length | 17120 mm |
|---|---|
| height | 2850 mm |
| Length between centers | 10000 mm |
| Ø above transversing slide | 1600 mm |
| Spindle motor power | 100 kW |
| width | 3250 mm |
|---|---|
| weight | 103000 kg |
| Ø above the bed | 2000 mm |
| Max workpiece weight | 63000 kg |
Russia
| length | 18300 mm |
|---|---|
| height | 2850 mm |
| Length between centers | 10000 mm |
| Ø above the bed | 2000 mm |
| Max workpiece weight | 63000 kg |
| Spindle motor power | 100 kW |
| width | 4300 mm |
|---|---|
| weight | 90000 kg |
| Center height | 1060 mm |
| Ø above transversing slide | 1600 mm |
| Turning speed | 125 rpm |
Slovenia
Ukraine
EN
- Languages
English (GB)
English (US)
Français
Čeština
Español
Deutsch
Italiano
Polski
Русский
Türkçe
Português
Magyar
Hrvatski
Български
Nederlands
Ελληνικά
Dansk
Svenska
Română
Crpski
Lietuvių
