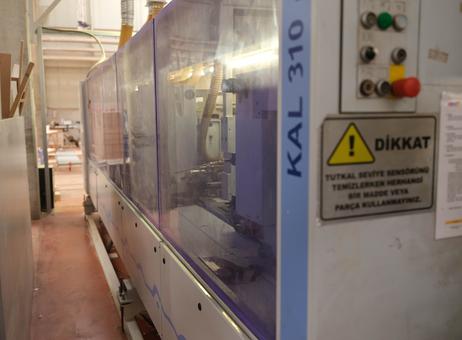

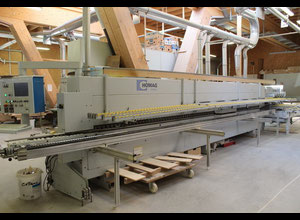

Homag KAL 310

Automatic machine to apply the edge into straight and softformed profiles – max. working panel height with straight edge 60 mm – applicable banding material in coils: thin edges General technical data SYSTEM AND OPTIONALS OF THE PANEL HANDLING – running driving chain – top pression unit made by motorized rubbered belt – top pression unit with adjustable height in automatic by numerical control – adjusting in continuous feeding speed with regulation in automatic by numerical control – input panel guide – lateral bar with lines of idle wheels to support the panels WORKING UNITS ON THE SQUARING SIDE – trimming unit to trim the step of edge joining that exceeds on the top and bottom part of the softformed panel – motors tiltable 0/45 degree – milling shaping unit suitable for the profiling of softformed panels – milling shaping unit suitable for the profiling of softformed panels GLUING UNIT, INSERTION AND PRESSION OF THE EDGE – hot-melt glue pot and premelter – spreading roller to regulate the quantity of applied glue – guillotine to cut the edge in coils – revolving roller set to press the edge with quick change of the working profile – nr. 1 position for …

Edgebander Single (LEFT) Thickness of rolled edges (min / max) mm 0.3 to 3 Panel thickness (min / max) mm 8-60 Numerical Control Power Control PC 22 Feed speed (variable) m / min 18 - 25 higher pressure with rubber motorized belt Spraying (for anti adhesion improver liquid) Incoming guide, adjustable from C.N. introduction system of panels (Nardello, Optional) Adjustments Group (Moulder Vertical) 2 x 3 Kw Lamps of pre-heating of the side of the panel bonding system (glue Thermo-fuse + Pre melter) pressure zone onboard "K" (adjustable from C.N.) Roll Holder (for No. 2 coils) power supply board with SERVO system Trimming Group HL 81 (2 x 0.22 Kw) blank Gleaners group (2 x 0.4 kW) adjustable from C.N. Corner rounding group FF 12 (4 x 0.4 Kw) Scraping the edge group PN 20 (Pneumatic) Finishing Group (scraper Glue Brushes +) FA 10 Moulder (for quarries and rinure) UF 11 (1 kW x 4) OPTIONAL: Splitter "NARDELLO" Mod. Elegance (cod. SZ0M39)

Edgebander Single (LEFT) Thickness of rolled edges (min / max) mm 0.3 to 3 Thickness of edges in strips-strips (min / max) mm 0.4 to 20 Panel thickness (min / max) mm 12-60 Numeric Control NC 21 HOMATIC Feed speed m / min 18 higher pressure with rubber motorized belt Incoming guide, adjustable from C.N. Adjustments Group - Moulder Vertical (2 x 3 Kw) Lamps of pre-heating of the side of the panel gluing system (Thermo-melt glue) A20 / A34 Spraying (for anti releasing liquid) pressure zone edge (from C.N. adjustment) "C" Roll Holder (N ° coils) 1 Group Trimming HL 85 Pneu (2 x 0.5 Kw) Trimmers Group (2 x 1.5 kW) with electro-pneumatic adjustment Multifunction Group (gleaning and rounding) FK 11 (2 x 0.4 Kw) Group Scraping board PN 10, with electro-pneumatic adjustment Finishing Group (scraper Glue Brushes +) FA 11 Sanding unit (abrasive belt) KS 10 for straight edge OPTIONAL: Back-piece system "LIGMATECH" Mod. ZHR 15 (cod. T01002)

Formatting & Edge Banding HOMAG KAL 310 Edge Bander control - yes Joint milling unit - yes edge magazine with - yes End trimming unit - yes edge thickness - yes feed 18 - 20mts / min fine trimming unit - yes flat scraping unit - yes profile trimming unit - yes Buffing unit - yes universal milling unit - no workpiece overhang - 30 mm workpiece pre heater - yes workpiece thickness 10 - 60 mm (Canteadora HOMAG KAL 310)
