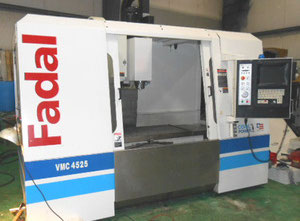

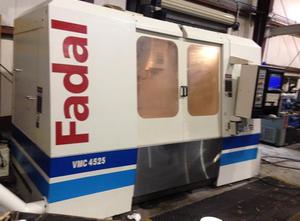

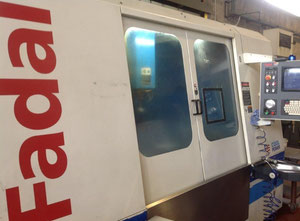

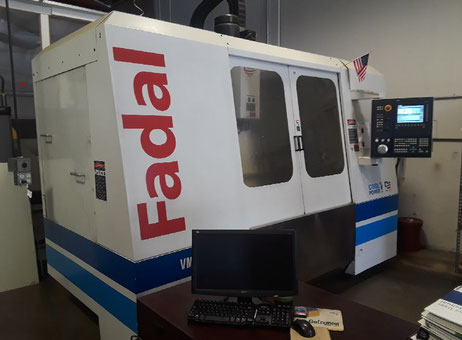

Fadal VMC 4525

Table: Table Size: 53.5" x 25" X-Axis Travel: 45" Y-Axis Travel: 25" Z-Axis Travel: 32" Spindle: Spindle Speeds Minimum - Maximum: 10 to 10,000 RPM Spindle Taper: CT 40 Taper Main Motor (30 min. / cont.): 20.1 / 14.7 HP Tool Changer: Tool Changer Positions: 24 ATC Equipped With: Full 4th Axis (11") with Tailstock (Contouring) Renishaw Tool Touch Probe TS27R Through Spinde Coolant Two Brand New Y-Axis Motor and Z-Axis Motors in the Boxes Many new parts and electrical components Chip Conveyor Comments: Alll of the boards have been replaced with new Machine runs very well

Specifications: Travels: X-Axis 45” Y-Axis 25” Z-Axis 24” Table Size 53.5” x 25” Table Load Capacity 4529 lbs. Spindle Taper CAT 40 Spindle Speed 10,000 RPM Spindle Motor 22.5 HP Spindle Nose to Table Top 4” – 24” Rapid Traverse (X/Y/Z) 900 / 700 IPM Number of Tools 21 ATC Sidemount Max. Tool Diameter 6” Max. Tool Length 15” Max. Tool Weight 15 lbs. Machine Dimensions (Approx) 131” x 102” x 102” Machine Weight (Approx.) 15,750 lbs.

Machine Type: CNC Verticals Year: 2002 Manufacturer: Fadal Model: VMC 4525 Control: Fadal 32MP CNC Condition: Good Under Power: Yes Code: M0185 Table: Table Size: 53.5" x 25" X-Axis Travel: 45" Y-Axis Travel: 25" Z-Axis Travel: 32" Spindle: Spindle Speeds Minimum - Maximum: 10 to 10,000 RPM Spindle Taper: CT 40 Taper Main Motor (30 min. / cont.): 20.1 / 14.7 HP Tool Changer: Tool Changer Positions: 24 ATC Equipped With: Full 4th Axis (11") with Tailstock (Contouring) Renishaw Tool Touch Probe TS27R Through Spinde Coolant Two Brand New Y-Axis Motor and Z-Axis Motors in the Boxes Many new parts and electrical components Chip Conveyor Comments: Alll of the boards have been replaced with new Machine runs very well
