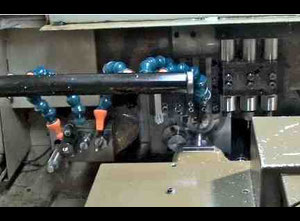

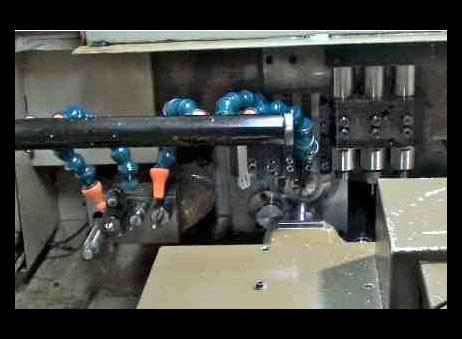

Citizen L-20(5) VII

Max Diameter Bar Capacity 0.812" Max Machining Length (Per Chucking) 8.1" Main Spindle Motor 5 HP Main Spindle Speed 200 - 10,000 RPM Main Spindle Indexing .001 Degrees Number of Tools 16 Turning Tools 6 Live Tools 5 Front End - Working Tools 3 Backworking Tools 3 Rapid Traverse Rates 787 IPM Rotary Tool Speed 200 - 5000 RPM Rotary Tool Motor 0.5 HP Sub Spindle Index 5 Degrees Sub Spindle Motor 2 HP Sub Spindle Speed 200 - 8000 RPM X1-Axis Travel 1.79" Y1-Axis Travel 11.57" Z1-Axis Travel 8.07" X2-Axis Travel 12.44" Z2-Axis Travel 7.09" Max Front Drilling / Tapping Dia. 0.2" / M5 Max Front Rotary Drill / Tap Dia. 0.39" / M8 Max Back Drilling / Tapping Dia. 0.31" / M6 Machine Dimensions (L x W x H) 80.7" x 42.7" x 66.9" Machine Weight 3960 lbs. NOTES: MITSUBISHI 635LC CNC CONTROL 10.4" Color LCD IEMCA Genius 220 Magazine 12 ft. Barfeed C-Axis Milling Capability on Main & Sub Spindle Mist Collector Main Spindle Pickoff Synchronization Three Color Tower Light Approx. 29,000 Power on Hour

Specifications Maximum Machining Diameter: .78" Maximum Machining Length: 7.8" Maximum front drilling diameter: .39" Max. front tapping diameter (with tap and die) M8 Spindle through-hole diameter: .94" Main spindle speed: 10,000 RPM Rotary tool spindle speed: 8,000 RPM (max.) Rotary tool motor: 1 Horsepower Max. chuck diameter of the back spindle:.79" Number of tools to be mounted: 16 Tools Turning tools on the gang tool post: 5 Rotary tools on the gang tool post: 5 Equipped with Lns Bar Feed Oil Coolant Stainless Steel parts C axis Live tooling

CNC CONTROL: CINCOM SYSTEM L (WINDOWS) MAX. MACHINING DIAMETER: 3/4" MAX. MACHINING LENGTH PER ONE CHUCK: 8.1" MAX. DRILLING DIAMETER: UP TO .394" SPINDLE SPEED: 200 - 10000 RPM BACK-WORK: -MAX. CHUCKING DIA. OF PICK-OFF SPINDLE: .812" -PICK-OFF SPINDLE SPEED: 200 - 8000 RPM -PICK-OFF SPINDLE MOTOR: 2 HP -MIN. SPINDLE INDEX: 1 DEG ROTARY TOOL: -ROTARY SPINDLE SPEED: 200 - 5000 RPM -ROTARY TOOL MOTOR: .5 HP -NUMBER OF TOOLS MOUNTED: 16 -TURNING / FRONT ID / BACK ID / LIVE TOOLS: 6 / 3 / 3 / 4 POWER CONSUMPTION: 6 KVA REQUIRED FLOOR SPACE: 65" X 37" APPROX. WEIGHT: 3600 LBS. EQUIPPED WITH: -PARTS CATCHER -C-AXIS MAIN SPINDLE AND SUB SPINDLE -CAV BARFEED -MISC. TOOLING -ALL AVAILABLE MANUALS -MIST COLLECTOR

Maximum Machining Diameter .812" Maximum Machining Length-one chuck 8.1" Maximum Drilling Diameter up to .394" Maximum Bar Capacity .788 (20 mm) Main Spindle Speed 10,000 RPM Main Spindle Indexing .001 Degree Subspindle Speeds 200 - 8,000 RPM Subspindle Motor 2 HP Subspindle Indexing .001 Degree Rotary Tool Speeds 200 - 5,000 RPM Rotary Tool Motor .5 HP Total Number of Mounted Tools 16 Tools Machine Dimensions 65" x 37" Machine Weight 4,500 lbs. NOTES: Full C Axis on Main & Subspindle Live Tooling Subspindle Citizen Model CAV20-IS Barfeed Cool Blaster CB510 Hi-Pressure Coolant Cool Blaster 850 Mist Collector Machine Still has 1 year of Warranty Left All Available Tooling All Available Manuals Thread Whilring Attachment Slitting Saw Attachment LTA 0156 Double Sided Live Tool Holder GSE 1307 8C004M 2 pcs of GSC1010 8A185 M live holders All TOOLING NEVER USED Misc. Collets and Bushings
