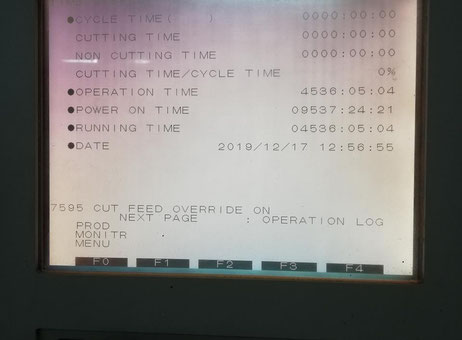

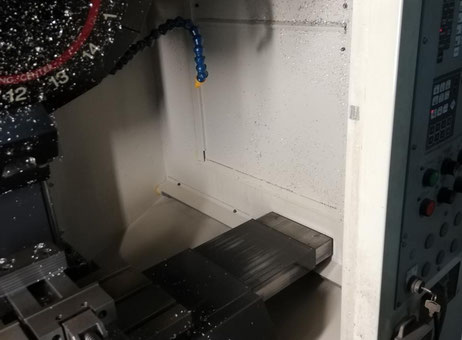

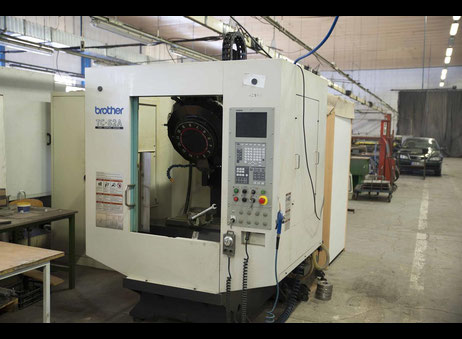

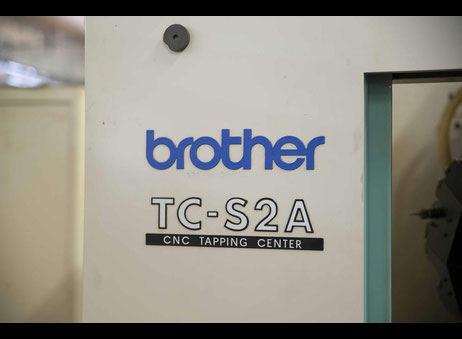

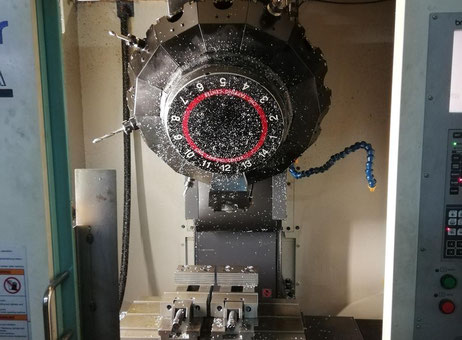

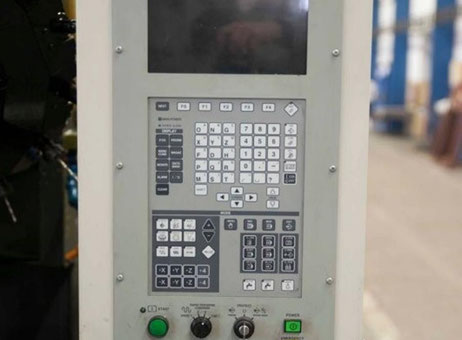

Brother TC-S2A

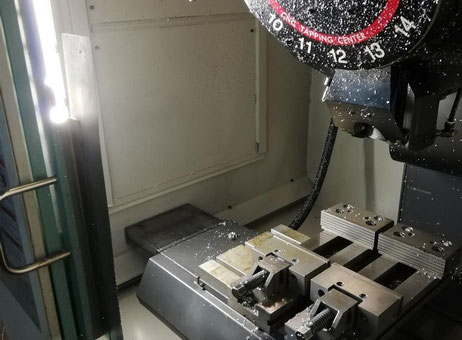

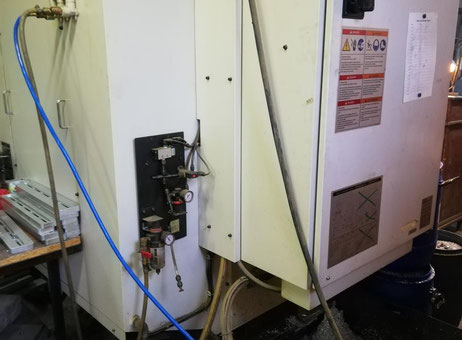

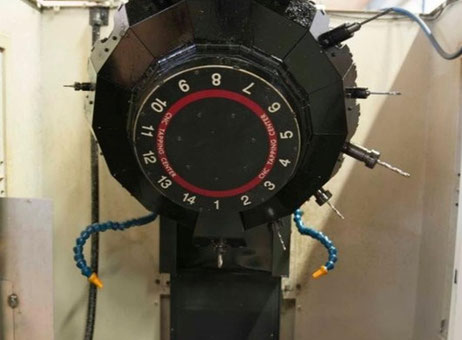

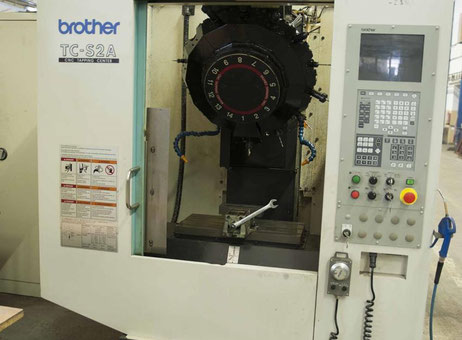

Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Brother TC-S2A P90912156
Manufacturer Brother
Model TC-S2A
Category Machining centers - vertical

Here is a selection of similar machines - Brother TC-S2A

Specifications

Axis X 480 mm
Axis Y 360 mm
Axis Z 270 mm
Rotary table (4th axis) no
Type of CNC CNC-A00
Table length 600 mm
Table width 320 mm
Max. part weight 150 kg
Number of tool pockets 14
Spindle taper BT 30
Max. spindle speed 10000 rpm
Spindle motor power 5.5 kW
-------------------
Length x width x height 1955.8 × 2672.1 × 2430.8
Weight 1850.3 kg

Similar machines sold on our website

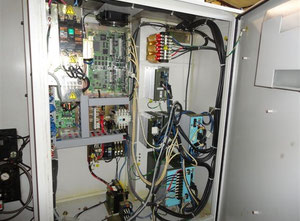

Used Brother TC-S2A Drilling machine, 1999

Used Brother TC-S2A Drilling machine, 1999 Sold

US USA 1999

Specification / Description Table Size 23.6" x 11.8" X-Axis Travel 18.9" Y-Axis Travel 14.2" Z-Axis Travel 10.6" Number of Tool Stations 14 Atc Maximum Spindle Speed 10,000 Rpm Spindle Taper BT-30 Spindle Motor 5.7 Hp Equipped With: Brother CNC A00 Control Nikken 4th Axis with 6" Chuck All available manuals

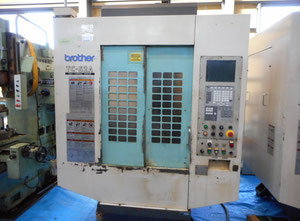

Brother CNC Vertical Machine Center TC-S2A (2003)

Brother CNC Vertical Machine Center TC-S2A (2003) Sold

TW Taiwan 2003

Axis X 480 mm
Axis Z 310 mm
Type of CNC CNC-A00
Table width 300 mm
Spindle taper BT30
Axis Y 360 mm
Rotary table (4th axis) no
Table length 600 mm
Number of tool pockets 14
Max. spindle speed 10000 rpm
Used BROTHER, Model TC-S2A. Cnc Vertical machining centre

Used BROTHER, Model TC-S2A. Cnc Vertical machining centre Sold

US USA 2001

length 1955.8 mm
height 2430.8 mm
Spindle taper BT 30
width 2672.1 mm
weight 1850.3 kg
Used Brother TC-S2A. Cnc Drilling & Tapping Machine, w/ Brother CNC-A00 Conversational Control

Used Brother TC-S2A. Cnc Drilling & Tapping Machine, w/ Brother CNC-A00 Conversational Control Sold

US USA 2004

Max. spindle speed 10000 rpm

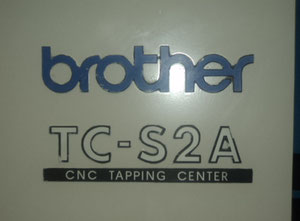

BROTHER - Año: 2001 - Modelo: TC-S2A

BROTHER - Año: 2001 - Modelo: TC-S2A Sold

US USA 2001

length 1574.8 mm
height 2387.6 mm
Axis X 457.2 mm
Axis Z 406.4 mm
Table length 584.2 mm
Spindle motor power 6.3 kW
width 1828.8 mm
weight 907.4 kg
Axis Y 355.6 mm
Type of CNC Brother
Table width 279.4 mm

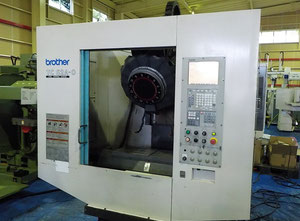

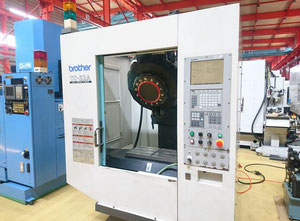

Brother TC-S2A Machining center - vertical

Brother TC-S2A Machining center - vertical Sold

JP Japan 2005

Axis X 480 mm
Axis Z 270 mm
Type of CNC CNC-A00
Table width 300 mm
Axis Y 360 mm
Rotary table (4th axis) no
Table length 600 mm
Max. spindle speed 10000 rpm

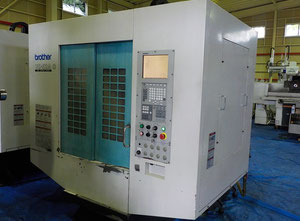

Brother TC-S2A Machining center - vertical

Brother TC-S2A Machining center - vertical Sold

JP Japan 2000

Axis X 700 mm
Axis Z 270 mm
Type of CNC CNC-A00
Table width 320 mm
Spindle taper BT30
Axis Y 360 mm
Rotary table (4th axis) no
Table length 800 mm
Number of tool pockets 14
Max. spindle speed 10000 rpm
Uesed 2003 Brother TC-S2A CNC Drilling & Tapping Machine

Uesed 2003 Brother TC-S2A CNC Drilling & Tapping Machine Sold

US USA 2003

Table length 599.4 mm
Table width 299.7 mm

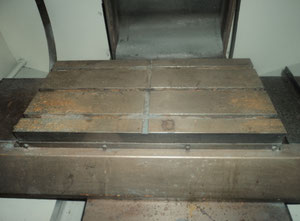

BROTHER TC-S2A Vertical machining centre

BROTHER TC-S2A Vertical machining centre Sold

MX Mexico 2001

length 1574.8 mm
height 2387.6 mm
Axis X 457.2 mm
Axis Z 406.4 mm
Table width 279.4 mm
Max. spindle speed 10000 rpm
width 1828.8 mm
weight 2000 kg
Axis Y 355.6 mm
Table length 584.2 mm
Max. part weight 150 kg
Sell your machines to buyers worldwide
Sell your machines to buyers worldwide

Sell your machines to buyers worldwide

Join 10,000+ companies already selling with us

Reach 500,000+ monthly visitors

Sell faster at a great price

No hidden fees, it's free

Sell your machine
or contact us

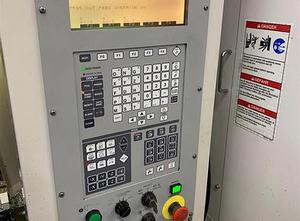

Brother TC-S2A

Brother TC-S2A Sold

US USA 2008

Rigid Tapping G Code Style Programming Conversational Type Programming Ability Cooant Tank with Pump All Available Manuals RS-232 Port for DNC Interface 7373 Cutting Hours *Rotary Table in Photos is NOT included Ran aluminum Specifications Manufacturer Brother Model TC-S2A Year 2008 Condition Used Stock Number 115967 Quantity 1 Control Brother CNC-A00
CNC Machining Centre (vertical) Brother TC-S2A

CNC Machining Centre (vertical) Brother TC-S2A Sold

CZ Czech Republic 2008

length 1600 mm
height 2360 mm
Axis X 480 mm
Axis Z 270 mm
Type of CNC Brother A00
Table width 300 mm
Spindle taper SK 30
Spindle motor power 5.5 kW
width 1800 mm
weight 1800 kg
Axis Y 360 mm
Rotary table (4th axis) no
Table length 600 mm
Number of tool pockets 14
Max. spindle speed 16000 rpm
Brother TC-S2A Machining center - vertical

Brother TC-S2A Machining center - vertical Sold

TW Taiwan 2000

Axis X 700 mm
Axis Z 270 mm
Table length 800 mm
Max. spindle speed 6000 rpm
Axis Y 360 mm
Rotary table (4th axis) no
Table width 320 mm
Used BROTHER TC-S2A. Vertical Machining Centre

Used BROTHER TC-S2A. Vertical Machining Centre Sold

MX Mexico 2001

length 1574.8 mm
height 2387.6 mm
Table length 584.2 mm
Spindle taper BT 30
width 1828.8 mm
weight 2000 kg
Table width 279.4 mm
Max. spindle speed 10000 rpm
Used Brother, Model TC-S2A. CNC Drill and Tapping Center

Used Brother, Model TC-S2A. CNC Drill and Tapping Center Sold

US USA 2004

SPECIFICATIONS: Axis Travel distance: X axis 18.8" Y axis 14" Z axis 10.6" Distance from table top surface to spindle end face 6" - 17" Table: Work area 23.6" x 11.8" Max. load weight (uniform load) 330 Lbs Spindle: Spindle speed 10 - 10,000 RPM Spindle speed when tapping Max .6,000 RPM Feed rate: Rapid traverse rate 1,417 IPM Cutting feed rate (XY) 39" - 393" Cutting feed rate (Z) 39" - 787" ATC: Tool shank type MAS. BT30 Pull stud type MAS. P30T-2 Tool storage capacity 14 Max. tool length 7.8" Max. tool weight 6.6 Lbs Tool change: Tool to Tool 1.1 Seconds Chip to Chip 1.8 Seconds Motor: Spindle motor (continuous for 30 minutes) 16 - 11 HP Equipped With: Brother CNC-A00 Conversational Control Indexer - Kitagawa YNC-170L with Tail Stock
Used Brother TC-S2A Tapping machine

Used Brother TC-S2A Tapping machine Sold

US USA 2000

weight 1846.6 kg

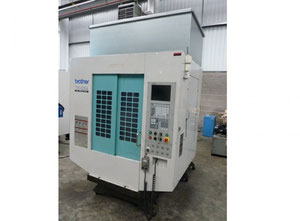

BROTHER TC-S2A vertical machining centre

BROTHER TC-S2A vertical machining centre Sold

GB United Kingdom 2011

Axis X 480 mm
Axis Z 270 mm
Table length 600 mm
Spindle taper BT30
Spindle motor power 12 kW
Axis Y 360 mm
Type of CNC Brother
Table width 300 mm
Max. spindle speed 10000 rpm

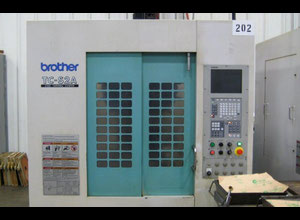

Used BROTHER TC-S2A. Drilling And Tapping Machine, w/ Brother Cnc-A00 Cnc Control

Used BROTHER TC-S2A. Drilling And Tapping Machine, w/ Brother Cnc-A00 Cnc Control Sold

US USA 2002

length 1955.8 mm
height 2438.4 mm
Table length 800.1 mm
Spindle taper BT30
width 2667 mm
weight 1851.2 kg
Table width 299.7 mm
Max. spindle speed 10000 rpm
Brother TC-S2A Machining center - vertical

Brother TC-S2A Machining center - vertical Sold

JP Japan 2001

Axis X 700 mm
Axis Z 270 mm
Type of CNC CNC-A00
Table width 320 mm
Spindle taper BT30
Axis Y 360 mm
Rotary table (4th axis) no
Table length 800 mm
Number of tool pockets 14
Max. spindle speed 10000 rpm
Used BROTHER TC-S2A Drill/Tap Center

Used BROTHER TC-S2A Drill/Tap Center Sold

US USA 2007

Specification / Description TABLE SIZE / 31.5" x 11.8" X-AXIS TRAVEL / 18.9" Y-AXIS TRAVEL / 14.2" Z-AXIS TRAVEL / 10.6" SPINDLE SPEED / 10,000 RPM MAX TAPPING SPEED / 6,000 RPM SPINDLE TAPER / BT 30 SPINDLE MOTOR / 8.4/7.1 HP SPINDLE NOSE TO TABLE TOP / 5.5" - 16.1" TOOLS / 14 TABLE LOAD CAPACITY / 330 LBS RAPID TRAVERSE RATES (X & Y / Z) / 1417 / 1969 IPM TOOL CHANGE TIME (T - T / C - C) / 1.1 / 1.8 SECONDS MAX TOOL DIAMETER / 3.15" MAX TOOL LENGTH / 7.87" MAX TOOL WEIGHT / 7 LBS MACHINE DIMENSIONS (L x W x H) / 77" x 105.2" x 95.7" MACHINE WEIGHT / 4,078 LBS Equipped With: BROTHER CNC-A00 CNC CONTROL 10.4" Monochrome LCD Conversational & G-Code Programming Yukiwa YNC-170L 6.7" Dia. CNC Rotary Indexer Remote Manual Pulse Generator Front Door Interlock Spindle Air Blast (14) Position Turret Mfg Date March 2007 7515 Power on Hours 3226 Cutting Hours

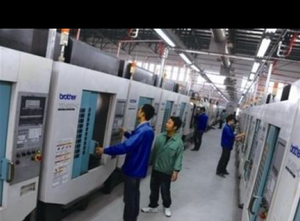

Brother TC-S2A Bar feeder

Brother TC-S2A Bar feeder Sold

TW Taiwan 2007

Spindle type Multi spindle
Max. spindle speed 16000 rpm
Type of feeder Automatic

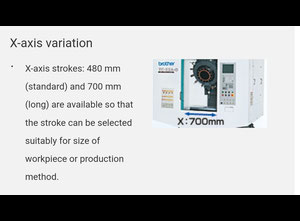

Brother TC-S2A Tapping machine

Brother TC-S2A Tapping machine Sold

TR Turkey 2003

Axis X 480 mm
Axis Z 270 mm
Max. spindle speed 16000 rpm
Axis Y 360 mm
Rotary table (4th axis) no
