Bosch CUT 120

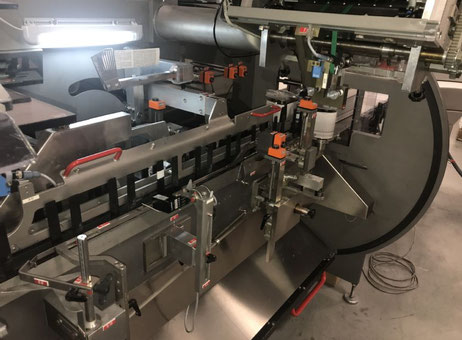

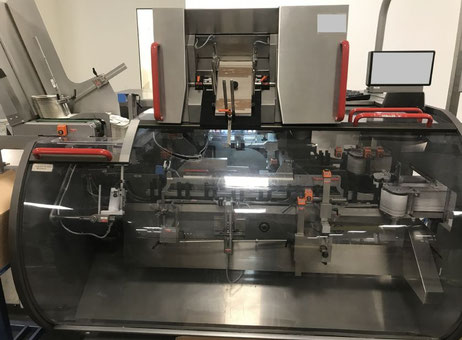

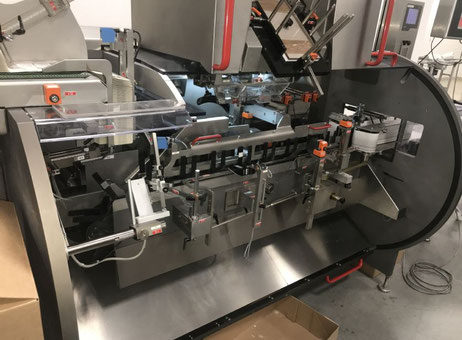

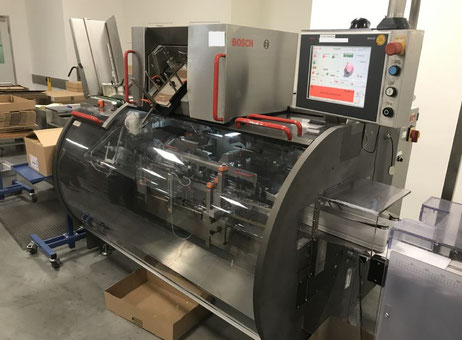

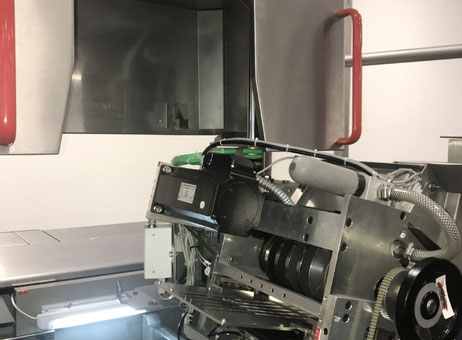

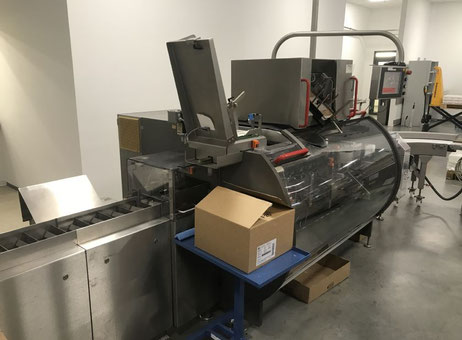

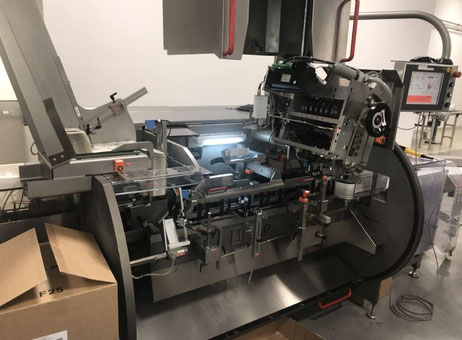

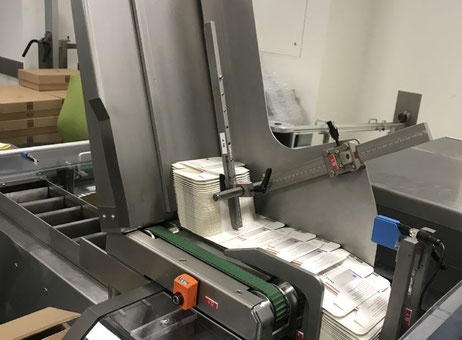

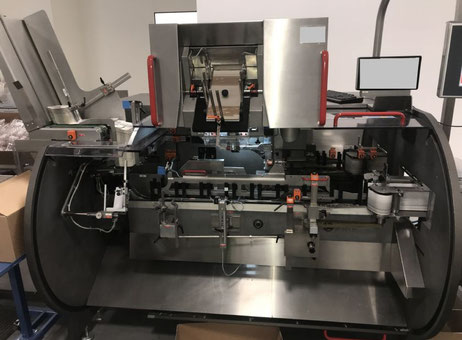

Automatic Intermittent Motion Horizontal Cartoner. State-of-the-art servo driven cartoner offers the quickest reproducible no-tool changeover in the industry. With speeds up to 120 cartons per minute, for carton size range: length 20 to 113 mm, width 15 to 113 mm, depth 50 to 200 mm. “Walk-in” machine access for quick and easy changeover. Rontech booklet feeder with the machine. Dimensions: Control panel 600mm x 800mm x 1000mm high, weight 35kg; Rontech Booklet Feeder 1100mm x 700mm x 2000mm high, weight 250 kg; Bosch Cut Cartoner 4700mm x 1700mm x 2300mm high, weight 2000kg The machine is currently set up for blisters but we could change the infeed system and make it suitable for bottles this would not be a problem. The machine would come complete with a set of manuals. The PLC system on the cartoner is a Siemens that works in conjunction with a computer system which stores the data. This is a very high end machine with a new value of €250,000. Our machine comes complete with the automatic blister infeed system. The machine was previously used by a top european pharmaceutical manufacturer. The machine was previously doing blisters and comes complete with a blister in-feed unit. The …

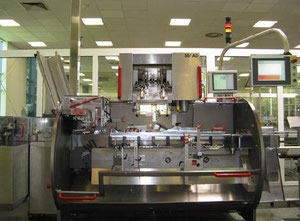

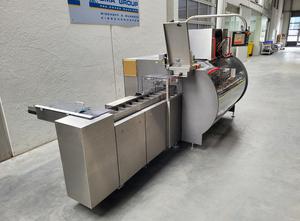

• Format range W 20-110, H 15-100, L 50-200 mm • Output max. 120 cartons/min, clocked • For staggered double-sided tuck-in closure • Centrally adjustable product chain • Product infeed conveyor for horizontal tubes/bottles • Code reading for 2x brochure code (front + rear), 1x folding box code, 1x brochure presence in folding box • Bosch brochure folding and inserting machine from magazine, servo drive • Colour embossing station for folding flap on insertion side, 3-line • Bad ejection with ejection counter control • Elau servos with servo controller 9x Elau PacDrive MC4 with 1x PacDrive MAx-4 • Bosch IPC control, operating system Windows NT 4.0 • New touch screen, menu languages German + English • Electr. connection 400V/50Hz

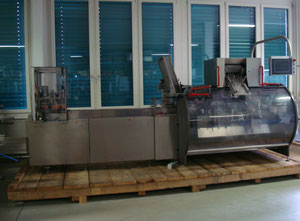

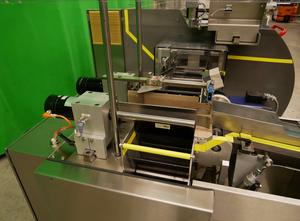

MODEL CUT 120, 20 x 15 x 50 MM minimum package size, 110 x 100 x 200 MM maximum package size, rated up to 120 cartons/minute Unit was manufactured in 2004 and is in excellent operating condition. Equipped with a mechanical interlock system. The machine frame is equipped for connection to and integration of folding unit Tuck-in, glue-type and combination closures. Carton magazine various product feed systems Carton magazine with singularization belt and usable carton stacking capacity of 500 mm height. Min. filling level sensor, product inserting system, Carton closing system, Running height adjustable between 780 - 860 mm. Servo drives allow fast, reproducible and toolless size changeover. 240/480 50-60/ 3 phases.

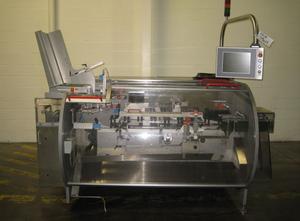

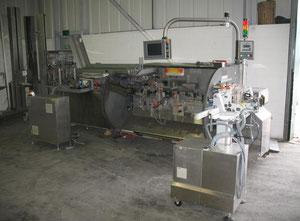

Used Bosch horizontal tuck cartoner, model CUT 120, stainless steel enclosure, speeds up to 120 cartons/minute, powered cartoner magazine, approximately 5" centers, L x W x H format, 20 x 15 x 50 mm min carton size, 110 x 110 x 200 mm max carton size, with operator interface and PLC controls, built 2000.

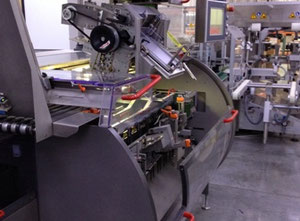

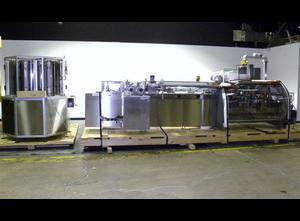

Used Bosch CUT120 automatic intermittent motion horizontal tuck cartoner, speeds up to 120 cartons per minute, adjustable bucket infeed on 5" centers for a carton size range: length 20 to 113 mm, width 15 to 113 mm, depth 50 to 200 mm, Multifeeder Technology high capacity 16 pocket rotary leaflet feeder, model HCRM125, Mutifeeder series MFT250IP friction feeder, APL1250 automatic product loader, cascading pouch transfer system, 6' L extended carton magazine, embosse date coder, bar code scanner and verification system, unit has all stainless steel contact points with an aluminum frame, automatic pouch transfer and verification system, Allen-Bradley Kinet 1x6000 controls and a VersaView 1200P panel, requires 80 min psi, 3/60/480V, built 2007.

One (1) used Bosch horizontal tuck cartoner, model CUT120, stainless steel enclosure, speeds up to 120 cartons/minute, powered cartoner magazine, approximatley 5" centers, L xW x H format, 20 x 15 x 50 mm min carton size, 110 x 110 x 200 mm max carton size, with operator interface and PLC controls, 1106W, new 2000.

Box formates (5 inch) width 20-110, height 15-100, length 50-200 mm, for tuck end flaps, output max. 120 boxes/min, PCE code reader for leaflet top, leaflet bottom, box code, leaflet presence in box, PCE operation by external monitor, 2 fully automatic level layer, extendet bucket chain, brochure folding and inserting machine GUK, type Cartonac 2000 F21/4, hot printing device Allen Compact S, operating system Windows NT4, maintained every 3 months, drive 380 V/50 Hz, IQ/OQ documentation (without part 11) available

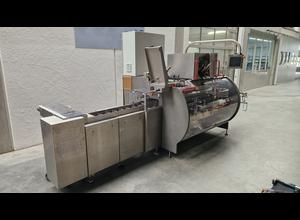

Cartoner BOSCH CUT 120, year 2002, GMP, 120T/min, format range W 20-110, H 15-100, L 50-210 mm, intermittent motion, folder GUK, ARGUS Laetus, CE certified, Bosch operating screen, (Pharma)
