SANGIACOMO T130R CE Mechanical press
Price on request
| ------------------- | |
| worked hours | |
| hours under power | |
| state | revised |
| At local norms | yes |
| status | visible |
This listing is for a SANGIACOMO T130R CE mechanical press manufactured in 2004. The press offers a nominal force of 1300 kN and features an adjustable stroke ranging from 16 mm to 200 mm, with a nominal stroke of 7.5 mm. It has a stopping position at P.M.S and a mace adjustment capacity of 100 mm. The press operates with a stopping time of 190 milliseconds and supports a stroke rate between 10 and 55 strokes per minute. The maximum mold surface measures 600 mm by 1100 mm, with mold height adjustable between 260 mm and 452 mm when closed. The upper mold mass capacity is 140 kg. The flywheel completes 411 turns at 1°, allowing for up to 28 insertions per degree. Installed power is 11 kW, with a main voltage of 400 V and auxiliary voltage of 24 V. The working air pressure ranges from 5.5 to 6 bar, and the total mass of the machine is approximately 10,000 kg.
The press includes motorized mace adjustment and hydraulic overload safety features, along with an inverter for speed control. The work surface has been brightened using CNC machining for precision. Several new components have been installed, including complete safety guards with safety keys, clutch blades, motor, engine pulley, belts, clutch pins, swivel joint bearings, motorized worm gear adjustment bearings, flywheel bearings, an electric panel with a touchscreen interface, foot pedals, air pressure gauges, a sledgehammer overtravel sensor, and balance cylinder seals.

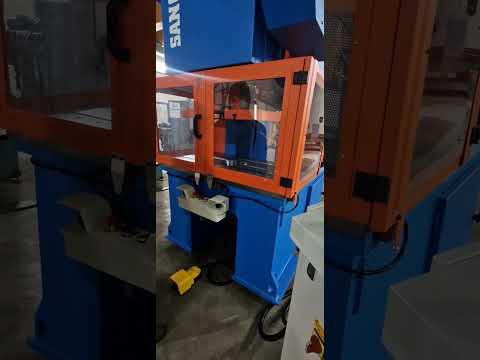

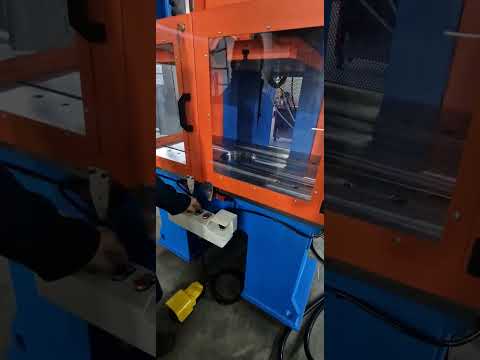

Visually, the press is painted blue with an orange safety guard enclosure around the working area. The brand name "SANGIACOMO" is clearly visible on the side. The control panel is white and features multiple push buttons, a touchscreen display labeled "ANDOLINA," selector switches with Italian labels, and an emergency stop button. A yellow foot pedal is positioned near the base for operator control. Inside the machine compartments, blue-painted air pressure regulators with gauges and black hoses are installed, along with various valves and tubing assemblies. The electrical cabinet houses wiring, circuit breakers, and an INVT variable frequency drive (VFD). The operator control station mounted on the press includes an emergency stop button, selector switch, and push buttons, with protective cable conduits for wiring.
This comprehensive setup ensures operational safety and control, making the SANGIACOMO T130R CE a robust mechanical press suitable for industrial applications requiring precise and adjustable pressing capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL FEATURES:
Press Model: T130R CE
Year of construction: 2004
Nominal force: kN 1300
Nominal stroke: mm.7.5
Adjustable stroke: mm.16÷200
Stopping position: P.M.S
Mace adjustment: mm.100
Stopping time: Ms 190
Min./max. strokes per minute: 10/55
Max. mold surface: mm.600xmm.1100
Mold height closed max: mm.452
Mold height closed min: mm.260
Upper mold mass: kg. 140
Flywheel turns at 1°: 411
Max. insertions at 1°: 28
Installed power: KW 11
Voltage: V400
Auxiliary voltage: V24
Working air pressure: BAR 5.5÷6
Mass: Kg. 10.000
Motorized mace adjustment
Hydraulic overload safety
Inverter
Complete with user manual and CE compliance and 6-month warranty.
- Work surface brightened on CNC machine;
NEW COMPONENTS INSTALLED:
- Safety guards complete with safety keys;
- Clutch blades;
- Motor;
- Engine pulley;
- Engine belts;
- Clutch pins and brite;
- Swivel joint bearings;
- Motorized worm gear adjustment bearings;
- Flywheel bearings;
- Electric panel with touch screen;
- Foot pedals;
- Air pressure gauges;
- Sledgehammer overtravel sensor;
- Balance cylinder seals.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
When was this SANGIACOMO T130R CE mechanical press manufactured?
This SANGIACOMO T130R CE mechanical press was manufactured in 2004.
Does this equipment come with a user manual and CE documentation?
This equipment includes a user manual and CE compliance documentation.
What recent updates have been made to this SANGIACOMO T130R CE?
This SANGIACOMO T130R CE mechanical press has undergone recent updates, including the installation of new components such as safety guards, clutch plates, motor, motor pulley, motor belts, and various bearings.
Does this equipment have a touchscreen control panel?
This equipment features a control panel with a touchscreen interface.
What features does this SANGIACOMO T130R CE include?
This SANGIACOMO T130R CE mechanical press is equipped with air pressure gauges and a stroke sensor.
Is a foot pedal included with this equipment?
This equipment includes a foot pedal for operation.
What is the warranty period for this SANGIACOMO T130R CE?
This SANGIACOMO T130R CE mechanical press has a warranty period of 6 months.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
