30,000 €
Make an offer| Output capacity | 1500 u/h |
| Capper included | no |
| Labeler included | no |
| Conveyor included | no |
| Rinsing / sterilization system | no |
| Asceptic filling | no |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible |
| Last availability date | 13/05/2026 |
This GAI 1605 TOP bottle filling machine, manufactured in 2007, is designed for high-efficiency filling operations with an output capacity of 1500 liters per hour. It features a two-stage air–water rinsing system constructed from stainless steel. Bottles are gripped by the neck using mechanical jaws and inverted via a rack-and-pinion mechanism. The injector penetrates the bottle to a depth of 70 mm, activating only when the bottle is present to avoid any glass-to-metal contact. The rinsing liquid is collected in a closed circuit, preventing any wetting of the machine. Electric height adjustment is incorporated for operational flexibility.
The machine includes a bottle deaeration station that removes nearly 90% of the air inside the bottle using a high-efficiency vacuum pump. Following deaeration, the bottle is filled with a neutral gas such as nitrogen or CO2, depending on customer requirements. The filling system is gravity-fed with a slight vacuum, and the nozzles simultaneously seal both the product flow and the air return tube to prevent ambient air contact. Filling levels range from 30 to 90 mm flush with the bottle neck. Product feeding occurs through the lower and central parts of the tank, facilitating natural and complete drainage during production. The flow is regulated by a pneumatic solenoid valve, and the tank’s washing and sterilization fluids drain from the top. Filling nozzles can be locked open during cleaning operations. Mechanical, spring-loaded, cam-returned clamps lift the bottles during filling.
A gas injector positioned before the capping station reduces oxygen between the product and the cap, equipped with a dummy bottle for sterilization purposes. The cork sealer employs an 8-point star mechanism with four hardened, ground, and polished stainless steel jaws to slowly seal 16 mm diameter corks. A vacuum pump creates a vacuum in the bottle neck to prevent pressure buildup during cork insertion, reducing leakage risk. The head and centering cone are designed for easy disassembly.
Bottle feeding and conveyance are managed via a screw conveyor. The machine is equipped with a control panel featuring a touchscreen interface located on the left side for user-friendly operation. It has a stainless steel frame with protective glass enclosure and adjustable feet for leveling. Safety protections comply with CE standards. The machine includes 9 rinsing nozzles, 9 filling nozzles, and 1 corker, capable of processing approximately 1800 bottles per hour.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
■ Two-stage (air–water) rinsing machine made of stainless steel. The jaws grip the bottle by the neck, and the bottle is turned upside down
mechanically via a rack-and-pinion system. The injector penetrates the bottle to a depth of 70 mm. Injection occurs
only when the bottle is present, via a system that prevents any glass-to-metal contact. The drainage liquid is collected by a
closed circuit without wetting the machine. The jaws return to their normal position and, as they open, allow the
exit star wheel to place the bottle back on the conveyor. Electric height adjustment.
■ Bottle deaeration station. Nearly 90% of the air inside the bottle is removed using a high-efficiency vacuum pump.
The bottle is then filled with a neutral gas, depending on the customer’s choice (nitrogen or CO2).
■ Gravity-fed filler with slight vacuum. The filling nozzles simultaneously close off both the product flow and the air return tube,
preventing any contact between the interior of the tank and ambient air. Filling levels from 30 to 90 mm flush with the neck. Product is fed into
the machine through the lower and central parts of the tank to allow for natural and complete drainage at the end of
production. The flow is controlled by a pneumatic solenoid valve. The tank’s washing and sterilization fluids are
drained from the top. The filling nozzles can be locked in the open position during washing and
sterilization operations. The bottle lifting clamps are mechanical, spring-loaded, and cam-returned.
■ The gas injector prior to capping significantly reduces the amount of oxygen between the product and the cap (the injector is
equipped with a dummy bottle for sterilization).
■ The cork sealer, featuring an 8-point star mechanism, slowly seals the 16 mm diameter cork using four
hardened, ground, and polished stainless steel jaws. A high-efficiency vacuum pump creates a vacuum in the bottle neck
so that the rapid insertion of the cork does not create pressure, thereby preventing the risk of leakage. Disassembly of the head and
the centering cone is very simple.
Bottle feeding and conveyance via a screw conveyor.
Workplace safety protection compliant with CE standards.
9 rinsing nozzles / 9 filling nozzles / 1 corker / 1,500 L/h / 1,800 bottles/h
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Is this GAI 1605 TOP filling machine available for immediate purchase?
This GAI 1605 TOP filling machine is available immediately.
Can this GAI 1605 TOP filling machine perform tests with water?
This GAI 1605 TOP filling machine can perform tests with water.
What diameters of bottles can this equipment accommodate?
This equipment is equipped with multiple tools for bottle passage with diameters of 69 mm, 85 mm, 91 mm, and 112 mm.
Is the filling level adjustable on this GAI 1605 TOP?
The filling level of this GAI 1605 TOP is adjustable.
When was this GAI 1605 TOP machine manufactured?
This GAI 1605 TOP filling, capping, and sealing machine was manufactured in 2007.
Is this equipment fully functional?
This equipment is fully functional.
Does the unit require a revision?
The unit requires a revision if purchased.
Why was this GAI 1605 TOP machine taken back?
This GAI 1605 TOP machine was taken back as part of an upgrade for a client.
Is a video of the machine in operation available?

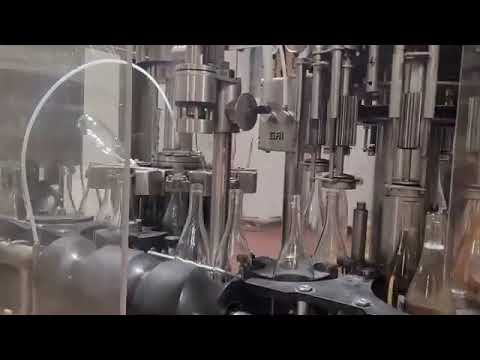

A video of the machine in operation is available at https://youtu.be/caDbKVQB13E.
What type of machine is the GAI 1605 TOP?
This GAI 1605 TOP is a filling, capping, and sealing machine.
What year was this equipment manufactured?
This equipment was manufactured in the year 2007.
What type of machine is the GAI 1605 TOP?
This GAI 1605 TOP is a filling, capping, and sealing machine.
When was this equipment manufactured?
This equipment was manufactured in 2007.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
