| Manufacturer | Estinvest Impianti |
|---|---|
| Model | ALPE 5TL XR3 |
| Year | |
| Location | Poland
|
The Estinvest Impianti ALPE 5TL XR3 is an automatic rotary banding machine designed for efficient labeling of bottles. It features a robust build with a total weight of approximately 1300 kg and dimensions measuring 2600 mm in length, 2000 mm in width, and 2900 mm in height. The machine operates with an installed power of 2 kW and requires a supply voltage of 380 V, 3-phase with ground and neutral. It operates under an air pressure of 6 bar, with the labeling station pressure adjustable between 3.5 to 4 bar via a regulator located at the back of the machine.
This model is equipped with five labeling heads, allowing it to handle bottles with diameters ranging from 50 to 120 mm. The banderola (label) dimensions supported by the machine have a maximum length of 200 mm and a maximum width of 22 mm. The labeling capacity is approximately 2000 bottles per hour, although this figure is to be confirmed upon receipt of sample bottles.

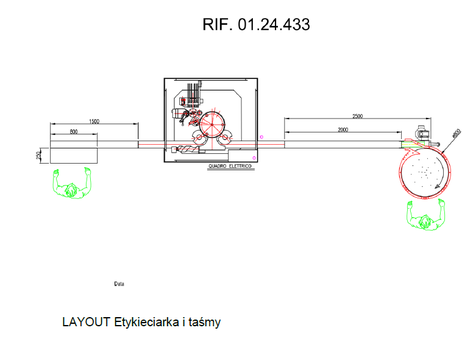

The machine includes a conveyor system with a loading belt at the entrance measuring 1.5 meters in length, which includes the chain extraction end head. Alongside the belt is a rectangular stainless steel loading table designed for manual bottle insertion. At the exit, a straight conveyor belt extends 2.0 meters, leading to a rotary collecting table with drive, facilitating efficient bottle collection post-labeling.

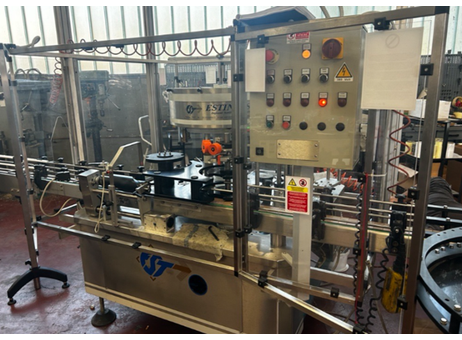

The machine is enclosed within a transparent protective safety guard, enhancing operator safety while allowing clear visibility of the labeling process. The control panel features multiple buttons and indicator lights, providing comprehensive operational control. The overall condition of the machine appears clean and well-maintained, suitable for integration into production lines requiring reliable rotary banding solutions.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Automatic rotary banding machine
WEIGHT: ........................................................... 1300 KG 5
LENGTH: ...................................................... 2600 MM
WIDTH: ................................................. 2000 MM
HEIGHT: ................................................... 2900 MM
INSTALLED POWER: ............................... 2 kW
SUPPLY VOLTAGE: ................................... 380 V 3 phase+ground+N
AIR PRESSURE: ............................... 6 BAR
LABELING STATION PRESSURE: ..... 3.5-4 BAR (set
with the regulator on the back of the machine)
QUANTITY OF HEADS: ............................................. 5
BOTTLE DIAMETER: .................................... FROM 50-120 MM
BANDEROLA DIMENSIONS: ................................. length max 200 mm, width max 22 mm
Capacity of labeling machine about 2000 bottles/hour (will be confirmed after receiving samples) .- rotary - entrance of containers from the left.
Loading belt at the entrance in front of the banding machine , length 1.5 m including the end head of the chain extraction.
Rectangular loading table for bottles made of stainless steel , mounted along the belt for manual insertion of bottles.
Straight belt with a length of 2.0 m at the exit
Rotary collecting table with drive for bottles behind the banding machine .
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
