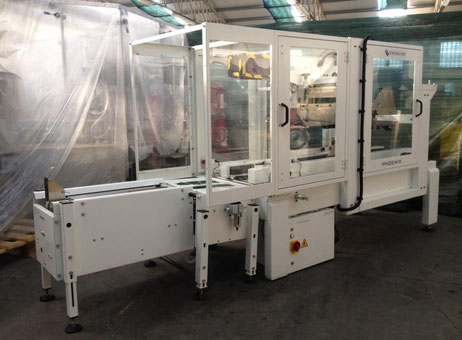

DESCRIPTION:

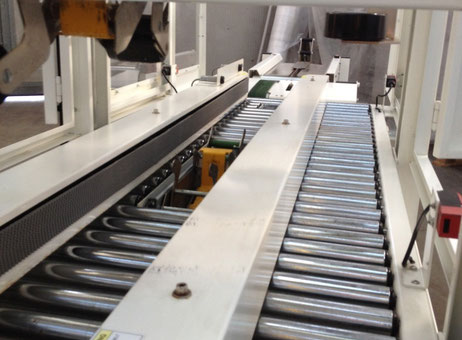

Semiautomatic case former that folds the lower minor and major flaps of the box and holds the open case steady to allow packing to take place with both hands. The unit can operate in the horizontal or angled plane depending on products being packaged, angled being more suitable for bags or bottles. The machine incorporates a section with an electrically under driven horizontal belt conveyor to forward on the case to the fully automated operator free pre-set case machine that transports the case by an electrically driven side gripping belt conveyor and seals cases by folding the top flaps and seals with a self adhesive taping unit (top & bottom).

SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.

MAIN FEATURES:

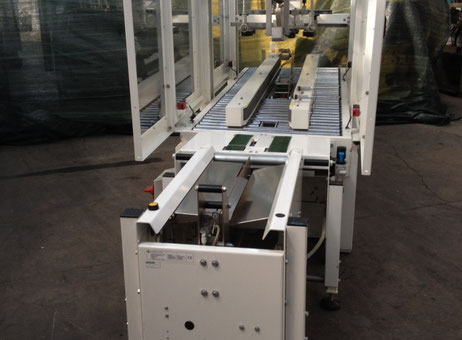

Front station: Endoline Case Former Model 121
Angled setting: Variable but approximately 15 degrees from the horizontal plane
Conveyor: 450mm L x 850mm W, Weight: Approximately 100kg
CE rated, Material: Mild steel, powder coated white (RAL9010)

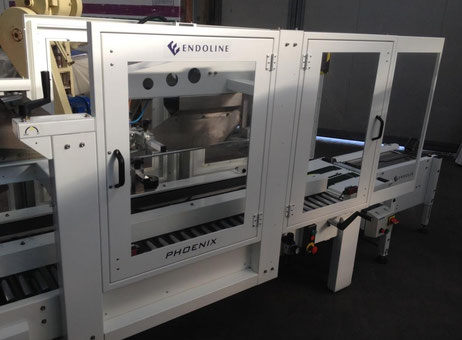

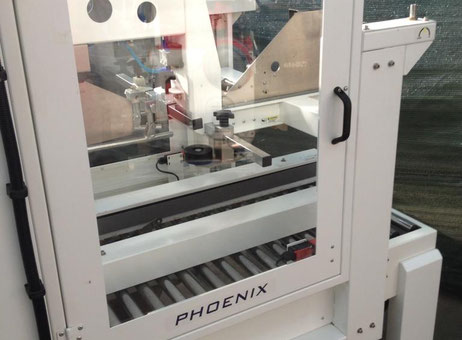

Second Station: Endoline Phoenix Range Self Adhesive Case Taper Model type: P6FPT
The side and top of the Phoenix has side mounted safety guards / hinged door assembly
Approximate front and rear wipe down of 55mm with a knife cut off.

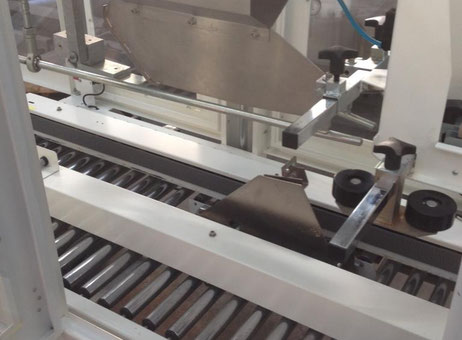

Tape applicator: Model TU5055
CE rated, Material: Mild steel, powder coated white(RAL9010)

Year: 2008

TECHNICAL DATA
Length mm 3150
Width mm 900
Height mm 1600
weight ca. Kg 900
Frequency Hz 50
Voltage Volt 415
Phases 3
Compressed air bar 5,5
Min case size (case former) 200 x 125 mm
Max case size (case former) 600 x 250 mm
Min case size (case taper) 120 x 100 x 110 mm
Max case size (case taper) 610 x 500 x 500 mm
Max tape diameter 300 mm
Tape width 38-50 mm
Capacity 25 cases / min

Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. Exapro recommends to check the details with the seller before a purchase

Output 25 /min
-------------------
Worked hours
Hours under power
State good
At local norms ---------
Status
Client type Reseller
Active since 2009
Offers online 1036
Last activity March 28, 2024
