Specifications

Turning Ø 285 mm
Type of CNC
X-axis 300 mm
Z-axis 285 mm
Spindle taper
Spindle bore 45 mm
Turning speed 6000 rpm
Spindle motor power 5.5 kW
Tailstock no
Bar feeder no
-------------------
Length x width x height 1958.0 × 1648.0 × 2430.0
Weight 1650 kg
Worked hours
Hours under power
State good
At local norms ---------
Status

Description

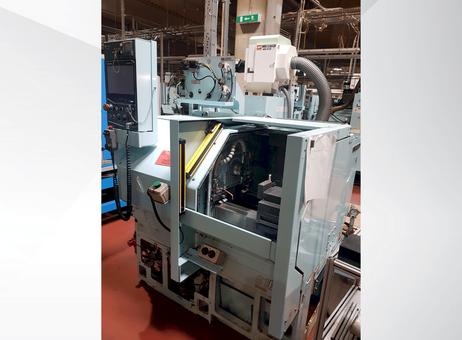

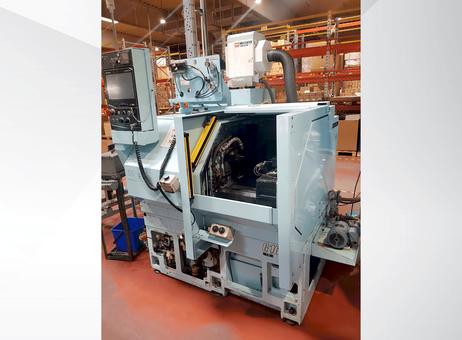

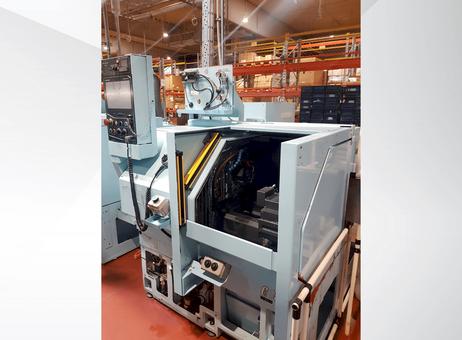

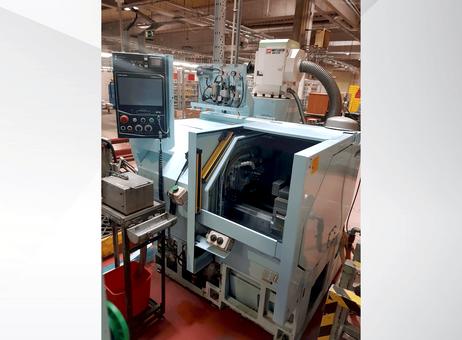

This lathe was manufactured in 2017. The DMG MORI WASINO G 100 | 300 features a maximum turning diameter of 285 mm and a standard diameter of 60 mm. It supports bar work up to 38.1 mm and offers rapid traverse rates of 12000 mm/min on the X-axis and 20000 mm/min on the Z-axis. With a spindle speed up to 6000 min⁻¹, this machine is ideal for efficient operations. For more information about this lathe, please reach out to us.

Machine width: 1648 mm
Machine depth: 1958 mm
Machine height: 2430 mm
Machine weight: 1650 kg
Spindle speed range: 6000 rpm
Spindle motor power: 5.5 kW
X-Axis Movement: 300 mm
Z-Axis Movement: 285 mm
Air pressure: 0.5 MPa

High rapid traverse rates
High spindle speed (above 6000 min⁻¹)
Machine still under power

Units available: 4
Max. Turning Diameter: 285 mm (11.22 in)
Standard Turning Diameter: 60 mm (2.36 in)
Bar Work Capacity: 38.1 mm (1.5 in)
Spindle Nose Type: 100 mm (3.93 in) flat
Through Spindle Hole Diameter: 45 mm (1.77 in)
Spindle Bearing Inner Diameter: 75 mm (2.95 in)
Shank Height for Square Tool: 16 mm (0.63 in)
Shank Diameter for Boring Bar: 20 mm (0.79 in)
Rapid Traverse Rate:X-axis: 12000 mm/min (472.44 ipm)
Z-axis: 20000 mm/min (787.40 ipm)
Jog Feedrate: 0 - 5000 mm/min (196.85 ipm)
Motors:Spindle Drive Motor (40%/Continuous): 5.5/3.7 kW (7.33/4.93 HP)
Feed Motors: X-axis: 0.75 kW (1 HP), Z-axis: 1.2 kW (1.6 HP)
Hydraulic Pump Motor: 0.75 kW (1 HP)
Lubricating Pump Motor: 0.04 kW (0.053 HP)
Coolant Pump Motor: 0.18 kW (0.24 HP)
Cooling Oil Pump Motor: 0.06 kW (0.08 HP)
Compressed Air Supply: 0.5 MPa (72.5 psi), 80 L/min
Tank Capacities:Hydraulic Oil Tank Capacity: 10 L (2.65 gal)
Lubricating Oil Tank Capacity: 2 L (0.52 gal)
Coolant Tank Capacity: 147 L (38.88 gal)
Oil Heat Exchanger Tank Capacity: 10 L (2.65 gal)
Machine Mass with loader specification: 2165 kg

Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase


Client type Reseller
Active since 2019
Offers online 1028
Last activity Dec. 5, 2024

Description

This lathe was manufactured in 2017. The DMG MORI WASINO G 100 | 300 features a maximum turning diameter of 285 mm and a standard diameter of 60 mm. It supports bar work up to 38.1 mm and offers rapid traverse rates of 12000 mm/min on the X-axis and 20000 mm/min on the Z-axis. With a spindle speed up to 6000 min⁻¹, this machine is ideal for efficient operations. For more information about this lathe, please reach out to us.

Machine width: 1648 mm
Machine depth: 1958 mm
Machine height: 2430 mm
Machine weight: 1650 kg
Spindle speed range: 6000 rpm
Spindle motor power: 5.5 kW
X-Axis Movement: 300 mm
Z-Axis Movement: 285 mm
Air pressure: 0.5 MPa

High rapid traverse rates
High spindle speed (above 6000 min⁻¹)
Machine still under power

Units available: 4
Max. Turning Diameter: 285 mm (11.22 in)
Standard Turning Diameter: 60 mm (2.36 in)
Bar Work Capacity: 38.1 mm (1.5 in)
Spindle Nose Type: 100 mm (3.93 in) flat
Through Spindle Hole Diameter: 45 mm (1.77 in)
Spindle Bearing Inner Diameter: 75 mm (2.95 in)
Shank Height for Square Tool: 16 mm (0.63 in)
Shank Diameter for Boring Bar: 20 mm (0.79 in)
Rapid Traverse Rate:X-axis: 12000 mm/min (472.44 ipm)
Z-axis: 20000 mm/min (787.40 ipm)
Jog Feedrate: 0 - 5000 mm/min (196.85 ipm)
Motors:Spindle Drive Motor (40%/Continuous): 5.5/3.7 kW (7.33/4.93 HP)
Feed Motors: X-axis: 0.75 kW (1 HP), Z-axis: 1.2 kW (1.6 HP)
Hydraulic Pump Motor: 0.75 kW (1 HP)
Lubricating Pump Motor: 0.04 kW (0.053 HP)
Coolant Pump Motor: 0.18 kW (0.24 HP)
Cooling Oil Pump Motor: 0.06 kW (0.08 HP)
Compressed Air Supply: 0.5 MPa (72.5 psi), 80 L/min
Tank Capacities:Hydraulic Oil Tank Capacity: 10 L (2.65 gal)
Lubricating Oil Tank Capacity: 2 L (0.52 gal)
Coolant Tank Capacity: 147 L (38.88 gal)
Oil Heat Exchanger Tank Capacity: 10 L (2.65 gal)
Machine Mass with loader specification: 2165 kg

Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
