Price on request
Make an offer| Axis X | 2200 mm |
| Axis Y | 560 mm |
| Axis Z | 720 mm |
| Rotary table (4th axis) | no |
| Type of CNC | |
| Table length | 2600 mm |
| Table width | 600 mm |
| Max. part weight | 2200 kg |
| Number of tool pockets | |
| Spindle taper | |
| Max. spindle speed | 18000 rpm |
| Spindle motor power | 25 kW |
| ------------------- | |
| Length x width x height | 2600.0 × 600.0 × - |
| Weight | 2200 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | DMG DMF 220 Linear |
| Last availability date | 23/04/2026 |

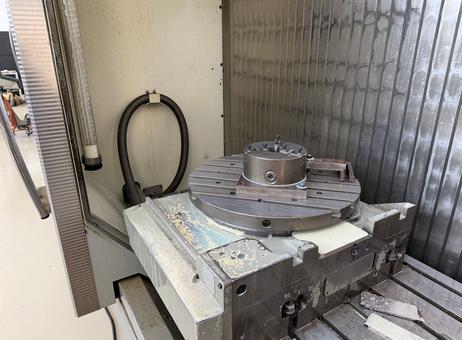

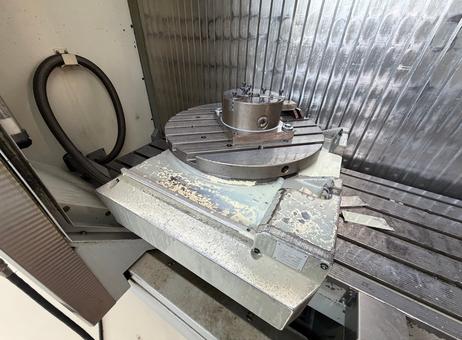

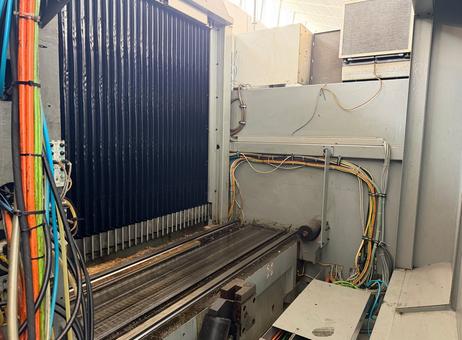

The DMG DMF 220 Linear is a vertical 5-axis machining center designed for medium-sized machining tasks. It features a moving column structure with a linear motor on the X-axis, providing high machining dynamics with axis travels of 2200 mm on X, 560 mm on Y, and 720 mm on Z. The machine includes a worktable measuring 2600 x 600 mm capable of supporting a maximum part weight of 2200 kg. A rotary table with a diameter of 550 mm can be mounted vertically or horizontally to enhance machining flexibility.

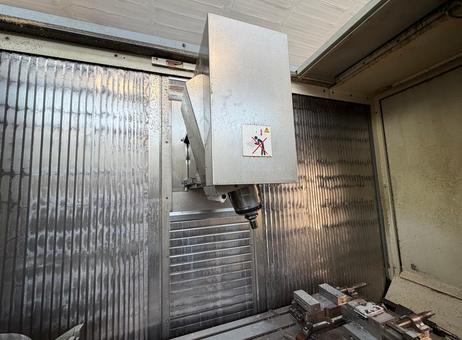

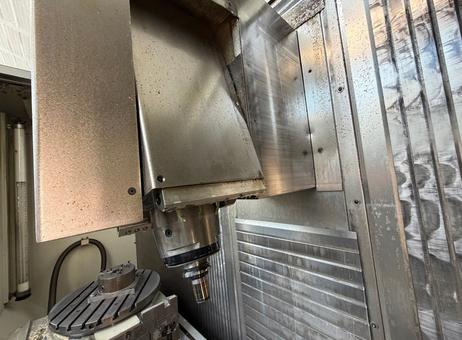

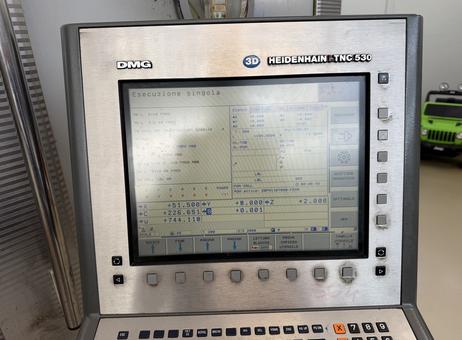

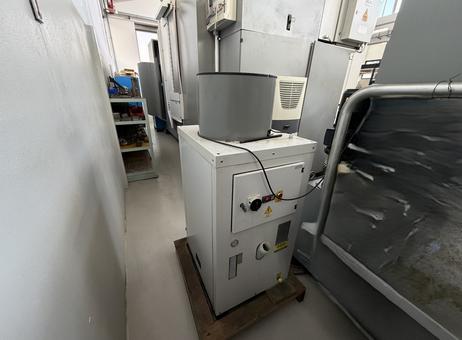

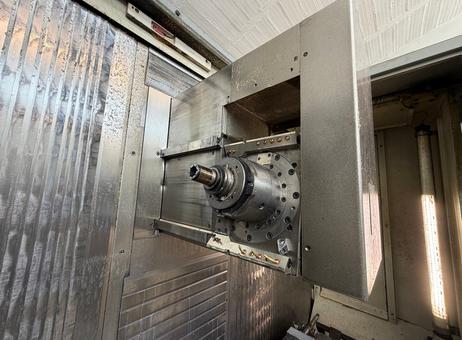

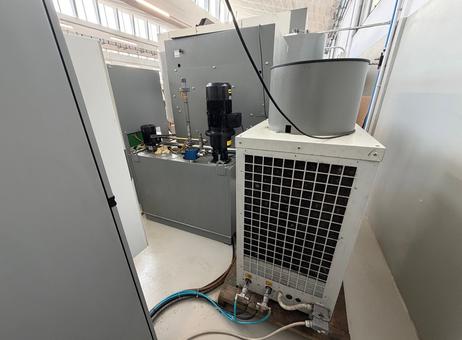

This machining center is equipped with a powerful 25 kW spindle motor capable of speeds up to 18,000 rpm, supporting a variety of machining applications. The spindle is ISO 40 and cooled by a dedicated chiller system. The machine control is managed by a HEIDENHAIN i-TNC 530 CNC system, enabling precise 5-axis continuous machining with B-axis tilting of ±100° and C-axis rotation of 360°.

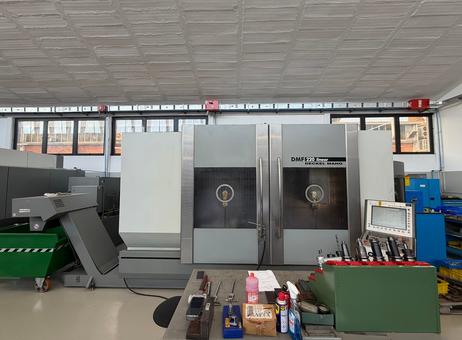

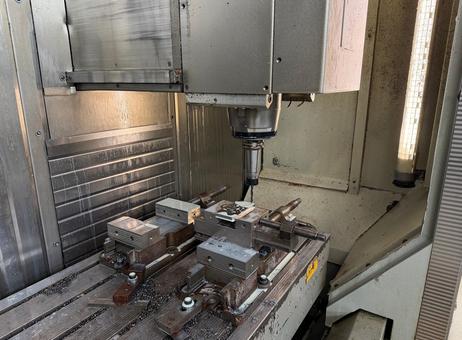

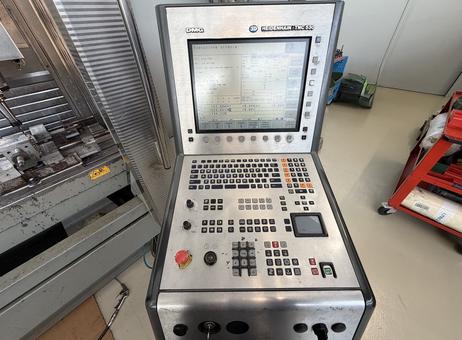

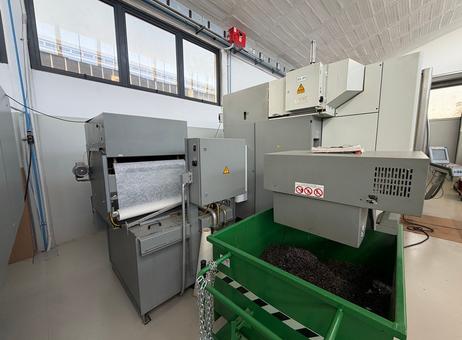

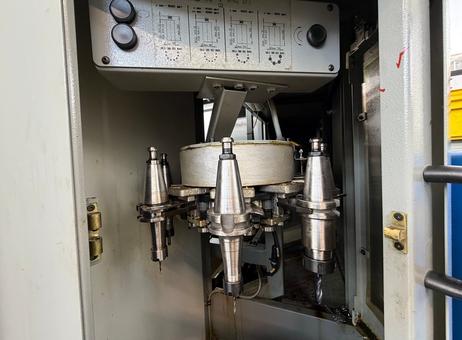

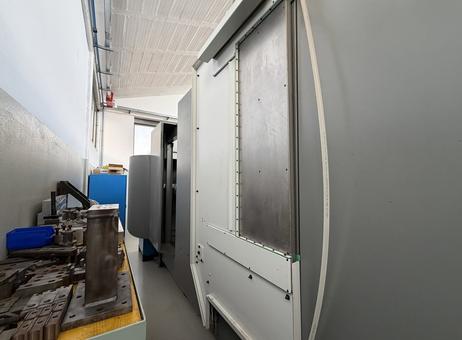

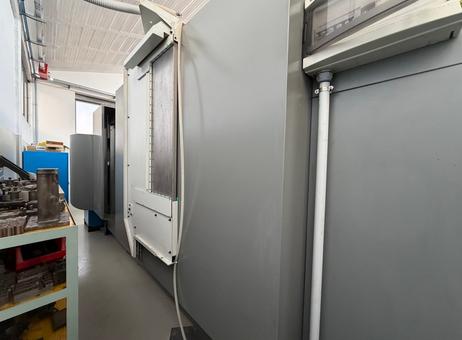

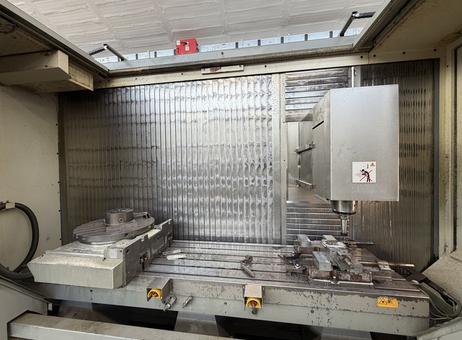

The machine includes a chip conveyor system to facilitate chip removal and maintain a clean working environment. The enclosure has dual front doors and a control panel with a screen and various buttons located on the right side for operator convenience. A tool holder rack with multiple tool holders is positioned near the control panel. The interior machining area shows signs of use, including metal chips and coolant residue, indicating the machine has been actively used.
Manufactured by DMG in 2007, this model is CE compliant and suitable for complex machining tasks requiring high precision and dynamic performance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Used DMG DMF 220 Linear 5-axis machining center
The used DMG DMF 220 Linear 5-axis machining center is a medium-sized machine with a moving column structure and a linear motor on the X-axis, ensuring high machining dynamics of up to 100 m/min on the X-axis and up to 50 m/min feed rate on the Y and Z axes for continuous 5-axis machining.

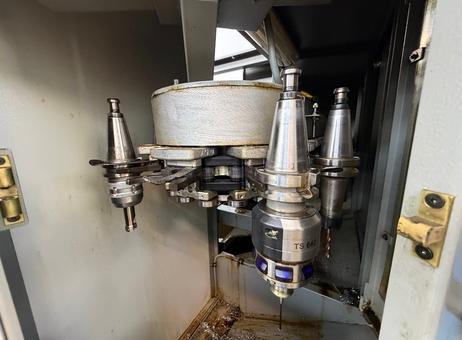

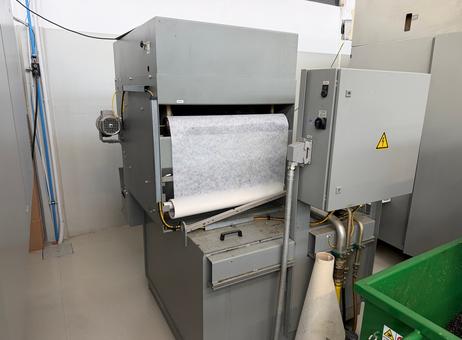

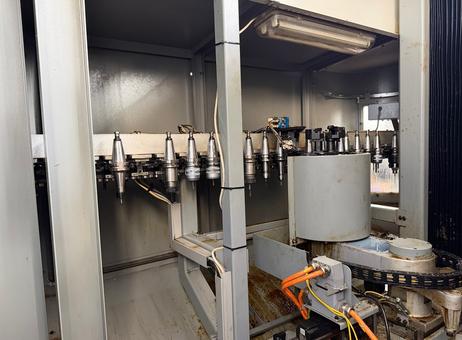

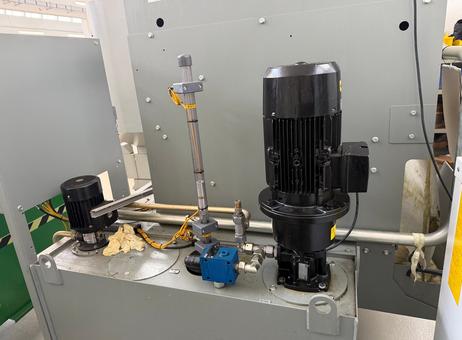

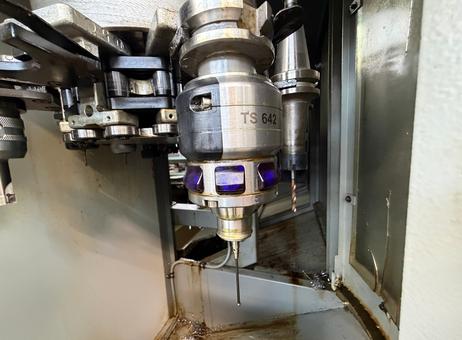

It is equipped with a partition for 2-pallet change operations, a 60-position tool magazine, an ISO 40 electric spindle running at 18,000 rpm with a maximum power of 25/35 kW and up to 130 Nm of torque, cooled by a dedicated chiller, optical encoders, BLUM laser tool presetting, HEIDENHAIN TS 640 workpiece probing system with wireless transmission, dual ROTOCLEAR viewing windows, chip conveyor, high-pressure spindle cooling system with paper filter, and integrated oil mist extraction system.

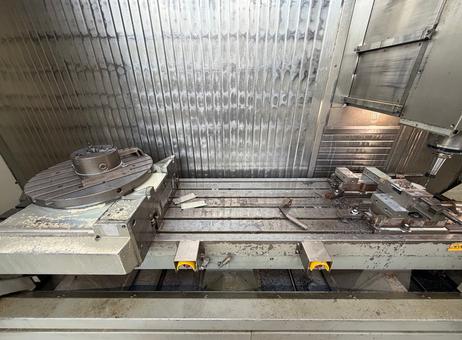

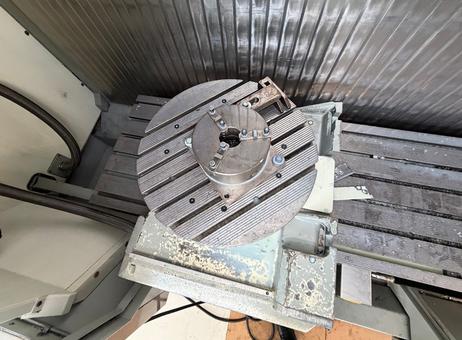

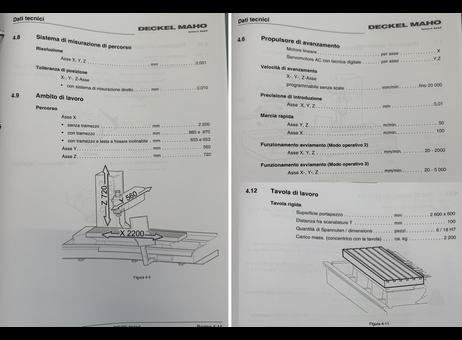

Axis travels: X 2,200 mm (or 2 areas of 850 mm each with partition installed), Y 560 mm, Z 720 mm, with a 2,600 x 600 mm worktable with a load capacity of up to 2,200 kg and a rotary table (with the option of vertical or horizontal mounting) with a diameter of 550 mm; B-axis movement (tilting head): +/-100° continuous, C-axis movement: 360° continuous, HEIDENHAIN i-TNC 530 CNC, built in 2007, CE compliant.

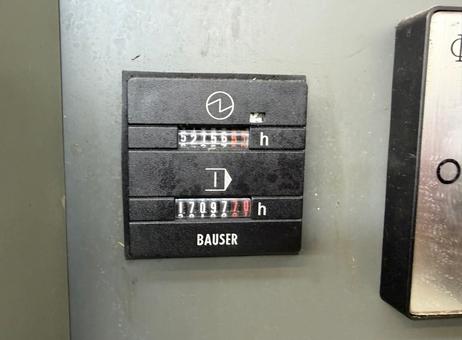

Machine in excellent condition with approximately 17,000 spindle hours.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 64 |
| Last activity | May 20, 2026 |
Used DMG DMF 220 Linear 5-axis machining center
The used DMG DMF 220 Linear 5-axis machining center is a medium-sized machine with a moving column structure and a linear motor on the X-axis, ensuring high machining dynamics of up to 100 m/min on the X-axis and up to 50 m/min feed rate on the Y and Z axes for continuous 5-axis machining.
It is equipped with a partition for 2-pallet change operations, a 60-position tool magazine, an ISO 40 electric spindle running at 18,000 rpm with a maximum power of 25/35 kW and up to 130 Nm of torque, cooled by a dedicated chiller, optical encoders, BLUM laser tool presetting, HEIDENHAIN TS 640 workpiece probing system with wireless transmission, dual ROTOCLEAR viewing windows, chip conveyor, high-pressure spindle cooling system with paper filter, and integrated oil mist extraction system.
Axis travels: X 2,200 mm (or 2 areas of 850 mm each with partition installed), Y 560 mm, Z 720 mm, with a 2,600 x 600 mm worktable with a load capacity of up to 2,200 kg and a rotary table (with the option of vertical or horizontal mounting) with a diameter of 550 mm; B-axis movement (tilting head): +/-100° continuous, C-axis movement: 360° continuous, HEIDENHAIN i-TNC 530 CNC, built in 2007, CE compliant.
Machine in excellent condition with approximately 17,000 spindle hours.
