| Manufacturer | CONVEQ |
|---|---|
| Model | Slitter Rewinder Maxi Slit 1850 |
| Year | 2024 |
| Location | Mexico
|
Manufacturer: CONVEQ
Model: Slitter Rewinder Maxi Slit 1850
Year of manufacture: 2024
Technical condition: like new
Type of material: Paper
Working width: 1850.0 mm
Dimensions (L×W×H): 8450.0 × 6800.0 × 3500.0 mm
Weight: 8973.0 kg
Overview:
The CONVEQ Maxi Slit 1850 is a slitter-rewinder designed for paper converting with a 1850 mm working width. The machine is described as like new and configured for shaft-less unwinding, web alignment, shear-type slitting, and motorized rewinding with tension and diameter control.
Key functional features (from specification):
- Unwinder: shaft-less design allowing floor-level reel loading and dual rotation directions; pneumatic-mechanical chucks secure reels.
- Rollers and alignment: aluminum rollers and an automatic web aligner using edge detection for centering the master reel.
- Tension and drive control: AC motors, load cells, and diameter calculation for unwind tension control.
- Cutting group: shear-type slitting group with 14 circular blades, pneumatic supports, and a quick-change counter-blade shaft. Individual slitting/actuator modules are employed.
- Cut handling: curved rollers and suction nozzles for cut separation and scrap removal.
- Rewinding: steel, molybdenum-coated presses and motorized tips for automatic reel positioning; pneumatically operated steel pressure roller with proportional valve for setting pressure; a pneumatic clamp and two AC motors for tension balance. Rewinding torque is adjustable from the operator panel.
- Discharge and safety: hydraulic shovel and pusher for reel discharge and a safeguarded area with barrier protection.
- Control and automation: vector drives (SIEMENS), PLC communication, proprietary software, and a touch terminal for operator access.
Visible components and accessories (observed):
- Free-standing operator control pedestal with touchscreen and push buttons.

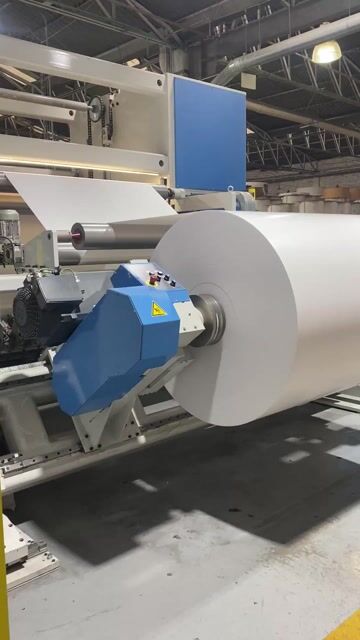

- Shaft-mounted parent roll with blue motorized end-holder assemblies on both sides for the shaft.
- Slitting section with multiple circular slitting discs/knives and a row of individual slitting/actuator modules with pneumatic tubing and electrical cabling.
- Upper roller assembly and pressure/idler rolls guiding the paper web.
- Front hinged safety guard with yellow-black hazard striping and yellow triangular warning stickers on housings.
- Emergency stop/control box mounted on the machine frame and large blue vertical side panels forming the main frame.
Notes and cautions:
- Descriptive technical functions and component details are taken from the provided specification and visible components. No statements regarding testing, operational status, or warranties are made beyond the listed technical condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer title: Slitter rewinder Maxi Slit 1850
Manufacturer: CONVEQ
Model: Slitter Rewinder Maxi Slit 1850
Year of manufacture: 2024
Technical condition: like new
State: in production
Dimensions: Length 8450.0 mm, Width 6800.0 mm, Height 3500.0 mm
Weight: 8973.0 kg
Working width: 1850.0 mm
Type of material: Paper
Unwinder: A shaft-less unwinder allows floor-level reel loading and dual rotation directions. Pneumatic-mechanical chucks secure the reels.
Rollers and alignment: Aluminum rollers enhance durability and lightness. An automatic web aligner centers the master reel using edge detection.
Tension and cutting control: AC motors, load cells, and diameter calculation control unwind tension.
Cutting group: The shear-type cutting group features 14 circular blades with pneumatic supports and has a quick-change counter-blade shaft.
Curved rollers and suction nozzles: Curved rollers and suction nozzles manage cut separation and scrap removal.
Rewinding: Steel, molybdenum-coated presses ensure longevity. Motorized tips enable automatic reel positioning.
Rewinding control: A steel pressure roller - pneumatically operated with a proportional valve - sets pressure. Rewinding torque is managed via operator panel controls. A pneumatic clamp and two AC motors balance tension.
Discharge and safety: A hydraulic shovel and pusher facilitate reel discharge. The area is secured by a safety barrier.
Control and automation: AC motors and vector drives (SIEMENS) with proprietary software handle diameter calculation and torque control. All functions are accessible via a touch terminal with PLC communication.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
