14,500 €
Make an offerContact us to receive an offer.
| Axis X | 1600 mm |
| Axis Y | 1600 mm |
| Axis Z | 630 mm |
| CNC | elexa |
| Table length | 1630 mm |
| Table width | 650 mm |
| Number of tool pockets | 30 |
| Spindle taper | iso 40 |
| Max. spindle speed | 18000 rpm |
| Spindle motor power | 36 kW |
| ------------------- | |
| Length x width x height | 1600.0 × 1600.0 × 630.0 |
| worked hours | |
| hours under power | |
| state | excellent |
| At local norms | --------- |
| status | visible |
| Datasheet | Cb Ferrari D21 |
| Last availability date | 22/04/2026 |

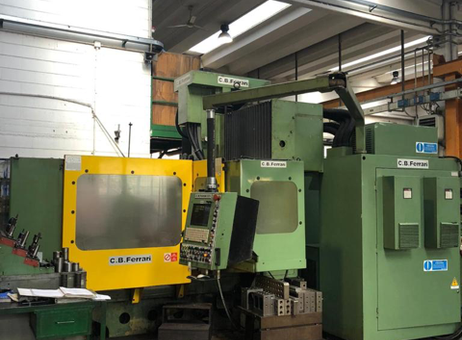

The C.B. Ferrari D21 is a five-axis machining center designed for precision milling tasks. Manufactured in 1998, this model features a robust working envelope with travel dimensions of 1600 mm in the X-axis, 1600 mm in the Y-axis, and 630 mm in the Z-axis. It is equipped with a continuous tilting head capable of rotating between -90° and +90°, enhancing its versatility for complex machining operations.
The spindle operates at a maximum speed of 18,000 rpm and uses an ISO 40 tool interface. The machine includes a 30-place tool magazine, allowing for efficient tool changes during production. The machining table measures approximately 2000 x 800 mm and is fitted with clamping fixtures to secure workpieces during operation.
This machining center is outfitted with internal and external coolant systems that utilize water and air to ensure optimal cutting conditions. Protective bellows cover the moving parts to safeguard against contaminants and prolong machine life.

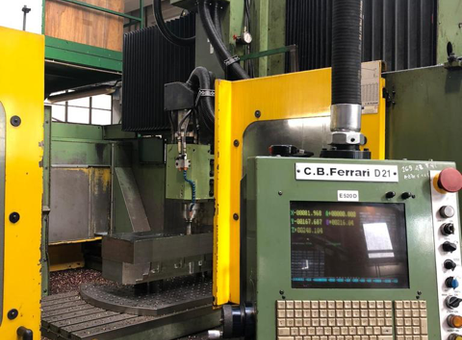

The control panel is mounted on the side of the machine and includes a screen, keyboard, and multiple buttons and switches, facilitating user-friendly operation. A large electrical cabinet is attached to the right side of the machine, housing the necessary electronic components.
The machine appears clean and well-maintained, with no visible damage, and is situated in an organized environment. Tool holders and tools are visible on a nearby table, indicating readiness for use.
Overall, the C.B. Ferrari D21 machining center combines a spacious working area with advanced five-axis capabilities and a comprehensive tool magazine, making it suitable for a wide range of precision milling applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Five-axis milling machines d21
Internal/external coolant water/air 18000rpm iso 40 with 30 spindles included X1600 Y1600 Z 630
30 place tool changer Spare parts C.B. FERRARI D21 and spare parts C.B. FERRARI A15 with ELEXA numerical control
Electronic boards and machine components ut
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
| Client type | Factory – small or medium company |
| Active since | 2026 |
| Offers online | 1 |
| Last activity | April 22, 2026 |
